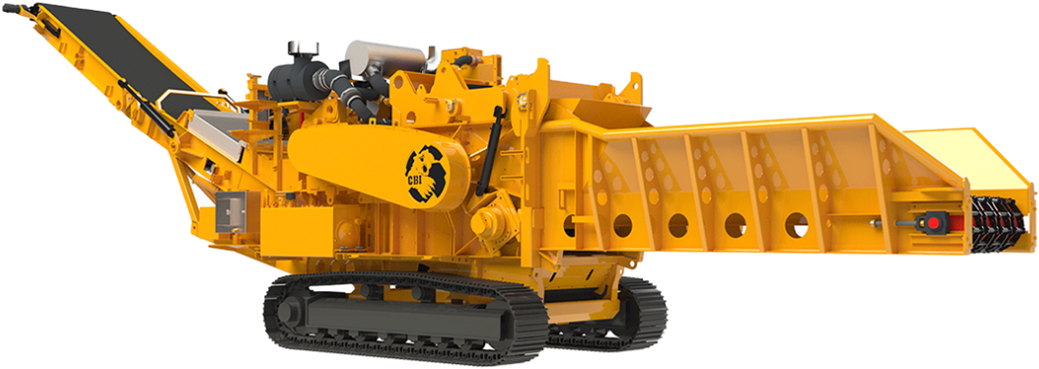

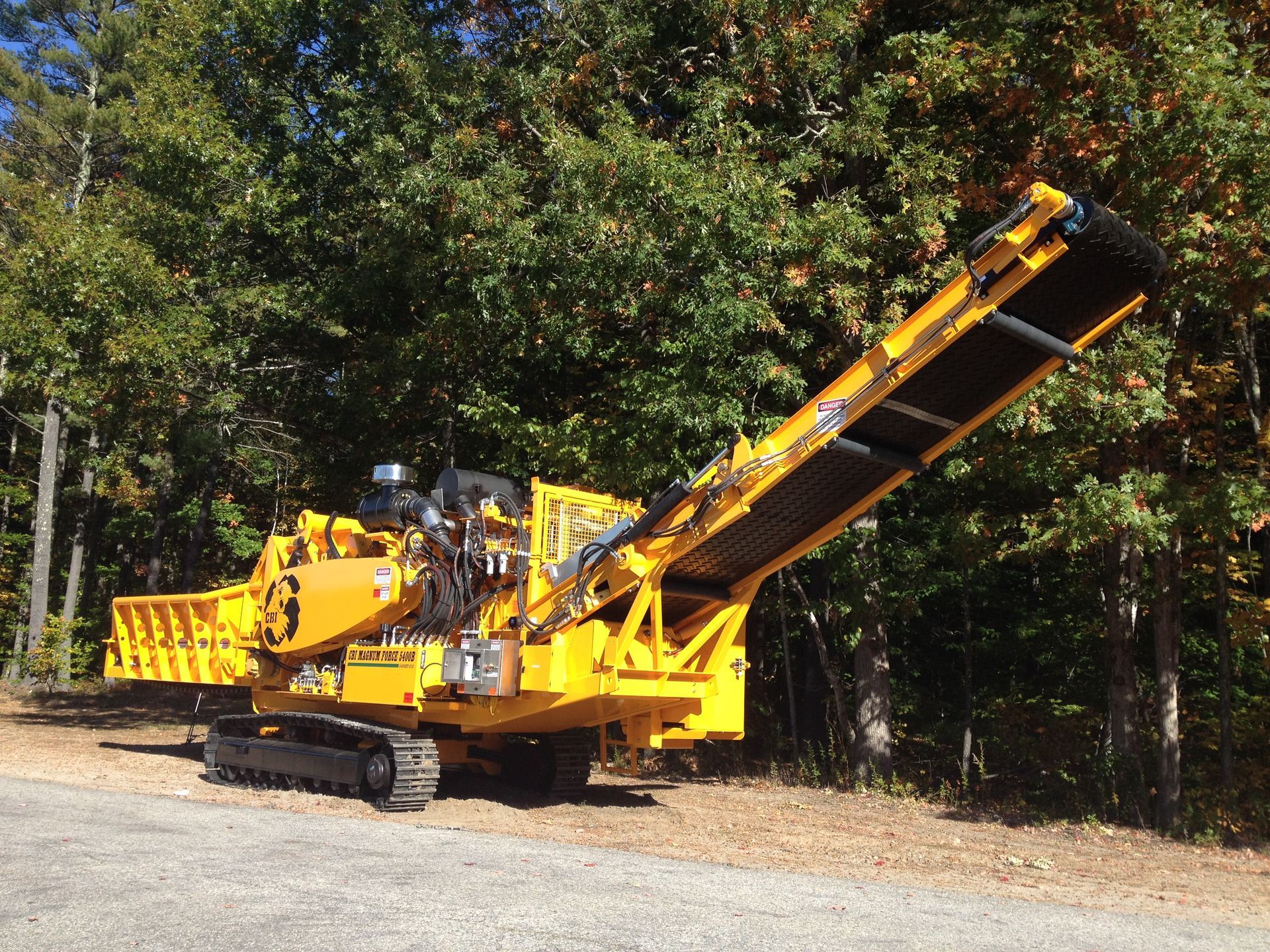

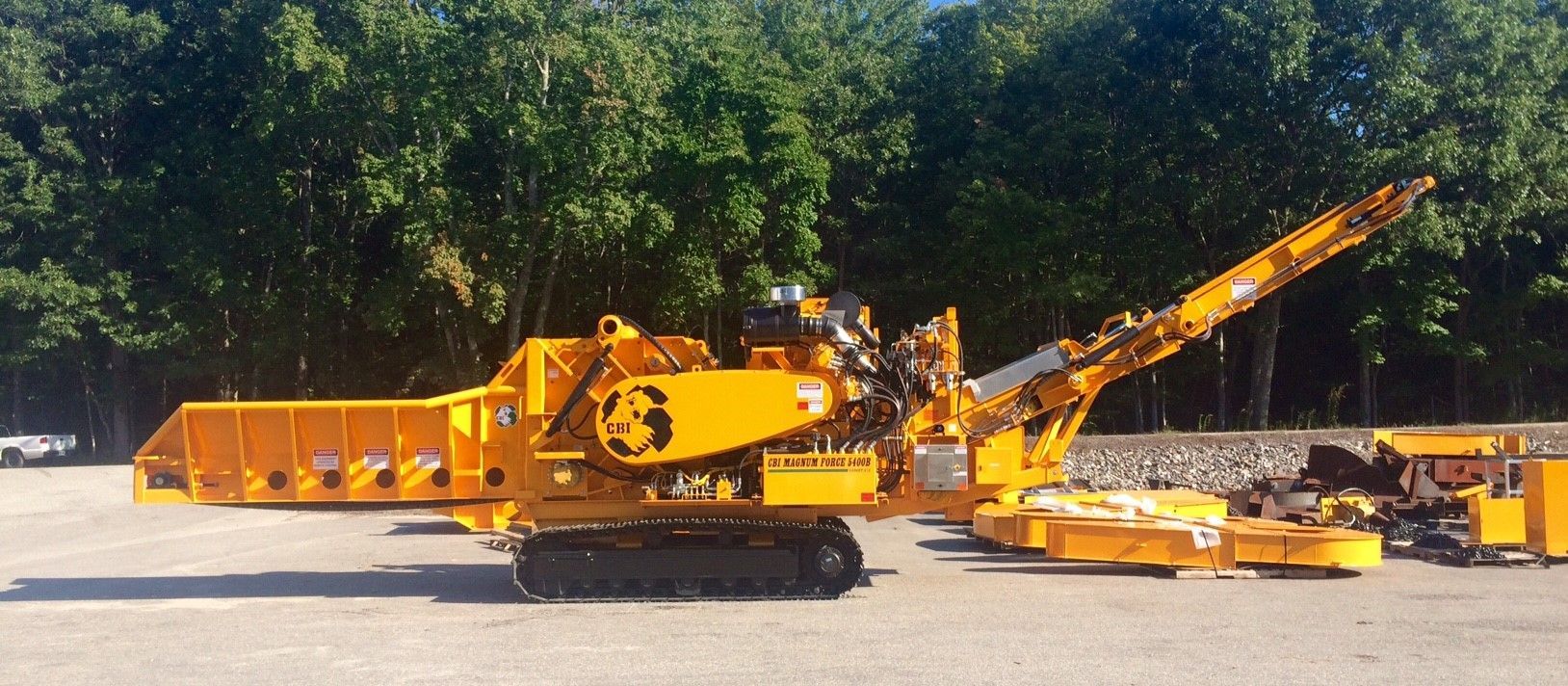

5400BT Horizontal Grinder

Overview

The CBI Magnum Force 5400BT is one of the latest offerings in the next generation of grinders, where owners can select from four different field-swappable rotors to accommodate changing materials and processing demands. This unique design provides the flexibility to process an exceptionally wide variety of materials and generate the products that clients demand--all with a single machine.


To further its unique design, the PT Tech hydraulic PTO and hydraulic engagement replaces the need for a clutch.


You can go from making high-quality mulch from trees and stumps, to chipping stemwood into chips in custom sizes ranging from a constant 1/8” fiber length to constant 1”-3/4” fiber length. Machine operators can also grind highly-contaminated C&D or railroad ties by swapping rotors and screens. This unbelievable versatility guarantees that you will always have the right machine for the job when the market demands change and opportunities come knocking.


The CBI 5400BT gives you more bang for your buck and a better return on your investment. With the push of a button, the unique design of the hog box provides service-friendly, full access for easy daily maintenance (say “goodbye” to scraped knees, sore backs, and banged heads). This feature offers a direct line to lift and remove screens, and greatly simplifies rotor removal through the top of the machine. The screen has been specially designed to be easily removed by unbolting the support plate and pulling the screen out without having to remove the screen frame. The hog chamber has a heavy-duty reinforced housing with 100% continuous welds for strength and corrosion resistance.

features

  • Horizontal Grinder
  • Backed with Aftermarket support

applications

  • This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more.
  • This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more.
  • This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more.

TEchnical specifications

  • Width: 48” (1,219mm)
  • Length: 36’ (10,972mm)
  • Height: 15’ - 10” (4,826mm)
  • Discharge belt includes magnetic head pulley and chute

  • Width: 48” (1,219mm)
  • Height: 72” (1,828mm)
  • Conveyor: 16’-0” (4,876mm), 4 strands heavy-duty drag chain

  • Hydrostatic
  • Hydraulic capacity 60 gallons (227 L)

  • Reversing pitch radiator fan that reverses airflow automatically

  • Metal Detection SystemTM (MDS)
  • (2) emergency shutdowns

  • Variable speed system

  • D5S 500mm triple grouser

  • 350 gallons (1325 L)

  • Length: 11.5m
  • Width: 3.6m
  • Height: 2.5m
  • Weight: 34,400kg
