Cobra 290R Impactor

Overview

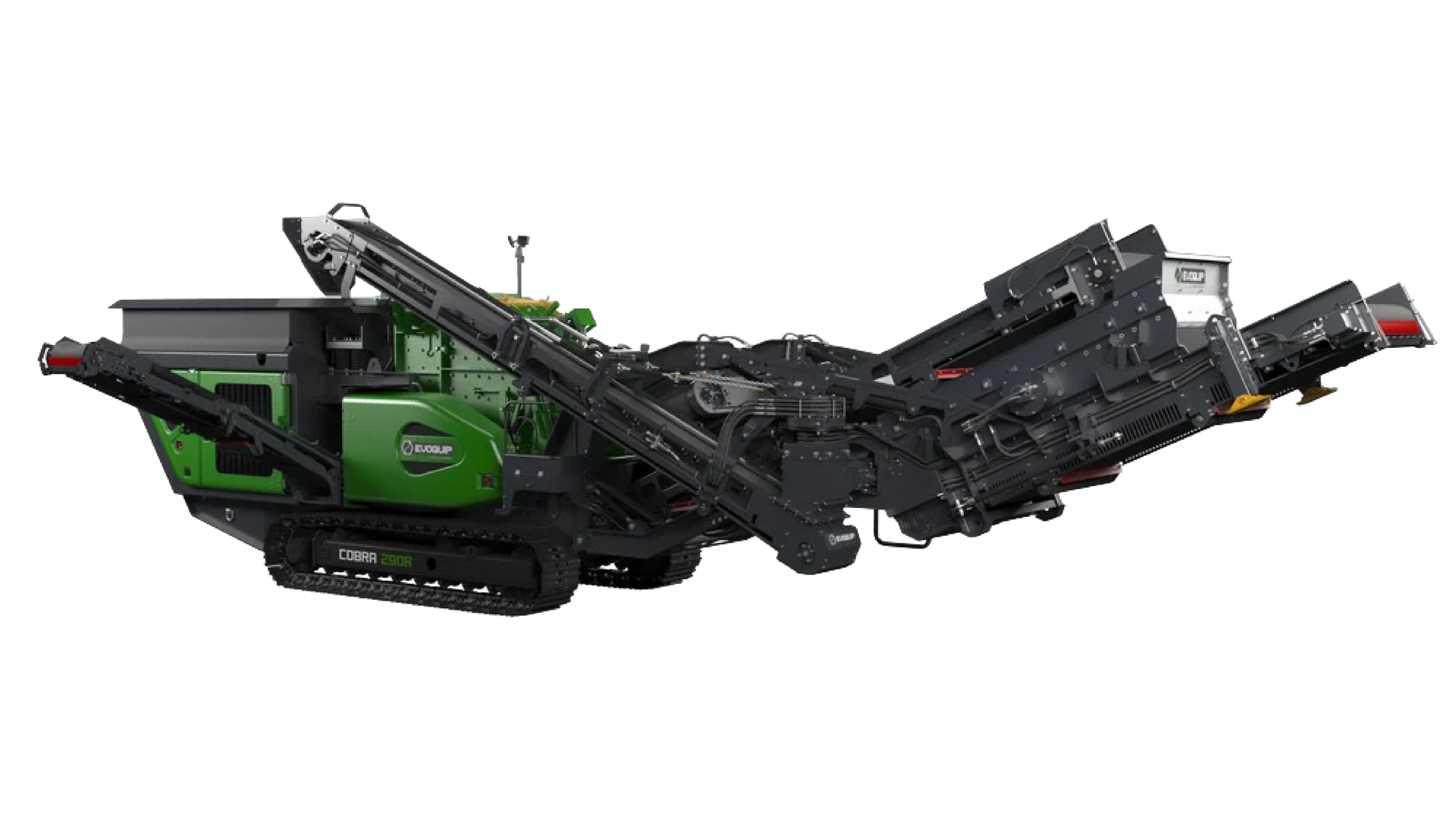

The Cobra 290R is a versatile and easy to use Track Mounted Impact Crusher that can operate in the most demanding of applications such as Reinforced Concrete, Recycled Asphalt, Construction and Demolition waste and Natural Rock. The integrated After screen system on the Cobra 290R Track mounted Impact Crusher ensures the required product specification is achieved with oversize material either being recirculated back to the Crusher or else stockpiled.


The Cobra 290R Impact Crusher is available with the wind sifter as an option, providing the ideal solution to remove contaminants such as plastic and wood from crushed C&D waste based on density and size.

features

  • Impact Crusher
  • Compact Design for ease of transportation
  • High Output Potential up to 290tph / 320 US tph
  • Backed with OPS's Aftermarket Services and support

applications

  • Reinforced Concrete
  • Recycled Asphalt
  • Construction
  • Demolition Waste
  • Natural Rock

TEchnical specifications

  • 3.3m3(4.3yd3) Hopper capacity
  • Integrated pre-screen for fines removal
  • Feeder speed auto-regulates depending on crusher load

  • 1030mm (41”) x 790mm (31”) crusher inlet
  • 1000mm (40”) x 1034mm (41.5”)
  • Max OSS – 150mm (6”) upper, 75mm (3”) lower
  • Min CSS – 50mm (2”) upper, 20mm (3/4”) lower
  • 2 high / 2 low configuration as standard
  • Hydraulic adjust and hydraulic overload as standard

  • 2.74m x 1.5m (9’x5’) single deck screen
  • Wide range of screen media
  • Side tensioned
  • Screen can be lowered to horizontal to ease mesh change and maintenance

  • Tier 3 Equivalent: Volvo D8 235 kW (315hp)
  • Tier 4 Final: Volvo D8 235kW (315Hp)
  • Stage V: Volvo D8 235kW (315Hp)
  • Direct drive to crusher via clutch and V belts

  • Up to 290tph / 320 US tph

  • 1000mm (40”) Wide product conveyor
  • 500mm (20”) Wide side conveyor (option)
  • Side conveyor (option) discharge height 2.48m (8’2”)
  • 500mm (20”) Transfer conveyor
  • 500mm (20”) Oversize conveyor with Recirc & Stockpile.
  • 1200mm (47”) Fines conveyor with 3m (9’10”) discharge

  • Intuitive ‘Push button’ control system
  • Afterscreen system is quick to detach

  • Length: 14.76m (48’ 5”)
  • Width: 2.9m (9’ 6”)
  • Height: 3.16m (10’ 4”)
  • Weight (with Magnet):

ㅤㅤㅤ•Tier 3: 34,200kgs (75,398lbs)

ㅤㅤㅤ•Tier 4F: 34,200kgs (75,398lbs)
