HF10T Hopper Feeder

Overview

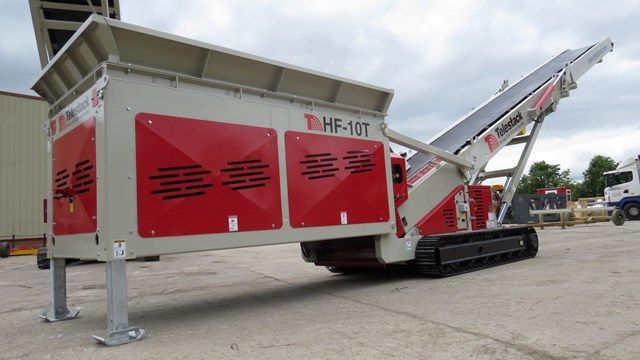

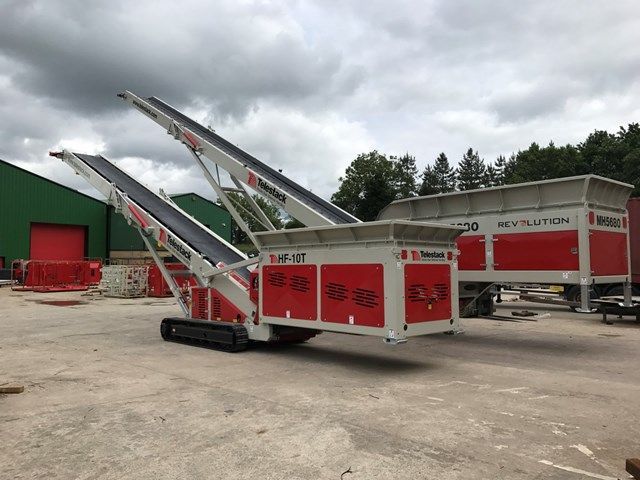

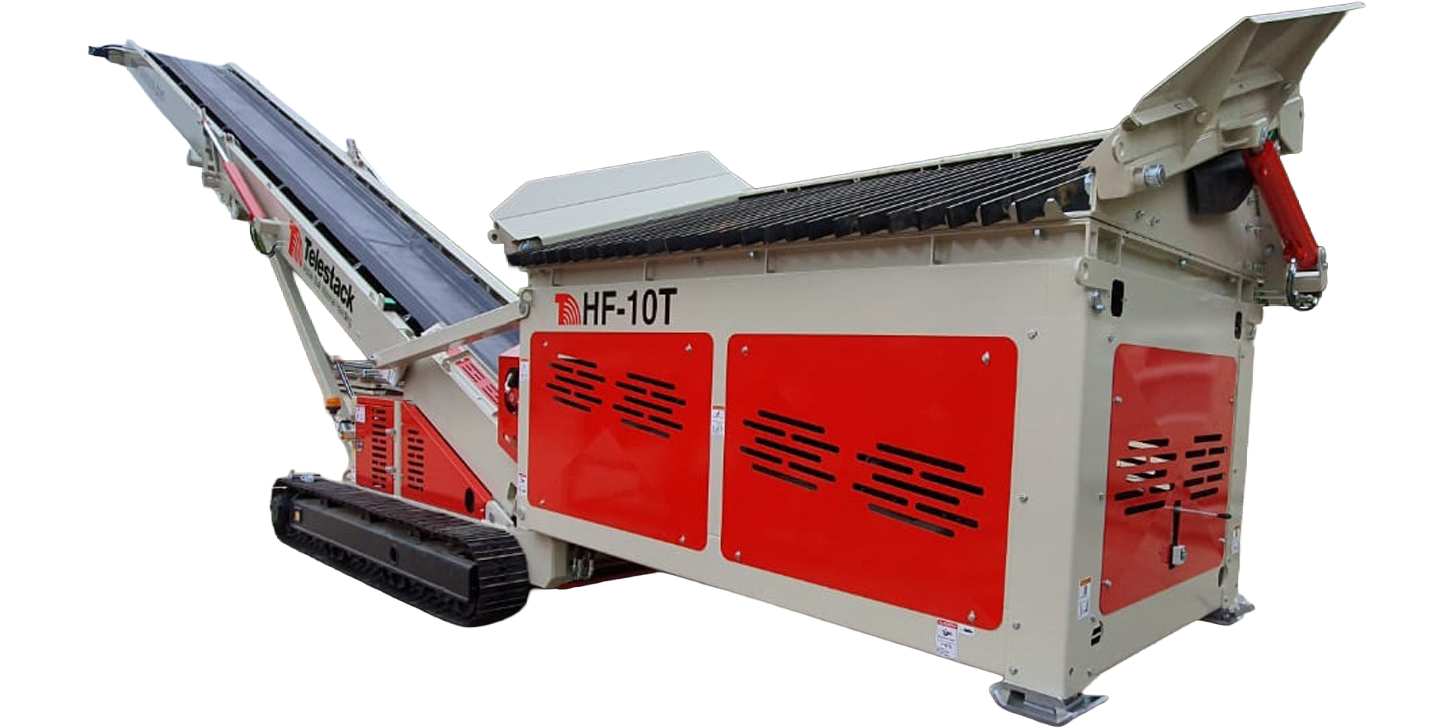

The HF 10T is a track-mounted fully mobile conveyor designed to work at production rates of up to 300 tph (350 tons per hour). Telestack's Tracked Hopper Feeder Range is designed to be loaded directly from wheel loaders, grab cranes, excavators, etc. It can feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons, etc. Since the hopper feeder is track-mounted, the unit has excellent mobility on-site and eliminates double handling of material, which reduces overall costs for the operator.

features

  • Hopper Feeder
  • Output Potential 300 tph (330 Ton/hr)
  • Backed with OPS's Aftermarket Services and support

applications

  • This is paragraph text.

TEchnical specifications

  • Direct loading from wheel loaders, grabs, and excavators
  • Stockpiling materials from secondary crushers and screens
  • Building stockpiles in warehouses
  • Loading vessels and barges directly from wheel loaders or grab cranes
  • Feeding auxiliary Telestack equipment
  • Feeding fixed equipment
  • Reclaiming and discharging onto overland conveyor systems
  • Mobile reclaim hopper for feeding onto Stacker/Reclaimer belt

  • Throughput of up to 300 tph (330 Ton/hr)
  • Hopper with 300mm (12") tapered extensions, achieving a 6.8 m3 (8.9 yds3) capacity as standard
  • Maximum distance between tracks and head drum for optimum stockpiling capacity
  • Maximum lump feed size of up to 100mm (4")
  • Front and rear adjustable telescopic features to obtain the desired discharge height
  • Engine protection shutdown system
  • Natural design of the hopper provides integral strength and stability in the working position
  • Folding head section for ease of transport
  • Paint specification: Cream - RAL 7032, Red - RAL 3001
  • Various options available

  • Fuel cost reduction of up to 75%
  • Operating cost reduction of up to 70%
  • Decreased loading shovel movements, leading to lower operating costs and improved safety
  • Enhanced safety by eliminating the need for stockpiling with wheel loaders
  • Reduced screener idle time, resulting in increased production
  • Decreased face excavator idle time, leading to increased production
  • Production rates of up to 300 tph (330 Ton/hr)
  • Range of hopper capacities available based on application and production rate
  • Hydraulic folding head section for compact road transportation
  • Can be packed into a single 40ft container for easy and cost-effective global transport
  • Unmatched mobility and flexibility during operation
  • High-specification machine designed for ease of maintenance and excellent resale value at project conclusion
