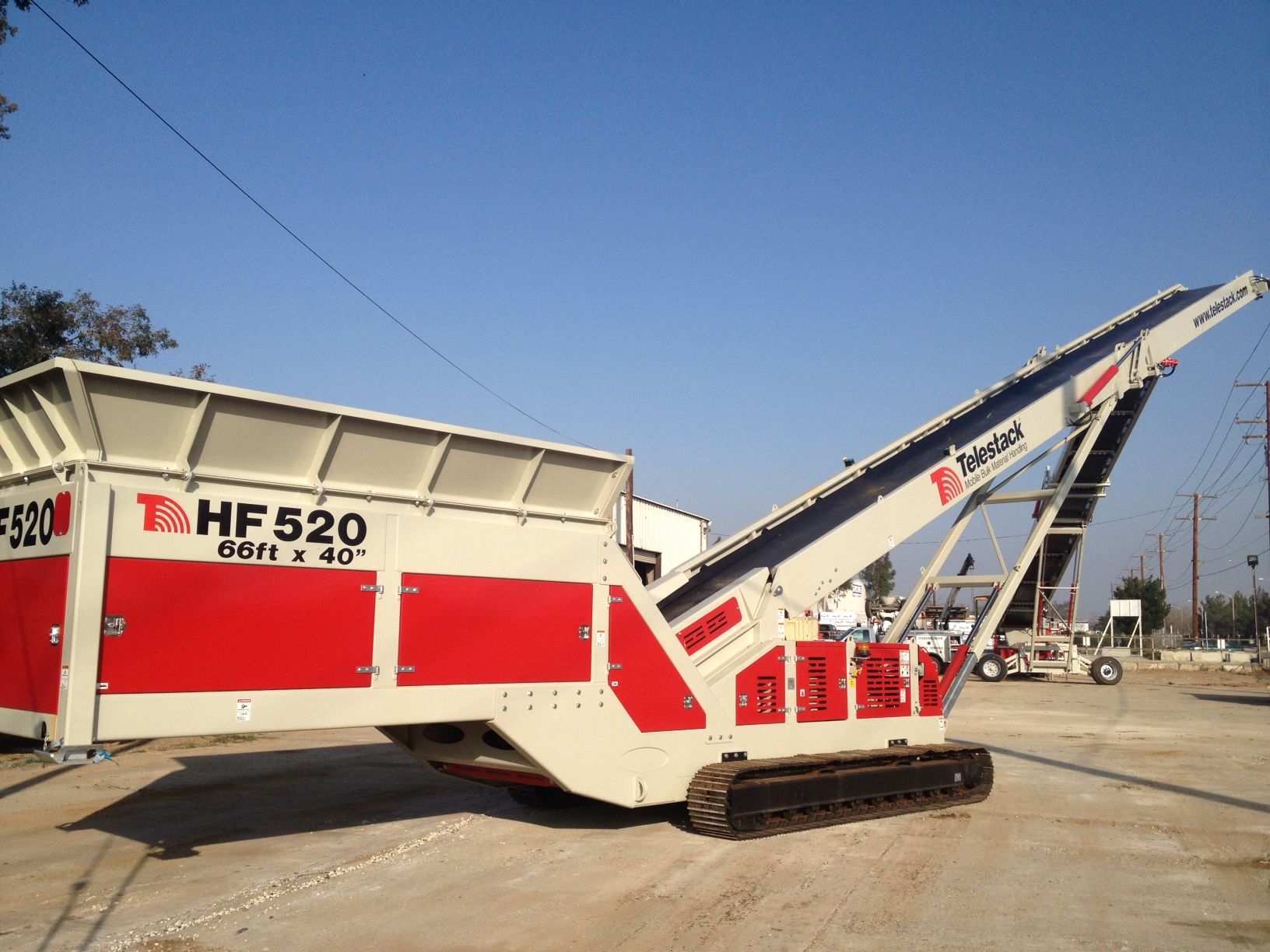

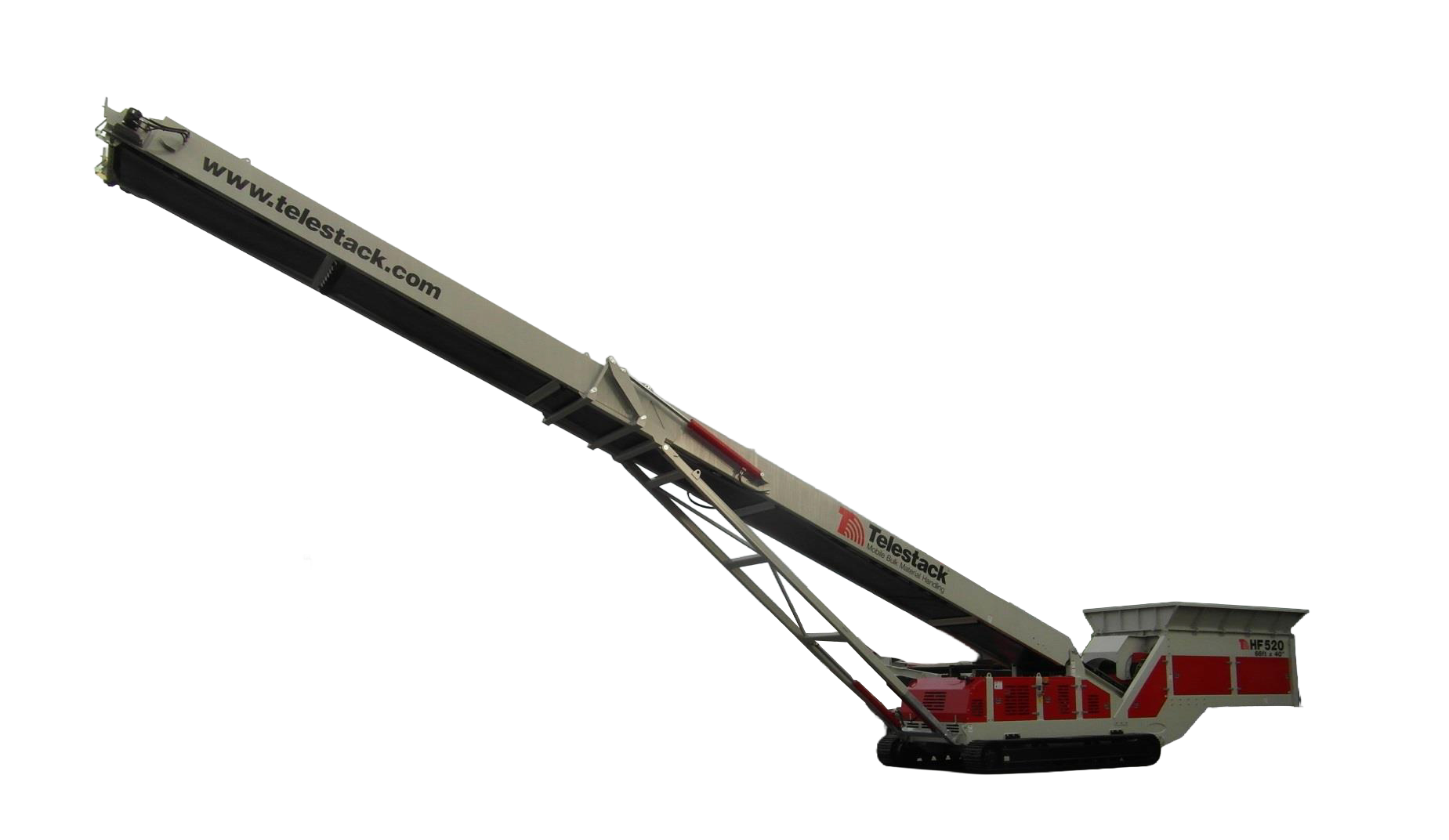

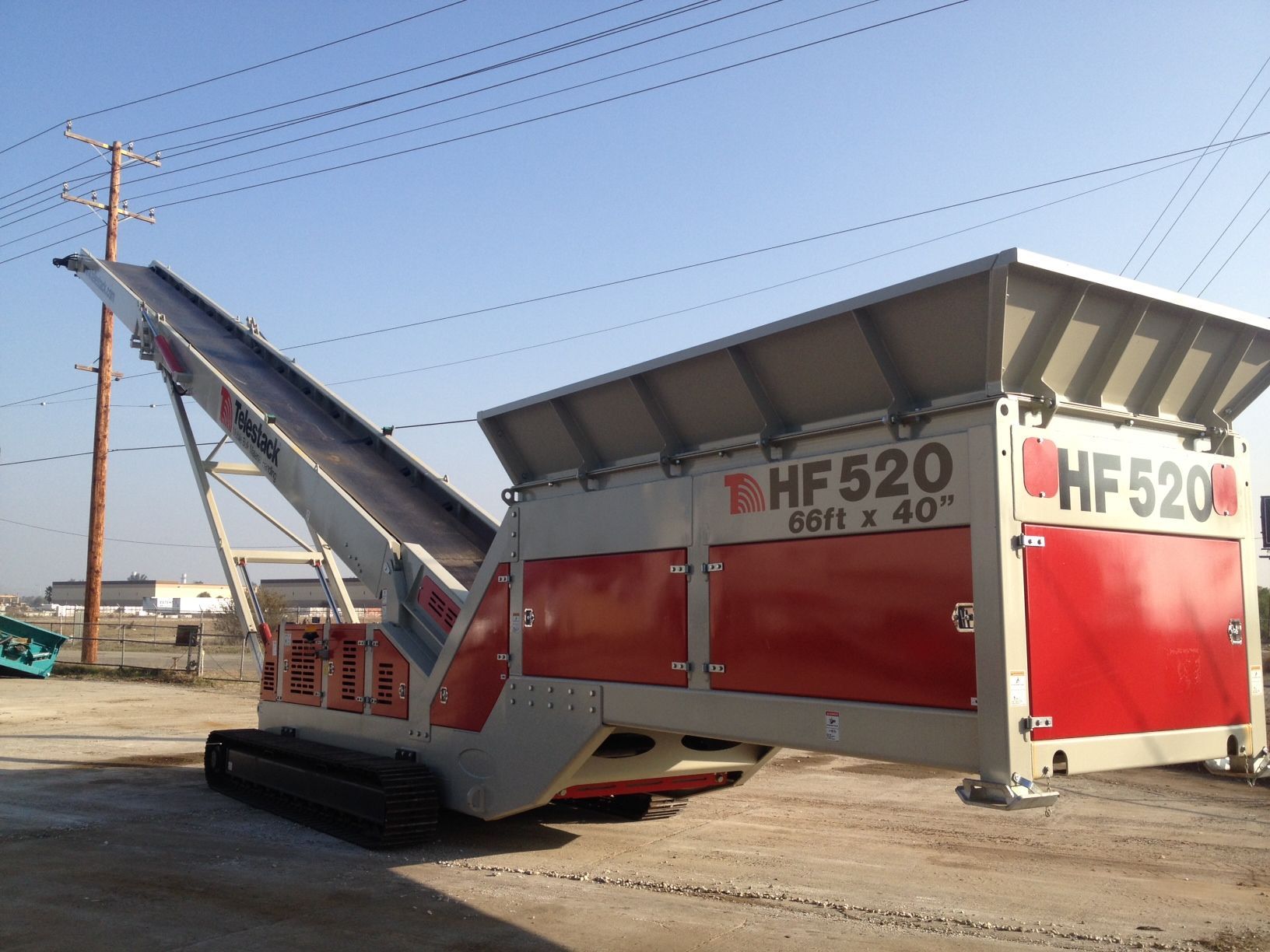

HF520 Hopper Feeder

Overview

The HF 520 is a track-mounted fully mobile conveyor designed to work at production rates of up to 500tph (550 tons per hour). Telestack's Tracked Hopper Feeder Range is designed to be loaded directly from wheel loaders, grab cranes, excavators, etc.), feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons, etc. Since the hopper feeder is track-mounted, the unit has excellent mobility on-site and will eliminate double handling of material, which reduces overall costs for the operator.

features

  • Hopper Feeder
  • Output Potential 500 tph (550 Ton/hr)
  • Backed with OPS's Aftermarket Services and support

applications

  • This is paragraph text.

TEchnical specifications

  • Directly from wheel loaders, grabs, and excavators
  • Stockpiling from secondary crushers and screens
  • Building stockpiles in warehouses
  • Loading vessels and barges, directly from wheel loaders or grab cranes
  • Feeding auxiliary Telestack equipment
  • Feeding fixed equipment
  • Reclaiming and discharging onto overland conveyor systems
  • Mobile reclaim hopper, feeding onto Stacker/Reclaimer belt

  • High throughput of up to 400 tph (440 Ton/hr)
  • Maximum distance between tracks and head drum for optimum stockpiling capacity
  • Maximum lump feed size of up to 75mm (3")
  • Front and rear adjustable telescopic features to obtain the desired discharge or feed-in height
  • Engine protection shutdown system
  • Counterweight built into the feed boot area to provide integral strength and stability in the working position
  • Folding head and tail sections for ease of transport
  • Paint specification: Cream - RAL 7032, Red - RAL 3001
  • Various options available

  • Fuel cost reduction of up to 75%
  • Operating cost reduction of up to 70%
  • Reduced loading shovel movements, resulting in lower operating costs and improved safety
  • Increased safety as there is no need to stockpile with wheel loaders
  • Decreased screener idle time, leading to increased production
  • Reduced face excavator idle time, resulting in increased production
  • Production rates of up to 500 tph (550 Ton/hr)
  • Range of hopper capacities available depending on application and production rate
  • Hydraulic folding head section for compact road transportation
  • Can be packed into 40ft containers for easy and cost-effective global transport
  • Unmatched mobility and flexibility during operation
  • High-specification machine designed for ease of maintenance, commanding an excellent resale value at project conclusion
  • Heavy-duty design and manufacture
