Origin C2000 Tracked Stockpiler

Overview

Introducing the ORIGIN range from Telestack – an entry-level range of products that embodies the original Telestack ethos – reliable design and good workmanship - but without the extras. Although more basic in design, the Origin range maintains the ability to achieve an impressive stockpiling ability and is ideal for working after a screen in crushed aggregate, sand, or topsoil applications.

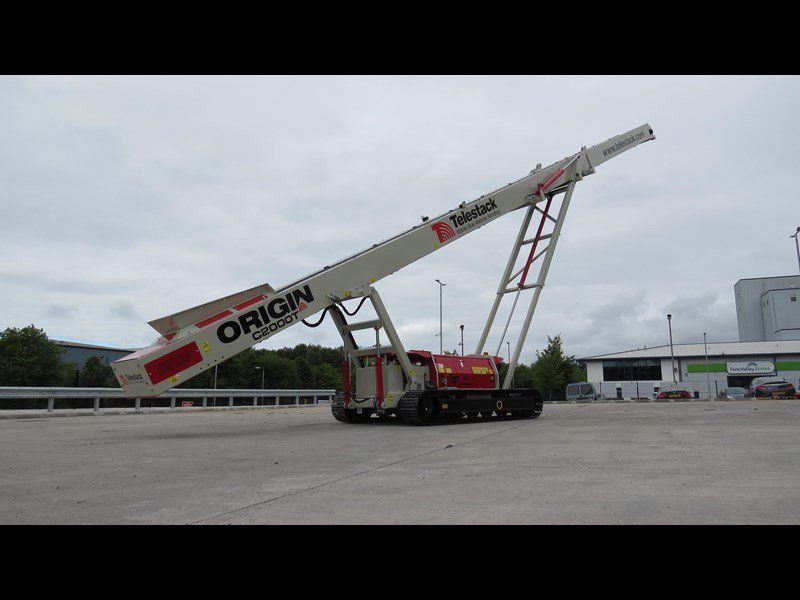

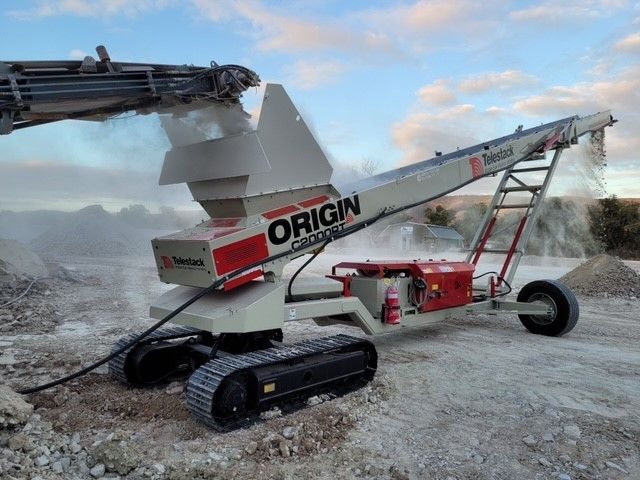

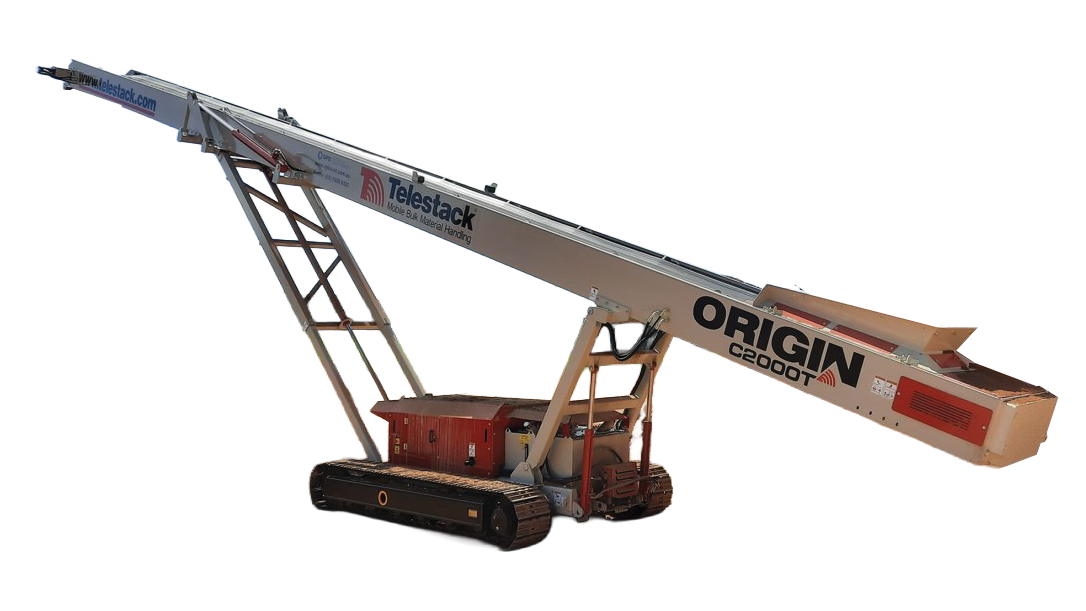

The ORIGIN C2000T is a track-mounted fully mobile stockpiling conveyor. Powered by a diesel engine, it is self-contained and offers excellent stockpiling capacity. As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their onboard conveyors to increase in size and length to cope with higher tonnages. Track conveyors fulfil this need by providing a much larger stockpile capacity and, at the same time, improve plant mobility by removing material from the processing equipment.

features

  • Tracked Stockpiler
  • Output Potential 300 tph (330 Ton per hour)
  • Backed with OPS's Aftermarket Services and support

applications

  • This is paragraph text.

TEchnical specifications

  • Stockpiling from secondary crushers, screens, and shredders.
  • Stockpiling crushed stone, sand, and gravel, mineral ores, mulch, woodchip/biomass.
  • Stockpiling construction and demolition waste, topsoil, coal, grain, etc.
  • Receiving crushed material and stockpiling safely over a quarry face/bench.
  • Working as part of a mobile system on short to medium-term projects.
  • Ship and truck loading.

  • High throughput with typical tonnages up to 300 tph (330 Ton per hour).
  • Maximum distance between tracks and head drum for optimum stockpiling capacity.
  • Maximum lump feed size of up to 75mm (3").
  • Front and rear adjustable telescopic sections to obtain the desired discharge or feed-in height.
  • Engine protection shutdown system.
  • Counterweight built into the feed boot area to provide integral strength and stability in the working position.
  • Folding head section for ease of transport.
  • Paint specification: Cream - RAL 7032, Red - RAL 3001.
  • Options available.

  • Reduces fuel costs by up to 75%.
  • Reduces operating costs by up to 70%.
  • Removing/reducing loading shovel movements, reducing operating costs.
  • Reduces screener idle time, increasing production.
  • Reduces face excavator idle time, increasing production.
  • Production rates of up to 300 tph (330 Ton per hour).
  • Hydraulic folding head section allowing for compact road transportation.
  • Typical setup time of under 10 minutes.
  • Hydraulic tail section height adjustment while maintaining head drum height, ensuring maximum stockpile capacity.
  • High specification machine designed for ease of maintenance, commanding an excellent resale value at project conclusion.
