Origin C2000RT Tracked Stockpiler

Download Brochure Technical Specifcations Case Studies Talk to an Expert

Overview

Introducing the ORIGIN range from Telestack – an entry level range of products that embodies the original Telestack ethos – reliable design and good workmanship - but without the extras. Although more basic in design, the Origin range maintains the ability to achieve impressive stockpiling ability and is ideal working after a screen in crushed aggregate, sand, or top soil application.

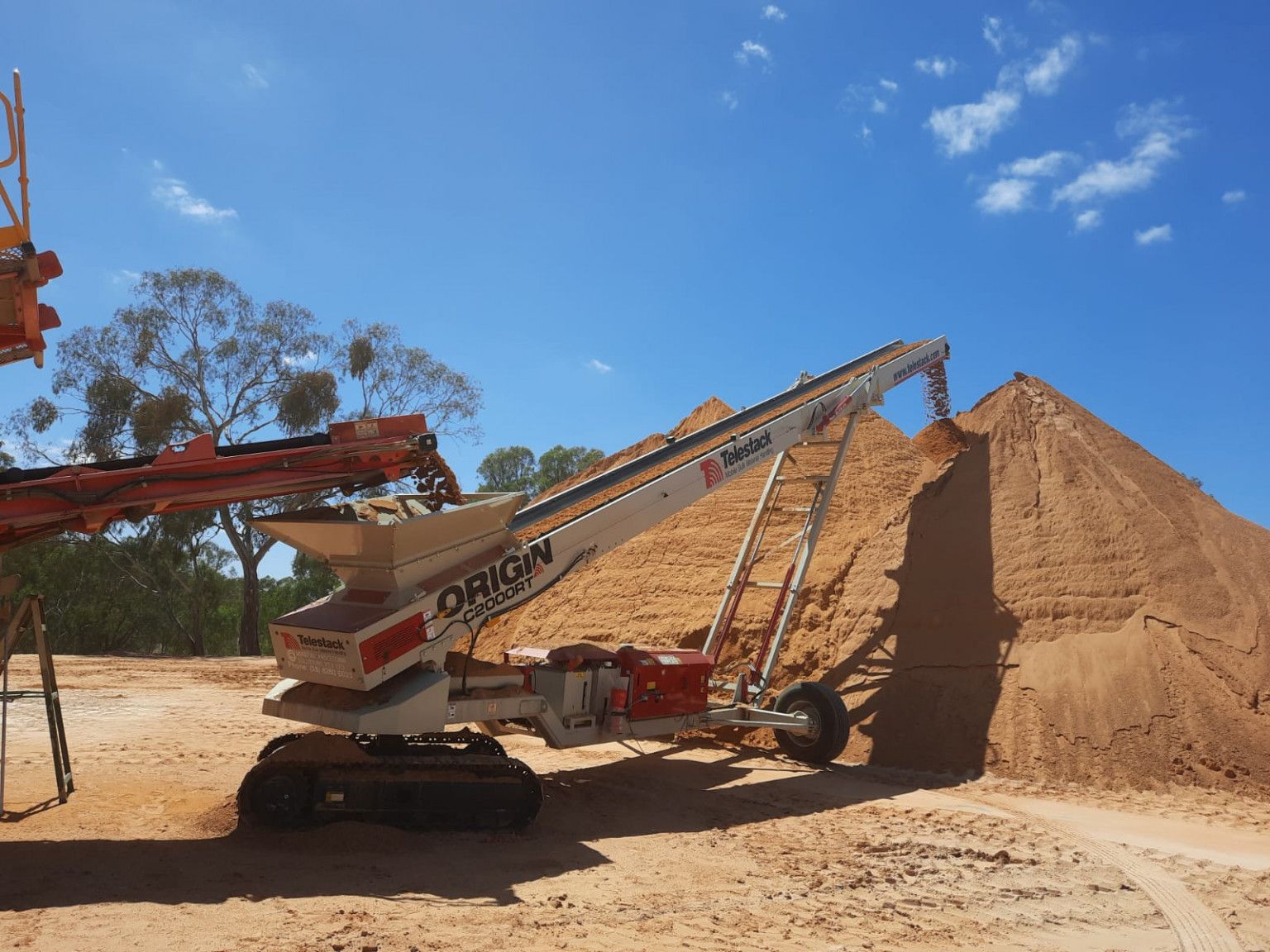

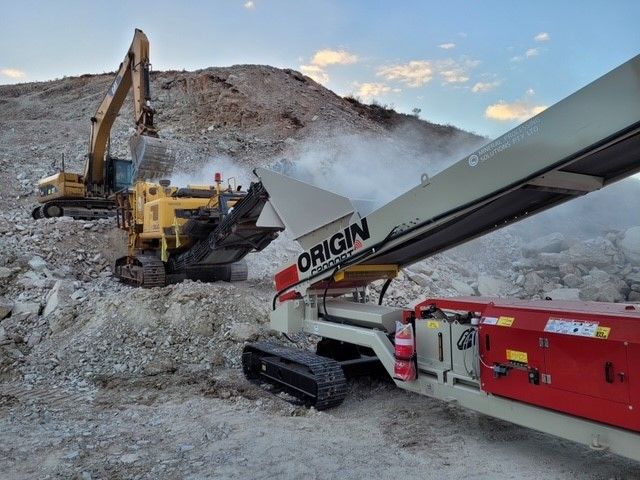

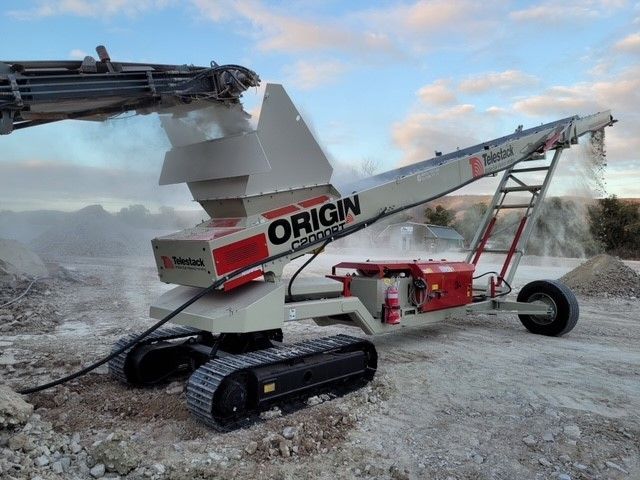

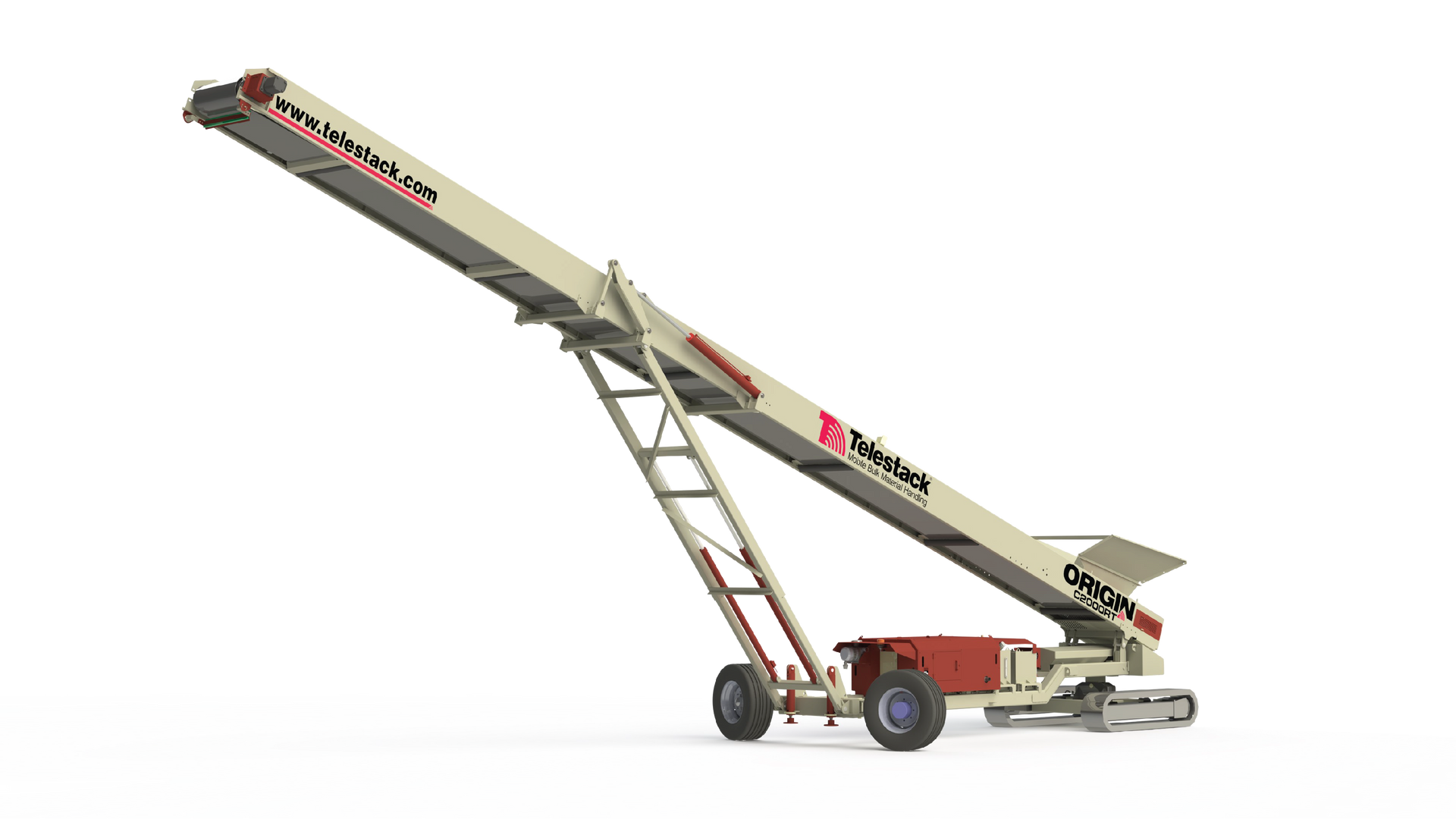

The ORIGIN C2000RT is a track mounted fully mobile radial stockpiling conveyor. Powered by a diesel engine it is self-contained and offers an excellent stockpiling capacity with its radial ability. As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their on board conveyors to increase in size and length to cope with higher tonnages. Track conveyors fulfil this need by providing much larger stockpile capacity and at the same time improve plant mobility by removing material from the processing equipment.

features

Tracked Stockpiler
70% Fuel Cost reduction
Backed with OPS's Aftermarket Services and support

applications

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more.
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more.
This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more.

TEchnical specifications

Stockpiling from secondary crushers, screens and shredders.
Stockpiling crushed stone, sand and gravel, mineral ores, mulch, woodchip/biomass.
Stockpiling construction and demolition waste, top soil, coal, grain etc.
Receiving crushed material and stockpiling safely over a quarry face/bench.
Working as part of a mobile system on short to medium term projects.
Ship and truck loading.

High throughput of up to 300 tph (330 Ton / hr)
Maximum distance between tracks and head drum, for optimum stockpiling capacity
Maximum lump feed size of up to 75mm (3")
Engine protection shutdown system
Counter weight built into feed boot area to give integral strength and stability in working position.
Radial and Conical stockpiling capabilities to reach desired capacities.
Folding head for ease of transport
Paint specification, Cream: RAL 7032, Red: RAL 3001

Removes the need for a dedicated wheel loader to constantly remove material from the crusher, screen or shredder.
Reduces fuel cost by up to 75%
Reduces operating cost by up to 70%
Removing / reducing loading shovel movements reducing operating cost.
Reduces screener idle time increasing production.
Reduces face excavator idle time increasing production.
Production rates of up to 300tph. (330 Ton per hour)
Hydraulic folding head section allowing for compact road transportation.
Typical set up time of under 10minutes.
High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion.
