RS424X

Overview

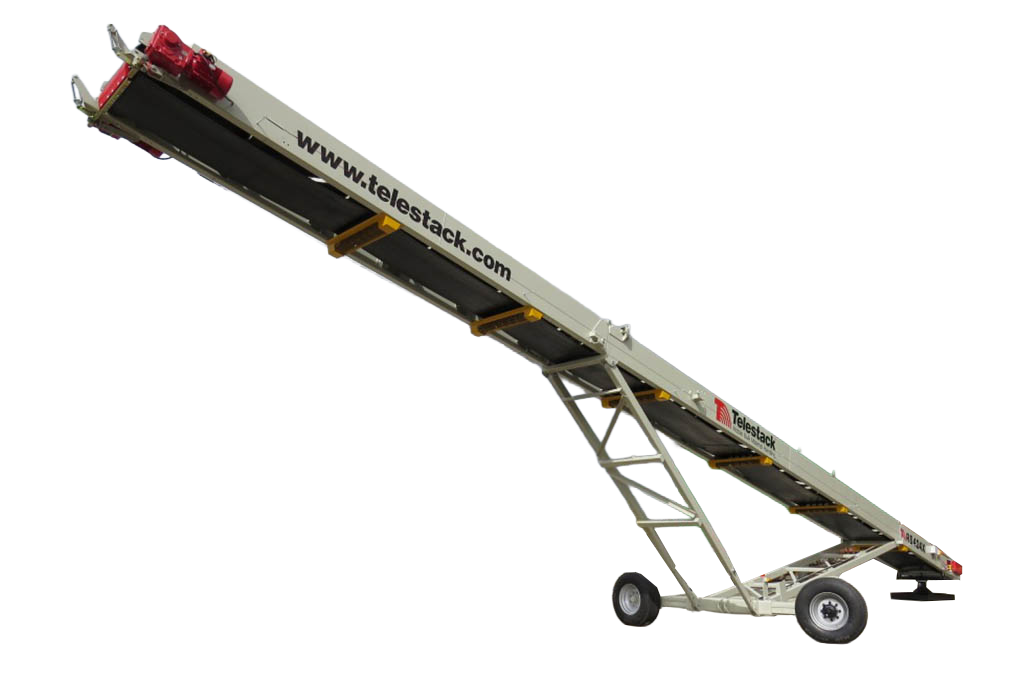

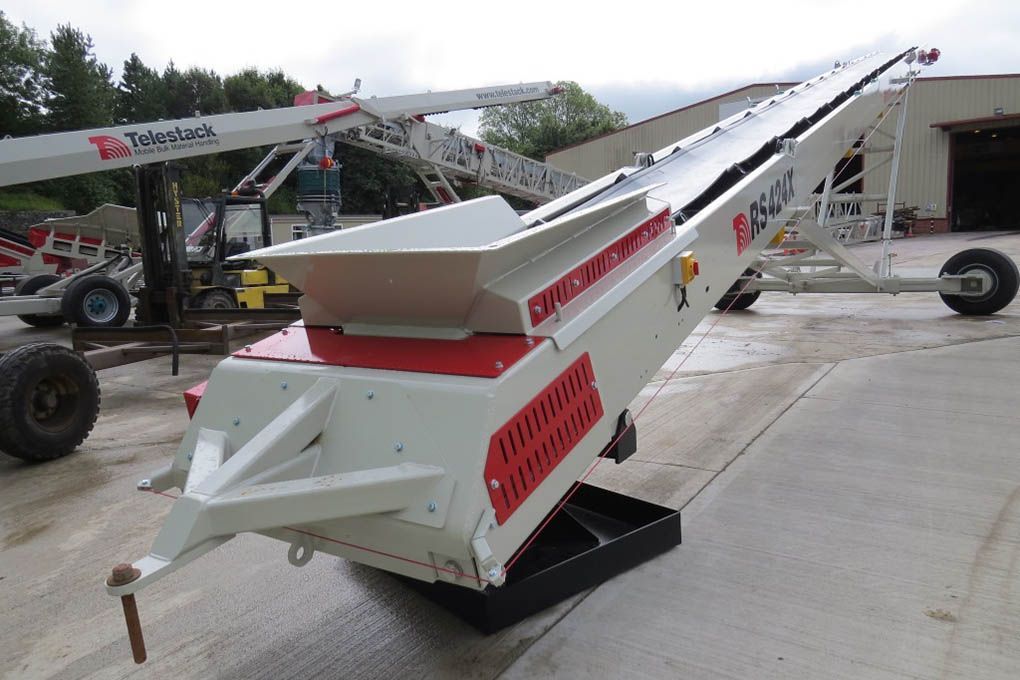

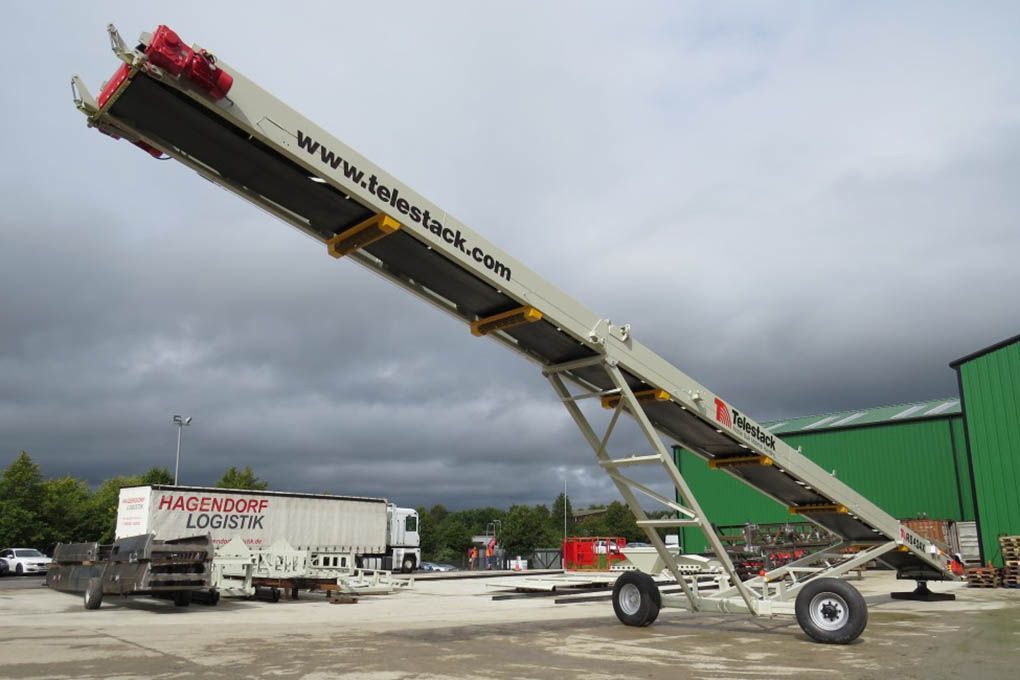

The RS 424X is a track-mounted, fully mobile conveyor designed to work at production rates of up to 400tph. As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their onboard conveyors to increase in size and length to cope with higher tonnages. Track conveyors fulfil this need by providing much larger stockpile capacity and, at the same time, improve plant mobility by removing material from the processing equipment.

features

  • Tracked Stacker
  • Output Potential 400 tph (440 Ton / hr)
  • Backed with OPS's Aftermarket Services and support

applications

  • This is paragraph text.

TEchnical specifications

  • Radial stockpiling from wash/processing/crushing and screening plants.
  • Radial stockpiling from mobile screens.
  • Radial stockpiling from various wet or air classification equipment.
  • Stockpiling construction and demolition waste, topsoil, coal, grain, etc.
  • Working as part of a mobile system on short to medium-term projects.
  • Working as part of a static system on medium to long-term projects.

  • Adjustable manual discharge height allows for variable discharge into a multiple range of machinery.
  • 2 units can be packed into 1 x 40ft container, which ensures easy and cost-effective transport around the globe. On-site assembly 2-4 days.
  • Reduces screener idle time, increasing production.
  • Typical setup time of under 10 minutes.
  • Mobility offers optimum flexibility on-site for machine application.
  • High specification machine designed for ease of maintenance, commanding an excellent resale value at project conclusion.
  • Increased stockpile capacities.
  • Minimal civils and planning permission required as it is mobile equipment.
  • Conveying material reduces dust levels, noise levels, and carbon footprint.
