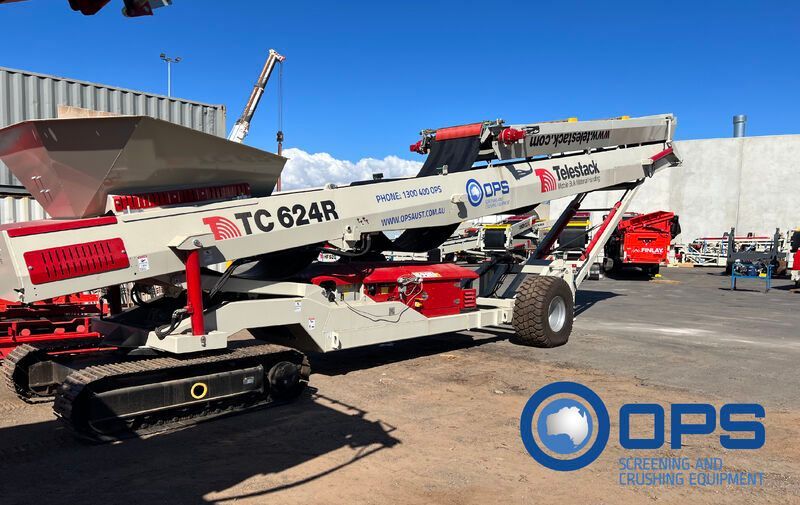

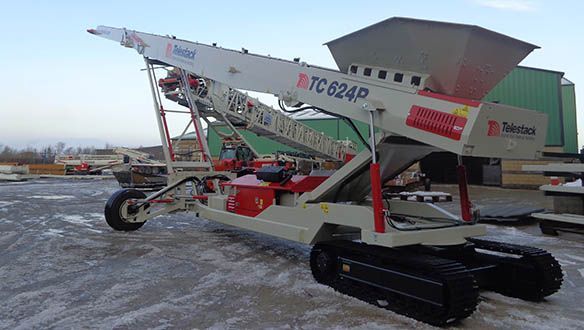

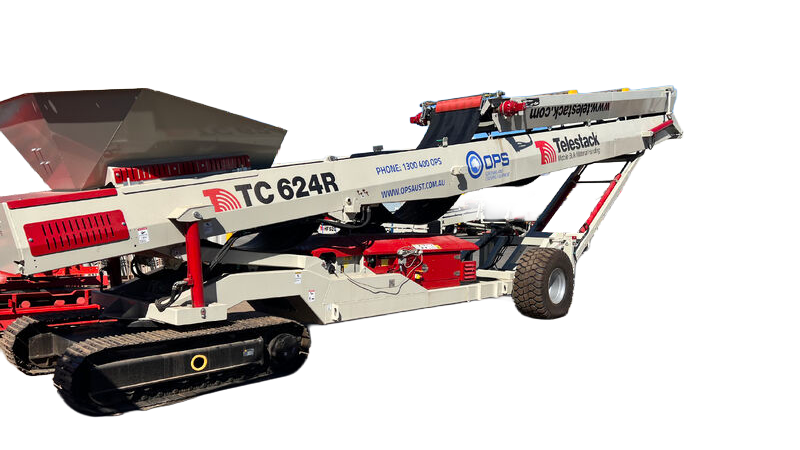

TC624R Tracked Stockpiler

Overview

The Plate Radial Stacker Range are a wheel mounted mobile conveyor. The conveyor is designed to stockpile material from secondary equipment with an optional built in radial function designed to maximise stockpile volumes. The flexibility and efficiency of this equipment means it can be used in many applications both long and short term. This versatility also means improved resale value when the project is finished as it is open to many different markets.

features

  • Tracked Stacker
  • Output Potential 600 tph (660 Ton/hr)
  • Backed with OPS's Aftermarket Services and support

TEchnical specifications

  • Stockpiling from secondary crushers, screens, and shredders.
  • Stockpiling crushed stone, sand, and gravel, mineral ores, mulch, woodchip/biomass.
  • Stockpiling construction and demolition waste, topsoil, coal, grain, etc.
  • Receiving crushed material and stockpiling safely over a quarry face/bench.
  • Working as part of a mobile system on short to medium-term projects.
  • Ship and truck loading.

  • High throughput of up to 600 tph (660 Ton/hr).
  • Maximum distance between tracks and head drum, for optimum stockpiling capacity.
  • Maximum lump feed size of up to 250mm (10").
  • Front and rear adjustable telescopic to obtain the desired discharge or feed in height.
  • Engine protection shutdown system.
  • Counterweight built into the feed boot area to give integral strength and stability in the working position.
  • Folding head and tail section for ease of transport.
  • Paint specification: Cream - RAL 7032, Red - RAL 3001.
  • Options available.

  • Removes the need for a dedicated wheel loader to constantly remove material from the crusher, screen, or shredder.
  • Reduces fuel costs by up to 75%.
  • Reduces operating costs by up to 70%.
  • Removing/reducing loading shovel movements, reducing operating costs.
  • Reduces screener idle time, increasing production.
  • Reduces face excavator idle time, increasing production.
  • Production rates of up to 600tph.
  • Hydraulic folding head section allowing for compact road transportation.
  • Typical setup time of under 10 minutes.
  • Hydraulic tail section height adjustment while maintaining head drum height, ensuring maximum stockpile capacity.
  • High specification machine designed for ease of maintenance, commanding an excellent resale value at project conclusion.
