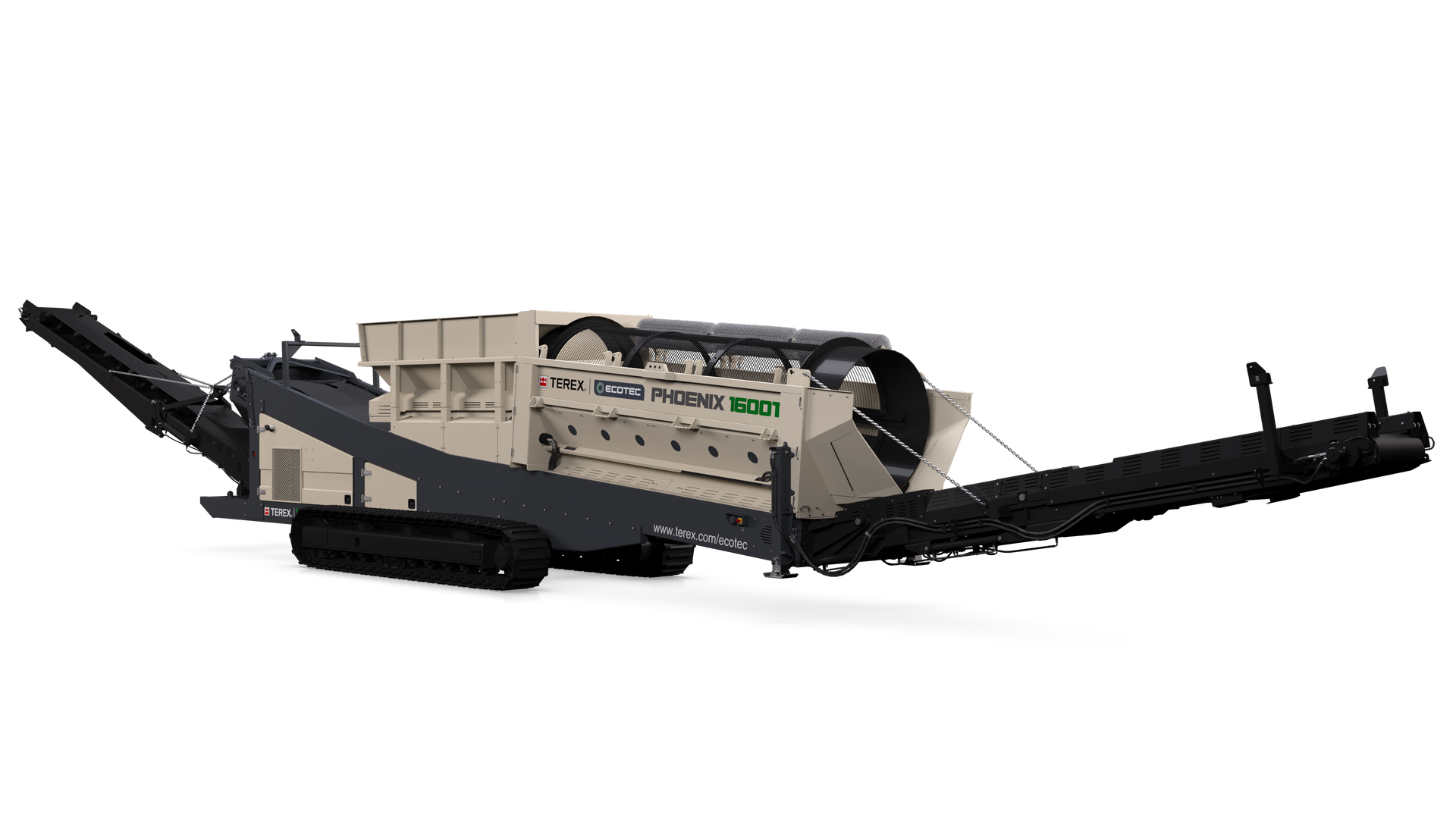

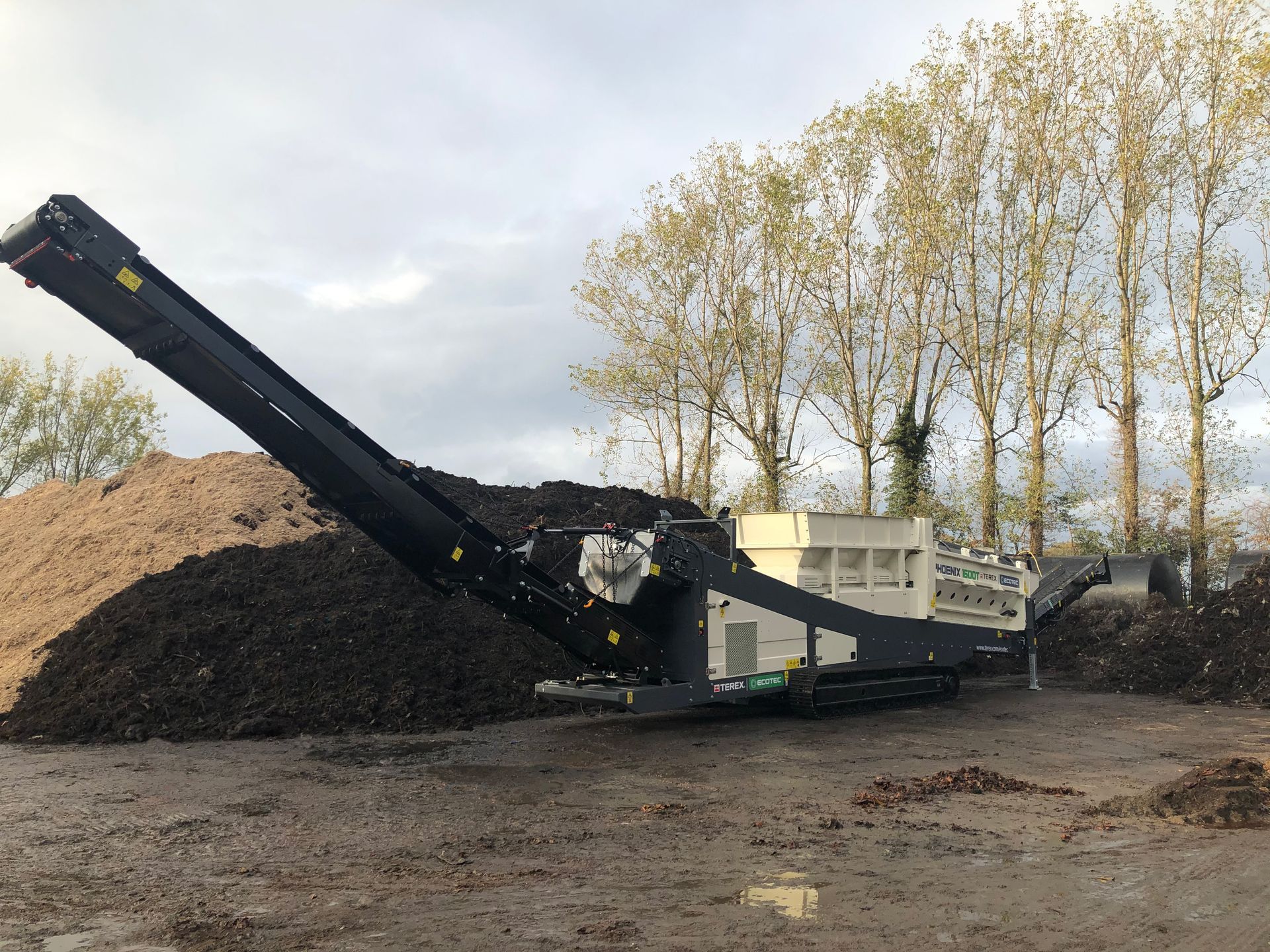

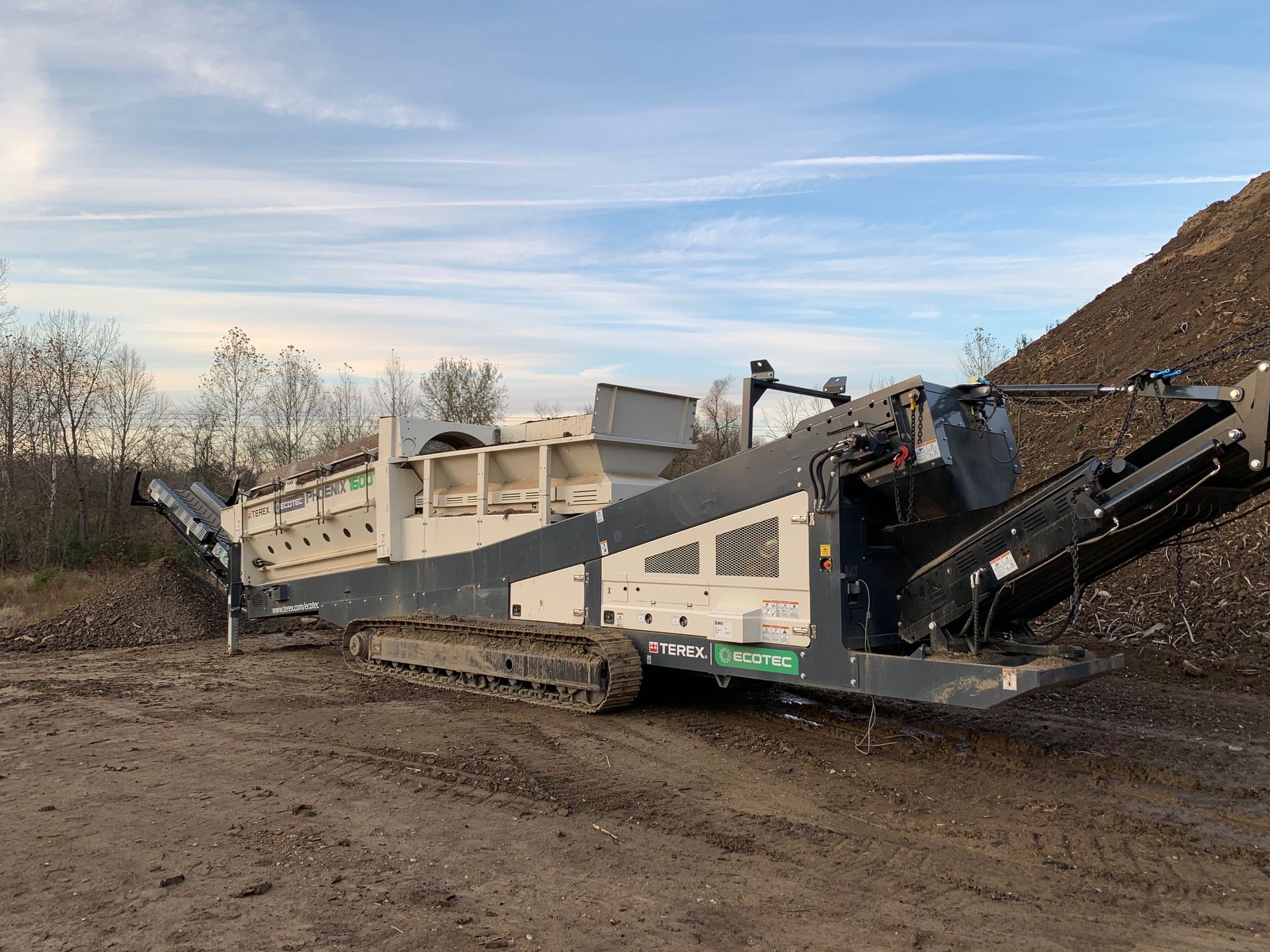

Phoenix 1600T Trommel Screen

Overview

Ideal for operation in inhibited areas the Phoenix 1600T offers increased site mobility


Powered by a Caterpillar C4.4 engine, the Phoenix 1600T has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM. A tracked variant of the Phoenix 1600, it offers increased site mobility and is ideal for operation in inhibited areas.


Unrivalled production throughput is guaranteed due to the 4.9m (16’) x 1.54m (5’) drum providing a class-leading screening area of 19m² (205ft²). The Phoenix 1600T is highly versatile and can easily screen a variety of material including topsoil, compost, sand and gravel, wood chip, and C&D waste. Woven mesh or heavy-duty punch plate panels can be fitted to the drum, ensuring all application requirements are met.


The 180° swivel fines conveyor, with a discharge height of 5.65m (18' 6"), results in the creation of impressive stockpiles. This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime. The powerful four-wheel-drive system with high-performance friction grip wheels is used to turn the trommel drum, giving operators the ability to run bi-directionally.


Powerful hydraulics and an intelligent feed control system ensure the Phoenix 1600T is always working at its optimum. The low engine RPM, coupled with the fuel-save (stand-by) mode, guarantees peak efficiency. Easily transportable, the Phoenix 1600T offers quick and easy set-up along with excellent service access.



features

  • Remote Operated 180 Degree Radial Fines Conveyor
  • Low Engine RPM & Fuel Save System
  • Excellent Service Access
  • Independent Track Sub-Frame For Adjustable Screening Angle
  • Tipping Grid Option
  • High Capacity Feed Hopper
  • Intelligent Feed Control
  • Variable Speed Drum Drive System
  • Adjustable Self Cleaning Brushes
  • Mesh or Punch Plate Panels
  • Variable Speed Oversize Conveyor

TEchnical specifications

  • Width: 2.6m (9’ 2")
  • Height: 4.1m (13’ 6")
  • Length: 16.1m (52’ 10")
  • Weight: 21,100kg (46,500lbs)

  • Width: 15m - 16.8m (49’ 3”- 55’ 1”) (depending on conveyor angle)
  • Length: 24.8m - 26.3m (81' 4"- 86’ 3”) (depending on conveyor angle)
  • Feed height: 2.7m (8’ 10”)

  • 4.3m³ (152ft³) capacity
  • 3.7mm (12’ 2”) hopper length
  • 900mm (35”) 3 ply plain belt, 4 + 2 covers
  • Variable speed c/w intelligent feed control
  • Hopper extensions

  • 4.9m (16’) Length
  • 1.54m (5’) Diameter
  • 19m2 (205ft2) screening area
  • Friction four wheel drum drive system
  • Variable speed control
  • Mesh or Punch plate panels
  • Inclined drum (2°- 5°)

  • Engine:

ㅤㅤㅤ•CAT C4.4 98kW (131HP) Stage IIIA Constant Speed

ㅤㅤㅤ•CAT C4.4 82kW (110HP) Tier 4 Final

ㅤㅤㅤ•CAT C4.4 102kW (137HP) Stage V

ㅤㅤㅤ•CAT C4.4 98kW (131HP) LRC

  • Fuel capacity: 327L (86 US gal)
  • Hydraulic capacity: 425L (112 US gal)
  • Powerful hydraulics
  • Excellent service access

  • 1200mm (47”) 3 ply plain belt, 4 + 2 covers
  • Length: 11400mm (37’ 5”)

  • Width: 800mm (32”) 3 ply plain belt, 5 + 1.5 covers
  • Length: 8700mm (28’ 7”)
  • Remote control 180° swivel
  • Variable operating angle 15° - 30°
  • Discharge height 5.65m (18' 6") @ Variable 30°

  • Width: 800mm (32”) 3 ply chevron belt, 3 + 1.5 covers
  • Length: 5400mm (17’ 9”)
  • Variable speed control
  • Variable operating angle 15° - 30°
  • Discharge height 3.6m (11' 9") @ 30°

  • Bolts on tracks
  • 400mm (16”) shoe
  • 4.3m (13’ 1”) sprocket centres

  • Tipping grid - 4" and 6"
  • Heavy duty woven mesh
  • Punch plate
  • Flexxaire reversible cooling fan
  • Different colour paint
  • Telemetry
  • Additional remote control for tracking
