Phoenix 2100T Trommel Screen

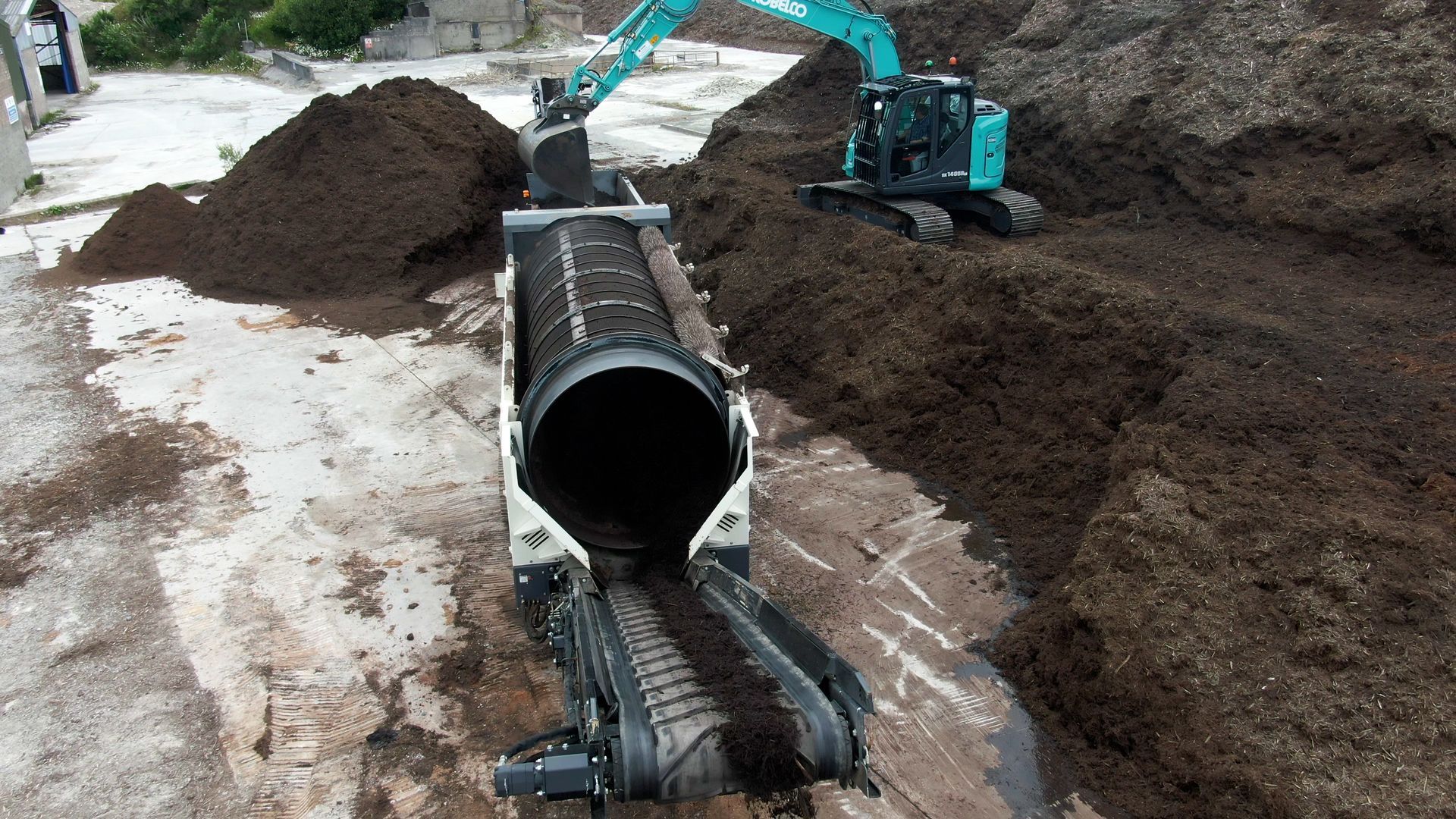

A tracked variant of the market-leading Phoenix 2100 trommel, the Phoenix 2100T has been intuitively designed, offering operators unrivalled throughput, application flexibility, and serviceability. Fully equipped with a Stage V/Tier 4 Final engine and the latest intelligent screening technology, the Phoenix 2100T delivers superior screening efficiency. Ideal for medium-sized operations, it can accurately screen a variety of materials including compost, biomass, soil, green waste, C&D waste, and aggregates.

With a rapid set-up time, the Phoenix 2100T is ready to work in minutes with no tooling required. The user-friendly control system with push-button start/stop offers simple operation and diagnostics, allowing the operator to effortlessly configure the machine to suit the required application. The fully proportional, hydrostatic feeder combined with an intelligent control system continually monitors the machine, adjusting the feeder speed to optimise screening performance and throughput.

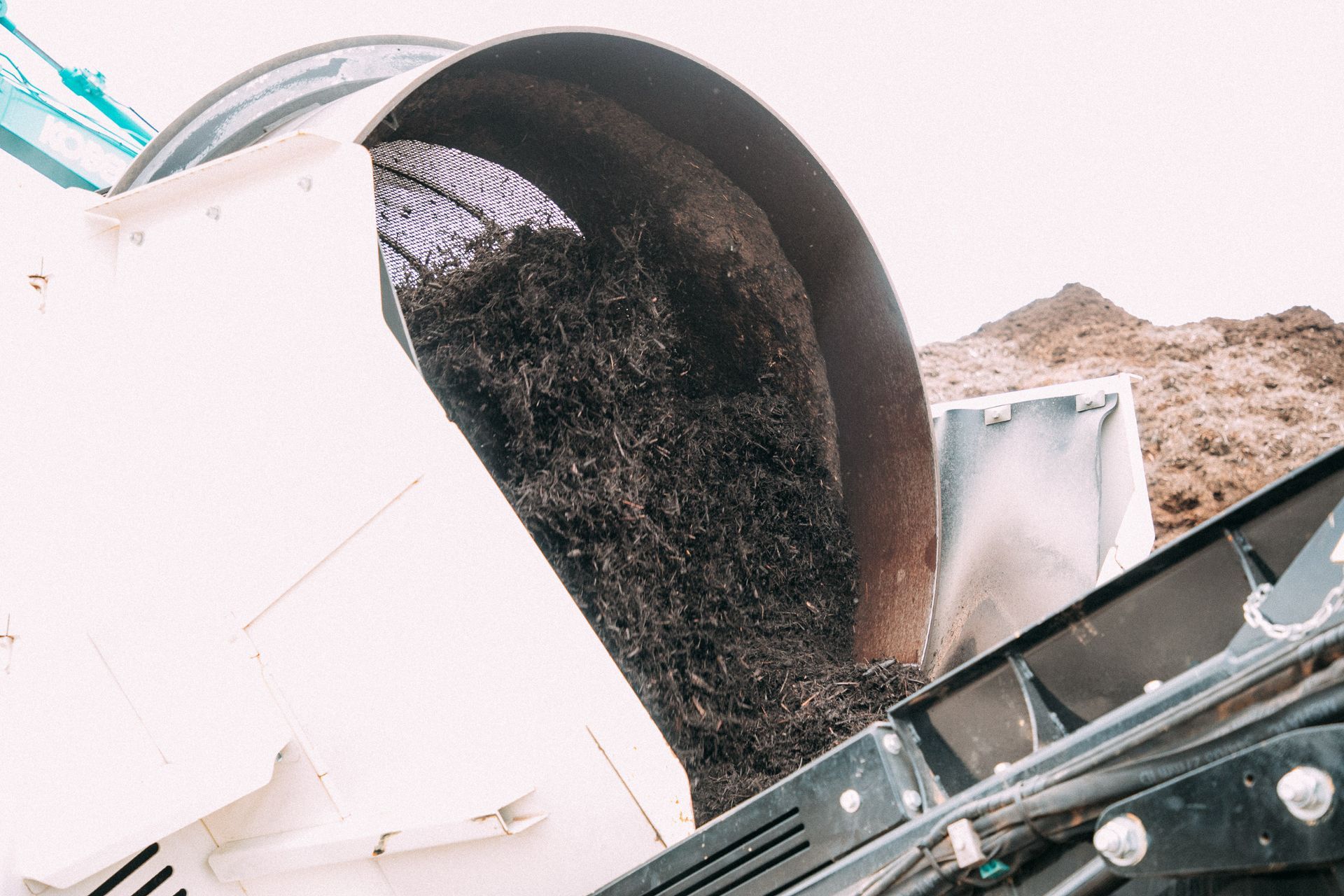

The Phoenix 2100T is fitted with a 6.45m (21’ 2’’) x 1.94m (6’ 4’’) screening drum, with heavy-duty mesh or punch plate options available, ensuring that all application requirements are met. Equipped with a powerful hydrostatic four-wheel-drive system, the Phoenix 2100T offers unrivalled start-up torque and screening efficiency. With a fully independent track subframe, the drum screening angle can be adjusted from 0°–7° whilst in operation. Maintenance and inspection can be carried out with ease due to the side drum access.

Powered by a 102kW (137HP) CAT C4.4 Stage V/Tier 4 Final engine, the Phoenix 2100T offers the perfect blend of power and efficiency, reducing operating costs. Both noise and emission levels are reduced due to the machine running at a lower engine RPM. The swing-out power unit provides unprecedented service access, enabling daily checks and maintenance to be carried out from ground level. The 180° radial fines conveyor, with a variable discharge height of up to 5.3m, can be remote-controlled whilst in operation, maximising stockpile capacity. Both the radial fines and oversize conveyors lower to ground level hydraulically for maintenance. Manoeuvred via heavy-duty crawler tracks, the Phoenix 2100T offers increased site mobility and is a great solution for difficult terrain.

• A powerful four-wheel-drive system with high-performance friction grip wheels is used to turn the trommel drum, giving operators the ability to run it bi-directionally.
• 6.45m (21' 2'') x 1.94m (6' 4'') screening drum with heavy-duty mesh or punch plate options, offering application flexibility.
• Fully proportional, hydrostatic feeder with an intelligent control system optimising screening performance and throughput.
• Swing-out engine cradle providing operators with unrivalled maintenance access.
• User-friendly push-button control system with Auto Start/Stop function and automatic feeder mode.
• Reversible engine fan (option) and removable pre-filter grille provide maximum protection for the engine air intake and cooling pack.
• Remote-controlled 180° radial fines conveyor with variable discharge height, offering maximum stockpile capacity.


• Green Waste
• Compost
• Biomass
• Soil, Gravel, Sand
