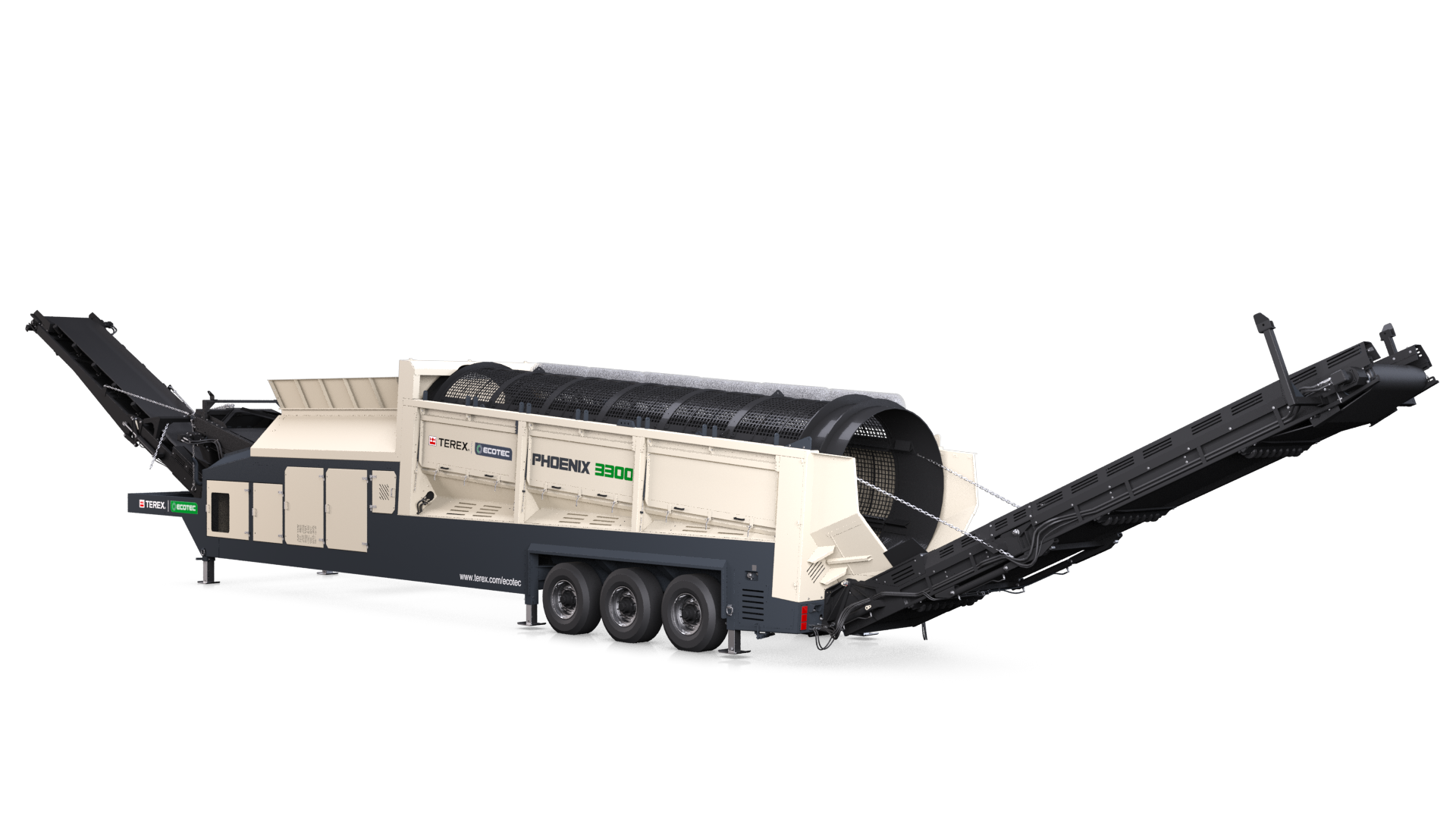

Phoenix 3300 Trommel Screen

Terex Ecotec's Phoenix 3300 trommel screen is designed to offer unrivalled production throughput and application flexibility. The robust design, with optional features such as a heavy-duty tipping grid or double-deck vibrating grid, makes the Phoenix 3300 the most versatile trommel on the market today. The machine performs equally well in heavy C&D applications as it does in high-volume compost production. The 180° swivel fines conveyor, with a 5.8m (19’) discharge height, means the machine can generate massive stockpiles. This swivel feature can be controlled via a radio remote while the machine is in operation, minimising downtime.

A powerful four-wheel-drive system with high-performance friction grip wheels is used to turn the trommel drum, giving operators the ability to run bi-directionally. Woven mesh or heavy-duty punch plate panels can be fitted to the trommel drum, ensuring all application requirements are met.

Caterpillar Tier 3 or Tier 4 engines, combined with powerful hydraulics and auto feeder speed control, guarantee the machine is always working at its optimum. A fifth-wheel connection, triple-axle bogie, and rapid set-up time make the machine highly mobile.

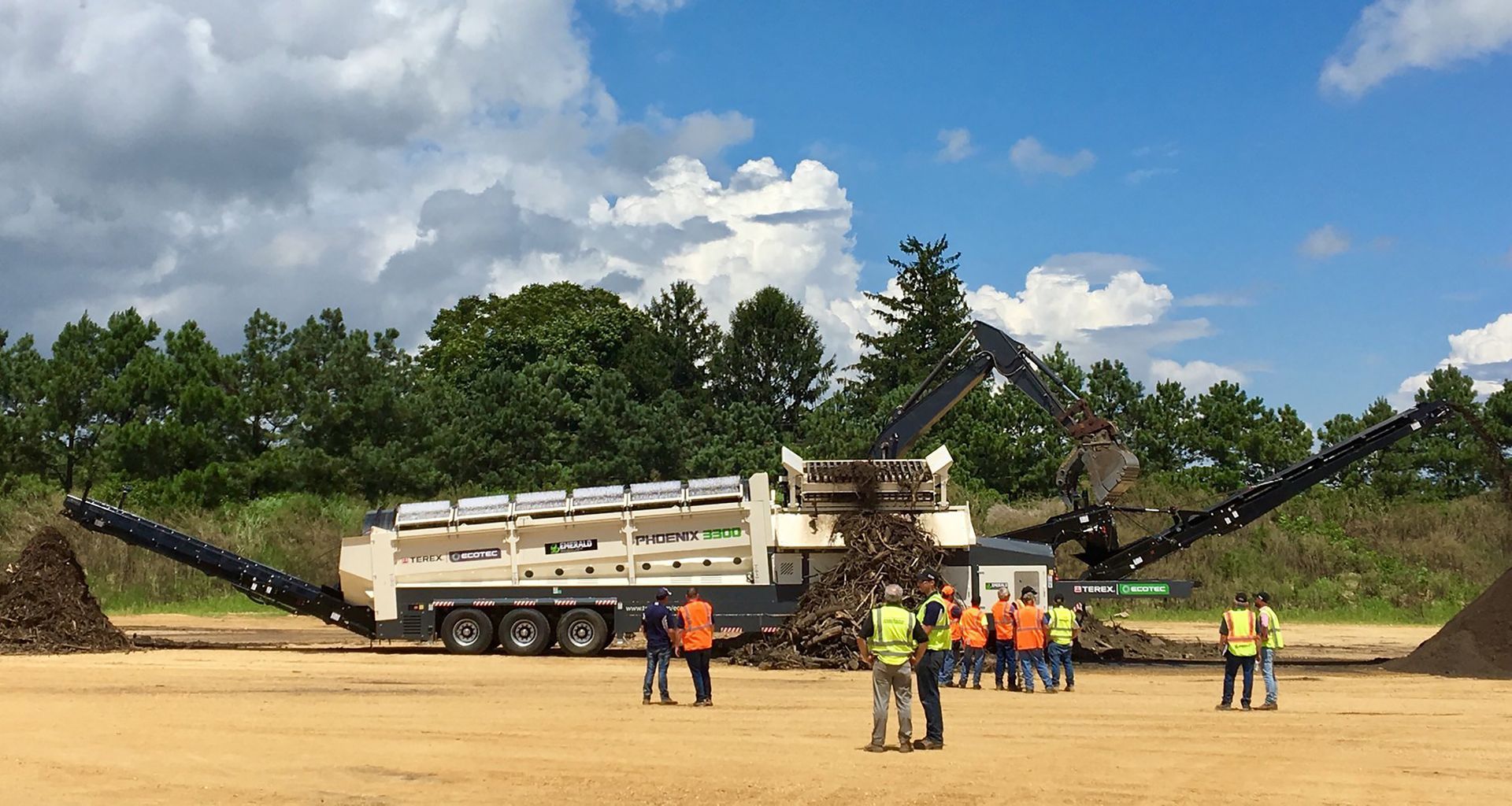

The Phoenix 3300 is highly efficient in the separation and processing of wood chippings, topsoil, compost, green waste, C&D waste, and aggregates.

• High capacity up to 300 tph (depending on feed size, mesh size & material type)
• Maximum feed size 150mm
• Engine protection shutdown system
• Powerunit featuring a transverse engine arrangement to aid access & serviceability
• Friction four wheel drive system on drum
• Hydraulically adjustable machine working angle using hydraulic jacking legs
• Angle adjustable radial conveyor


• Aggregate
• Sand & gravel
• Recycling
• Top soil
• C&D waste
• Composted materials
• Wood by-products
• Overburden
