TBG 530T High Speed Shredder

Download Brochure Technical Specifications Talk to an Expert

Overview

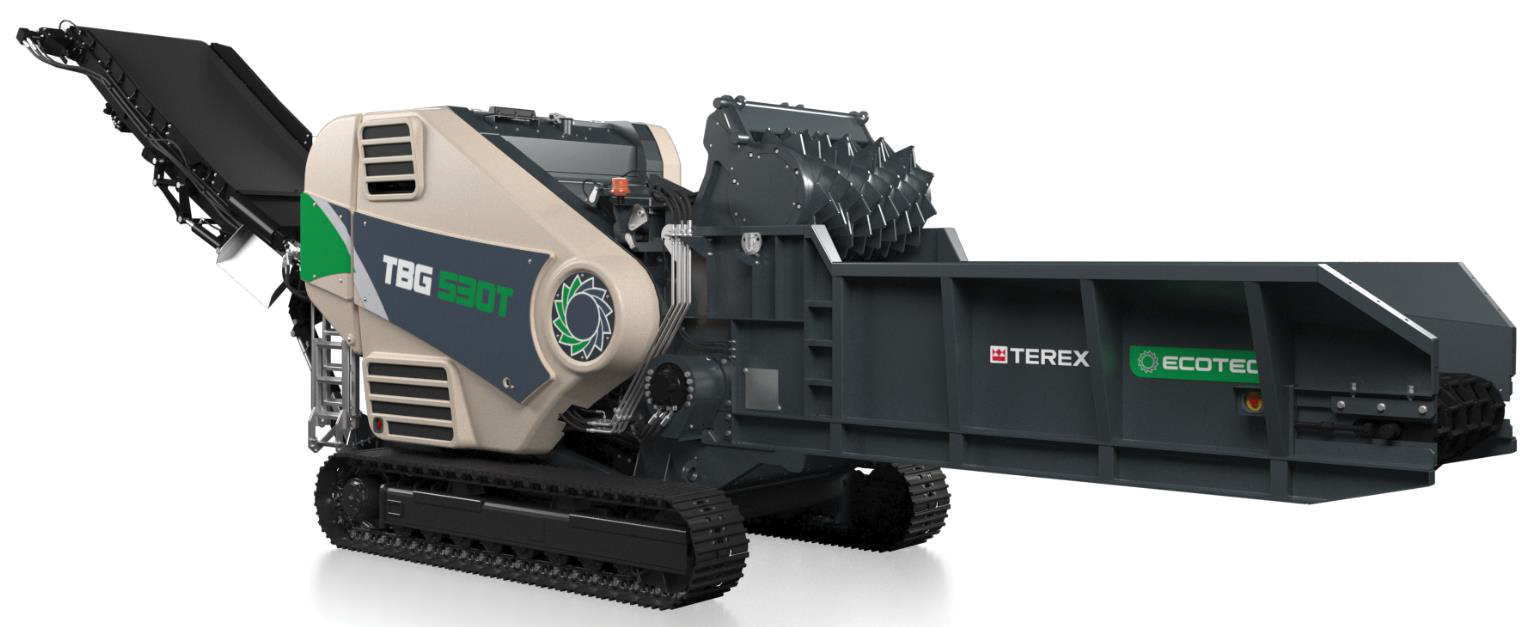

The TBG 530T is a robust, track-mounted, high-speed shredder, ideal for medium-scale producers requiring an accurate and consistent end product. Powered by a 493 HP Scania DC13 engine, the TBG 530T has been expertly designed to give operators unrivalled performance, ease of maintenance and superb fuel efficiency. Extremely versatile, it excels in many applications and is particularly suited to waste wood processing and green waste shredding.

features

493hp (368kW) High speed shredder
30 Swinging hammers
Excellent service & maintenance access
Fuel efficient Scania engine
Superb stockpile height

Applications

Waste Wood
Green Waste
Forestry Waste
Timber Waste

TEchnical specifications

Length: 11746mm (38’7”)
Width:2800mm (9’2”)
Height: 3400mm (11’2”)
Weight*: 25000kg (55100lb)

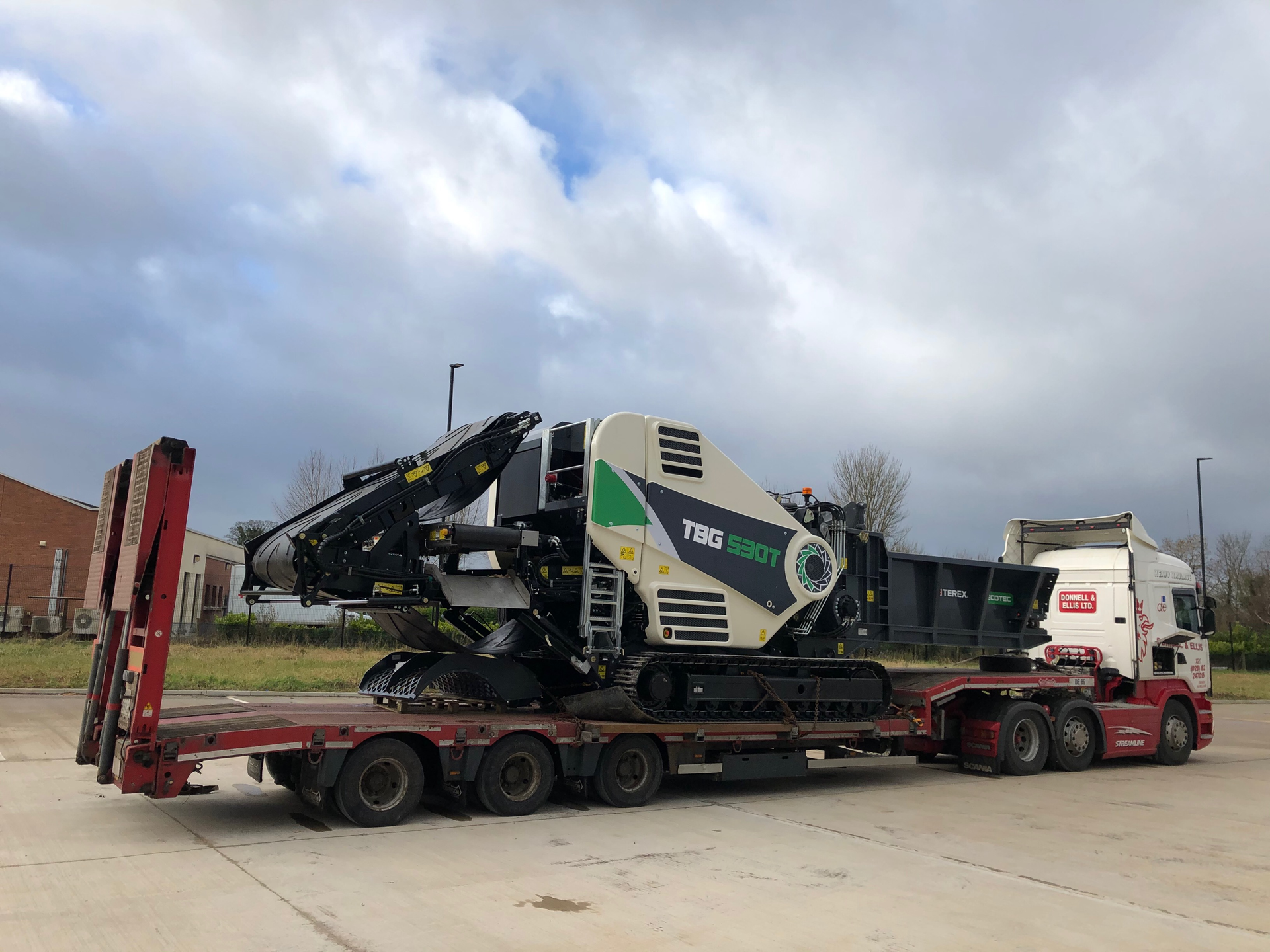

Quick and easy set up. From transport to working in under 5 minutes with no tools required

*depending on options included

400mm triple Grouser, 3237 mm long
1.4 Km/h max speed
2 tracking speeds
Can be tracked via wired dog lead or remote control.
Windrow function available while processing material

Hopper size 3700 x 1410 x 685
5 rows of staggered drag chains
Independent drive allows machine to intelligently vary infeed speed depending on engine load or RPM
Feeder can be stopped, started and reversed from remote
Removable bypass plate to allow fine material to bypass rotor
Open hopper as standard or optional closing plate

Assists with pulling material into rotor
Feed wheel assist helps the feed wheel rise over material and can also apply downforce to breakup and push the material into the rotor
Feed wheel can be raised, lowered, reversed from remote
Just like the feed chains, the feed wheel speed can vary depending on engine load or RPM

Replaceable heavy duty anvil wear plates
Easy change screens
Large range of screens available for both wood and organic material
Adjustable height on grinding path
Second lower screen to increase throughput
Unrivalled access to rotor for maintenance
Interlock for operator safety
In the event of an unshreddable material entering the chamber the swinging hammers can move back to avoid damage to the rotor.
The screen releases allowing the material to fall out of the chamber
Screen kick can also be activated on the remote by the operator

30 Up swinging hammers
Single piece or replaceable tip hammers available
Hammer changes simple and easy to do
Operating speed 1000 1040 rpm (1500 1550 engine rpm)
Tip diameter 1090mm

493hp Scania DC13 Stage V Engine (368kW)
Direct drive rotor with clutch control
Normal engine operating speed 1500RPM
Large canopy can be easily opened to allow excellent access to engine
All filters easy accessed for maintenance
Fuel capacity 800L
CANBUS control system with user friendly color display offering simple operation and diagnostics
Cleanfix reversing fan for cleaning the cooling pack
Stage II engine optional available
