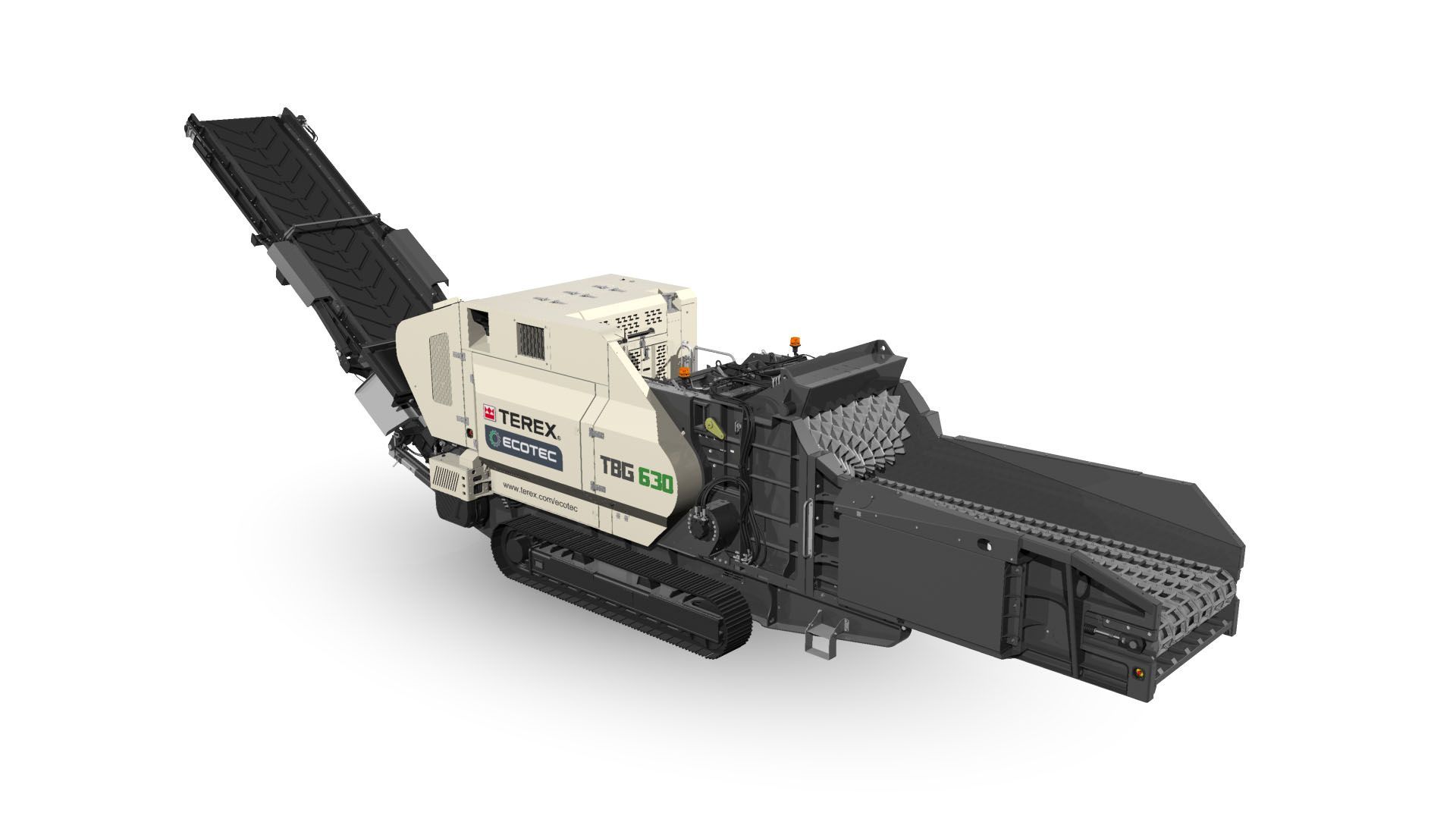

TBG 630 High Speed Shredder

Download Brochure Technical Specifications Talk to an Expert

Overview

Powered by a 670 HP V8 Scania engine, the TBG 630 has been designed to give operators unrivalled production rates and ease of maintenance. The open-fronted feeder uses heavy-duty drag chains, a powerful feed wheel and an unrestricted feeder design to effectively utilise the 1,100 mm diameter x 1,750 mm wide swinging hammer rotor. This robust rotor comes with a wide selection of hammer designs and customisable screens, which ensure end-product material specification is met.

Metal contaminants are always a concern when using a high-speed machine; the TBG 630 has an intelligent screen opening system to quickly discharge such contaminants, reducing the risk of accidental damage. The unique machine layout and maintenance catwalks offer operators unrestricted access to both sides of the engine, making servicing a simple task. Industry-leading conveyor discharge height of 5.1 m maximises stockpile capacity and allows loader operators to easily remove processed material.

features

670HP High speed shredder
36 Swinging hammers
Excellent service & maintenance access
Fuel efficient Scania engine
Class leading stockpile height

Applications

Waste Wood - Biomass
Organic - Green Waste

TEchnical specifications

Length: 13579mm (44’7”)
Width: 2988mm (9’10”)
Height: 3348mm (11’)
Weight*: 35600kg (78485lb)

Quick and easy set up. From transport to working in under 5 minutes with no tools required

*depending on options included

400mm Triple Grouser, 3237mm long
1.5 Km/h tracking speed
2 tracking speeds
Can be tracked via wired dog lead or remote control.
Windrow function available as standard

Hopper size 3800 x 1410 x 685
6 rows of staggered drag chains
Independent drive allows machine to intelligently vary infeed speed depending on engine load or RPM
Feeder can be stopped, started and reversed from remote
Removable bypass plate to allow fine material to bypass rotor
Open hopper as standard or optional closing plate

Assists with pulling material into rotor
Feed wheel assist helps the feed wheel rise over material and also can apply downforce to breakup and push the material into the rotor
Feed wheel can be raised, lowered, reversed from remote
Just like the feed chains, the feed wheel speed can vary depending on engine load or RPM

Replaceable heavy duty anvil wear plates
Easy change screens
Large range of screens available for both wood and organic material
Adjustable height on grinding path
Second lower screen to increase throughput
Excellent access to rotor for maintenance
Interlock for operator safety
In the event of an unshreddable material entering the chamber the swinging
hammers can move back to avoid damage to the rotor
The screen releases allowing the material to fall out of the chamber
Screen kick can also be activated on the remote by the operator

36 Up swinging hammers
Single piece or replaceable tip hammers available
Hammer changes simple and easy to do
Operating speed 1000 1040rpm (1500 1550 engine rpm)
Tip diameter 1090mm

670hp Scania V8 DC16 Stage V (500kW)
Direct drive rotor with clutch control
Normal engine operating speed 1500RPM
2 gullwing doors and removable face panels allow unhindered access to both sides of engine
All filters easy accessed for maintenance
Fuel capacity 1000L
CANBUS control system with user friendly color display offering simple operation and diagnostics
Cleanfix reversing fan for cleaning the cooling pack
Stage II & Tier IV Final engine options available
