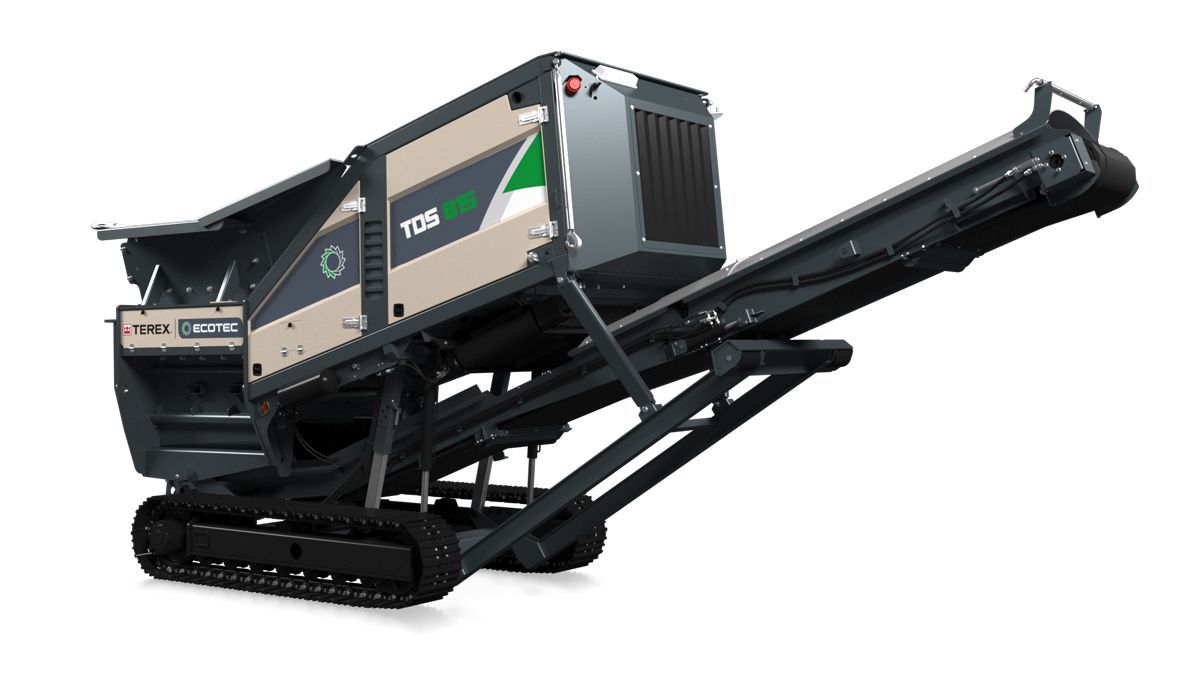

TDS 815 High Torque Shredders

Overview

The Ecotec TDS 815 Compact High Torque Shredder is a cutting-edge solution in waste processing, featuring a compact 1.5m twin shaft shredding unit for efficient material reduction. With quick-change shafts for enhanced adaptability and maintenance efficiency, it stands out as a versatile choice.


Operators can choose to run the shredder with synced or independent shafts, aligning perfectly with specific application requirements. Powered by a CAT 4.4 140kw stave V engine, weighing 16,500 kilograms, and equipped with T-Link telemetry system, this shredder is well suited for a range of applications. These include: skip waste, bulky waste, household waste, C&D, wood waste, green waste, building waste, stone and asphalt.


It's robust design, intelligent load-sensing hydraulics and user-friendly controls make it a game-changer in waste processing, offering innovation, adaptability, and reliability across various waste materials.



The Terex Ecotec TDS 815 shredder is more than just a machine: it's a game-changer in the waste processing industry. With its comprehensive set of features, remarkable adaptability and efficient performance, it emerges as an invaluable asset for those looking to manage waste effectively and with high efficiency. Whatever your waste type, the TDS 815 compact slow speed shredder is equipped to handle the task with excellence. In the ever-evolving landscape of waste processing, this machine stands as a true testament to innovation and efficiency.


features

  • Seamless Maneuverability and Effortless Transport
  • 1.5m Quick-Change Twin Shaft Shredding Unit
  • Versatile Design for Multiple Applications
  • Customisable Shredding Programs
  • Intuitive Control System

Applications

  • Waste Wood - Biomass
  • Organic - Green Waste

TEchnical specifications

  • Length: 13579mm (44’7”)
  • Width: 2988mm (9’10”)
  • Height: 3348mm (11’)
  • Weight*: 35600kg (78485lb)

Quick and easy set up. From transport to working in under 5 minutes with no tools required


*depending on options included

  • 400mm Triple Grouser, 3237mm long
  • 1.5 Km/h tracking speed
  • 2 tracking speeds
  • Can be tracked via wired dog lead or remote control.
  • Windrow function available as standard

  • Hopper size 3800 x 1410 x 685
  • 6 rows of staggered drag chains
  • Independent drive allows machine to intelligently vary infeed speed depending on engine load or RPM
  • Feeder can be stopped, started and reversed from remote
  • Removable bypass plate to allow fine material to bypass rotor
  • Open hopper as standard or optional closing plate

  • Assists with pulling material into rotor
  • Feed wheel assist helps the feed wheel rise over material and also can apply downforce to breakup and push the material into the rotor
  • Feed wheel can be raised, lowered, reversed from remote
  • Just like the feed chains, the feed wheel speed can vary depending on engine load or RPM

  • Replaceable heavy duty anvil wear plates
  • Easy change screens
  • Large range of screens available for both wood and organic material
  • Adjustable height on grinding path
  • Second lower screen to increase throughput
  • Excellent access to rotor for maintenance
  • Interlock for operator safety
  • In the event of an unshreddable material entering the chamber the swinging
  • hammers can move back to avoid damage to the rotor
  • The screen releases allowing the material to fall out of the chamber
  • Screen kick can also be activated on the remote by the operator

  • 36 Up swinging hammers
  • Single piece or replaceable tip hammers available
  • Hammer changes simple and easy to do
  • Operating speed 1000 1040rpm (1500 1550 engine rpm)
  • Tip diameter 1090mm

  • 670hp Scania V8 DC16 Stage V (500kW)
  • Direct drive rotor with clutch control
  • Normal engine operating speed 1500RPM
  • 2 gullwing doors and removable face panels allow unhindered access to both sides of engine
  • All filters easy accessed for maintenance
  • Fuel capacity 1000L
  • CANBUS control system with user friendly color display offering simple operation and diagnostics
  • Cleanfix reversing fan for cleaning the cooling pack
  • Stage II & Tier IV Final engine options available

  • Heavy duty impact bed under chamber
  • 1400mm wide belt
  • Max belt speed 110m/min
  • Head/tail drum and bearings accessible without removing conveyor from chassis
  • Removable cassette for belt changes

  • 1400mm wide Chevron Belt
  • 15 35deg adjustable working angle
  • Max discharge height 5065mm
  • Max belt speed 220m/min
  • Fully adjustable speed from control panel
  • Speedwheel to detect conveyor under speed and stop machine
  • Optional magnetic head drum available

  • Can be discharged either side of machine
  • Adjustable speed
  • Easy height adjustment and can be stowed out of way if required
  • Rare earth option available
