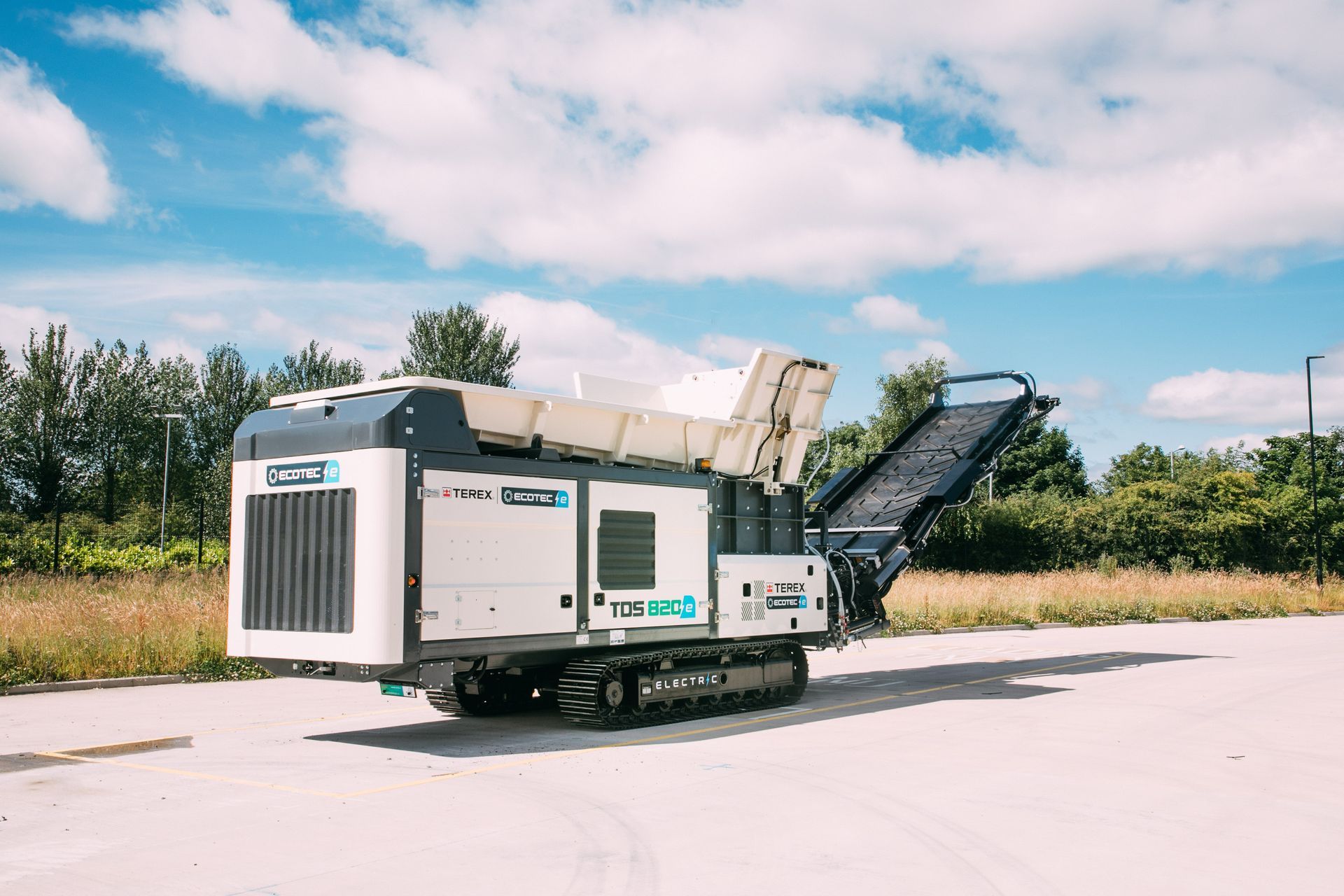

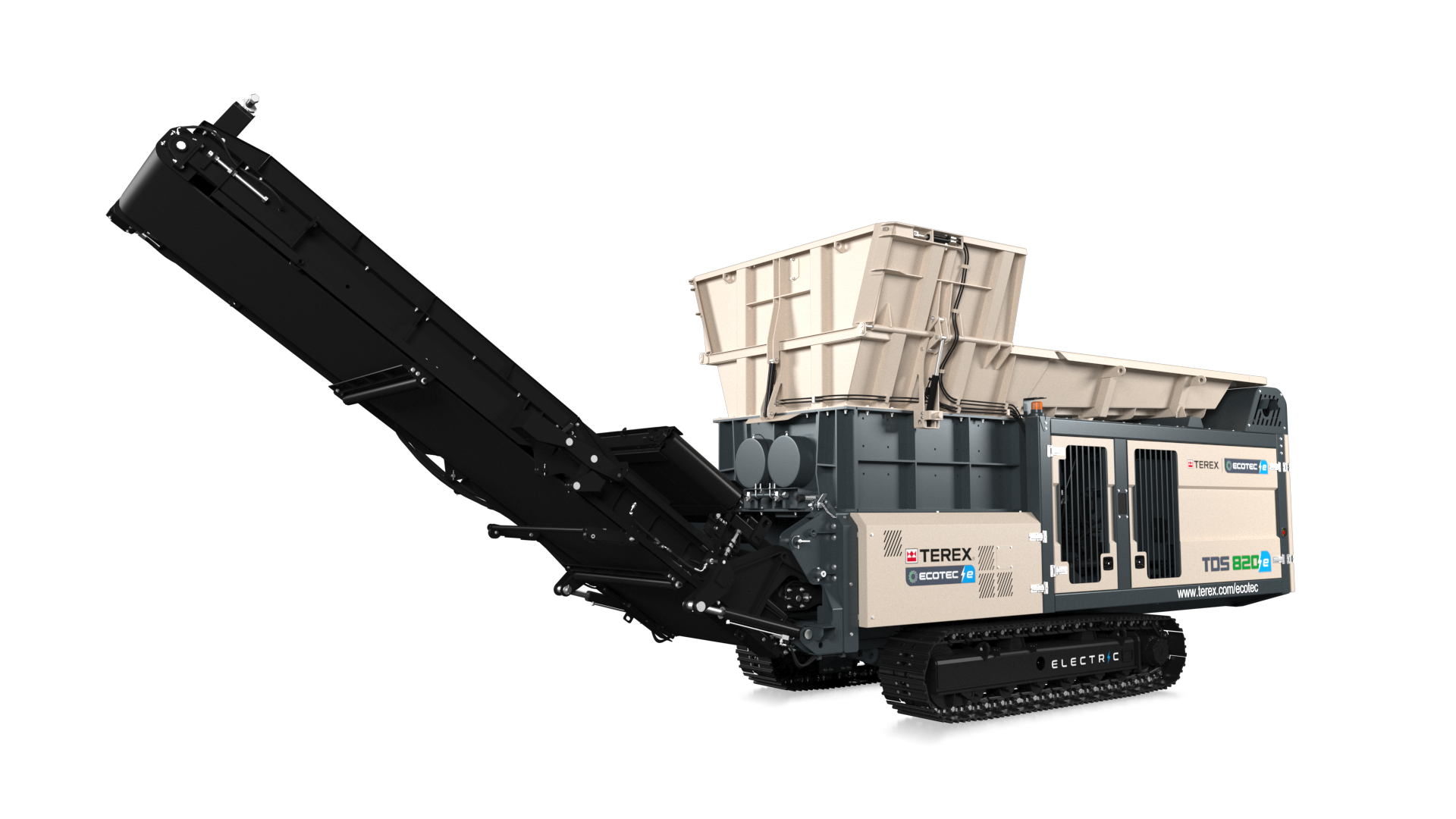

TDS 820 Slow Speed Shredder

Overview

The TDS 820 is an aggressive slow speed shredder suitable for all types of material. Customisable shredding programs allow operators to configure the machine to their specific requirements, reducing wrappage and maximising production.


Key features include the hydrostatic drive, offering better protection against contamination and allowing for bi-directional shredding. The double-shaft shredder has 2 m long shafts with a fully welded tooth configuration, impressive throughput and excellent reduction.


The independent gearboxes enable each shaft to be run separately, helping to reduce wrappage and improve the shredding of material.


Additional features include the tipping feeder, which increases the feed area. Hopper extensions provide increased capacity in bulky applications.


The TDS 820 is powered by the following engines, dependent on geographic area and emission regulations: Scania DC13 331 kW (440 HP) Stage V for EU, Scania DC13 331 kW (440 HP) Tier 4 Final for the USA, and Scania DC13 371 kW (497 HP) Stage IIIA Constant Speed for ROW.


The machine is manoeuvred via a robust tracked undercarriage, making it a great solution for difficult terrain.


features

  • Excellent service access reduces operator downtime
  • A powerful Scania engine with a low operating speed combined with an efficient hydrostatic drive creates a very responsive shredding action with protection against unshreddable contaminants
  • User friendly colour display offering simple operation and diagnostics
  • Customisable shredding programs allow operators to tailor the machine for specific applications
  • Robust German designed shredding chamber
  • Independently driven shafts give excellent shredding performance in even the most challenging of applications
  • Shaft cutting elements are a fully welded structure with hard-faced edges giving ultimate strength in difficult applications
  • A separate transfer conveyor with a high specification belt ensures material is effectively removed from below the shredding chamber

Applications

  • Household Waste
  • Bulky Waste
  • Commercial Waste
  • Waste Wood
  • Tyres
  • Green Waste
  • Forestry Waste

TEchnical specifications

  • Length: 9100mm (29’ 10”)
  • Width: 2500mm (8’ 2”)
  • Height: 3200mm (10’ 6’’)
  • Weight: 27,500kg (60,627lbs) (dependent on options)

  • Length: 11700mm (38’ 5”)
  • (product belt @ 35°)
  • Width: 2500mm (8’ 2”)
  • Feed Height: 3200mm (10’ 6”)
  • Discharge Height:
  • 3900mm (12’ 10”) – 1700mm (5’ 7”)

  • Type of shredder: Twin shaft slow speed
  • Shaft Length: 2000mm
  • Shaft diameter: 700mm
  • Torque per shaft: 100 000Nm
  • Tilting feeder capacity: 7m³
  • Autolube for shredder shaft bearing

  • Engine:

ㅤㅤㅤ•Scania DC13 331kW (440HP) Stage V (EU)

ㅤㅤㅤ•Scania DC13 331kW (440HP) Tier 4 Final (USA)

ㅤㅤㅤ•Scania DC13 371kW (497HP) Stage IIIA

ㅤㅤㅤConstant Speed (ROW)

  • CleanFix variable pitch cooling fan
  • Shredder drive: Twin Hydrostatic (independent shaft drive)
  • Fuel capacity: 500l
  • CAN BUS control system with user friendly colour display offering simple operation and diagnostics

  • Width: 1300mm (4’ 3”)
  • Length: 2450mm (8’ 0”)
  • Max. belt speed: 130m/min (426’ 6”/min)

  • Width: 1400mm (4’ 7”)
  • Length: 5500mm (18”)
  • Max. belt speed: 130m/min (426’ 6”/min)

  • Bolt on tracks
  • 500mm (20”) shoe
  • 2920mm (9’ 7”) sprocket centres

  • Overband Magnet
  • Various Shaft/Breaker Bar Configurations
  • Plant Autolube (Excluding Shredder Shafts)
  • Extended Discharge Conveyor
  • Hydraulic Raise / Lower Overband Magnet
  • Hydraulic Folding Hopper Extensions
  • Chamber Camera & Monitor
