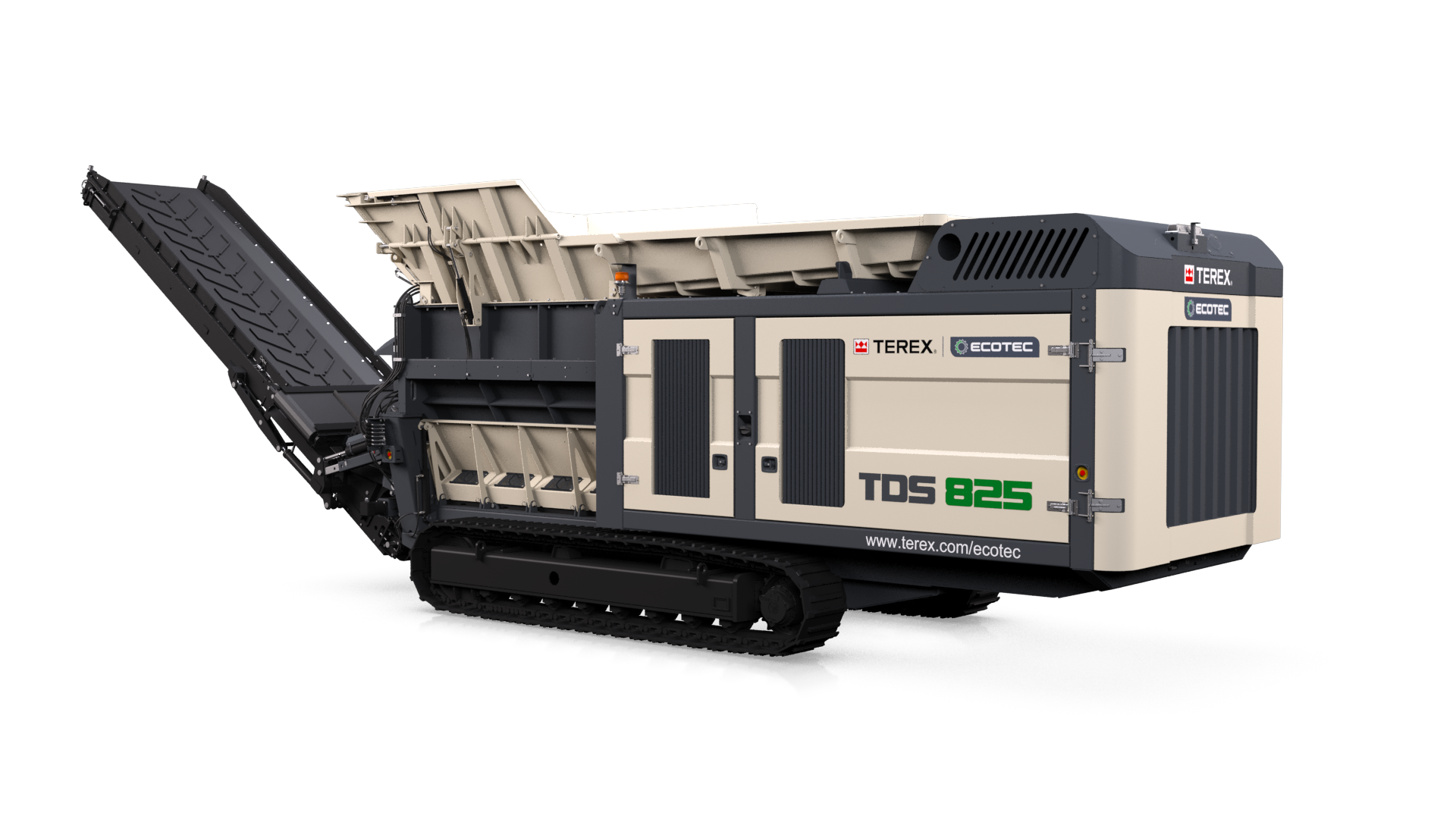

TDS 825 Slow Speed Shredder

The TDS 825 is a robust twin shaft, slow speed shredder. Ideal for large scale operations this high capacity machine takes shredding to the next level and is suitable for all types of material including household waste, bulky waste, commercial waste, green waste, waste wood, tree stumps and roots. Customisable shredding programs allow operators to configure the machine to their specific requirements, maximizing production. Designed with unrivalled levels of service access, quick and easy set-up is guaranteed from ground level.

Key features include the hydrostatic drive, which offers protection against contamination and allows for bi-directional shredding. The double-shaft shredder has 2.5 m long shafts made from solid steel, with a fully welded tooth configuration, giving an extremely high production rate with excellent size reduction.

Independent gearboxes enable each shaft to be run separately, helping to reduce wrappage and improve the shredding of material. Should a blockage occur, the shafts can be controlled via the radio remote control, allowing material to be repositioned before attempting to shred again.

Powered by a 770 HP Scania V8 DC16, the TDS 825 has been designed to provide operators with unrivalled levels of service access. The high-volume tipping hopper increases the feed area, providing optimum material feed, and can be activated using the control panel or via the remote control. Tipping cycle times can be configured to suit the application.

Hydraulic folding hopper extensions allow for increased capacity, preventing the infeed material from falling out, especially in bulky applications.

Quick and easy set-up from ground level is guaranteed, taking a matter of minutes with no tools or working at height required.

The TDS 825 is manoeuvred via a robust tracked undercarriage, making it a great solution for difficult terrain.

• Excellent service access reduces operator downtime
• A powerful Scania engine with a low operating speed combined with an efficient hydrostatic drive creates a very responsive shredding action with protection against unshreddable contaminants
• User friendly colour display offering simple operation and diagnostics
• Customisable shredding programs allow operators to tailor the machine for specific applications
• Robust German designed shredding chamber
• 2.5m long shafts made from solid steel with a fully welded tooth configuration
• Hydraulic folding hopper extensions allows for increased capacity. Quick and easy set-up from ground level in a matter of minutes (Optional)
• High strength overband magnet with hydraulic raise/lower function (Optional)
• Full chamber access for servicing and breaker bar replacement


• Household Waste
• Bulky Waste
• Commercial Waste
• Waste Wood
• Green Waste
• Forestry Waste
• Timber Waste
