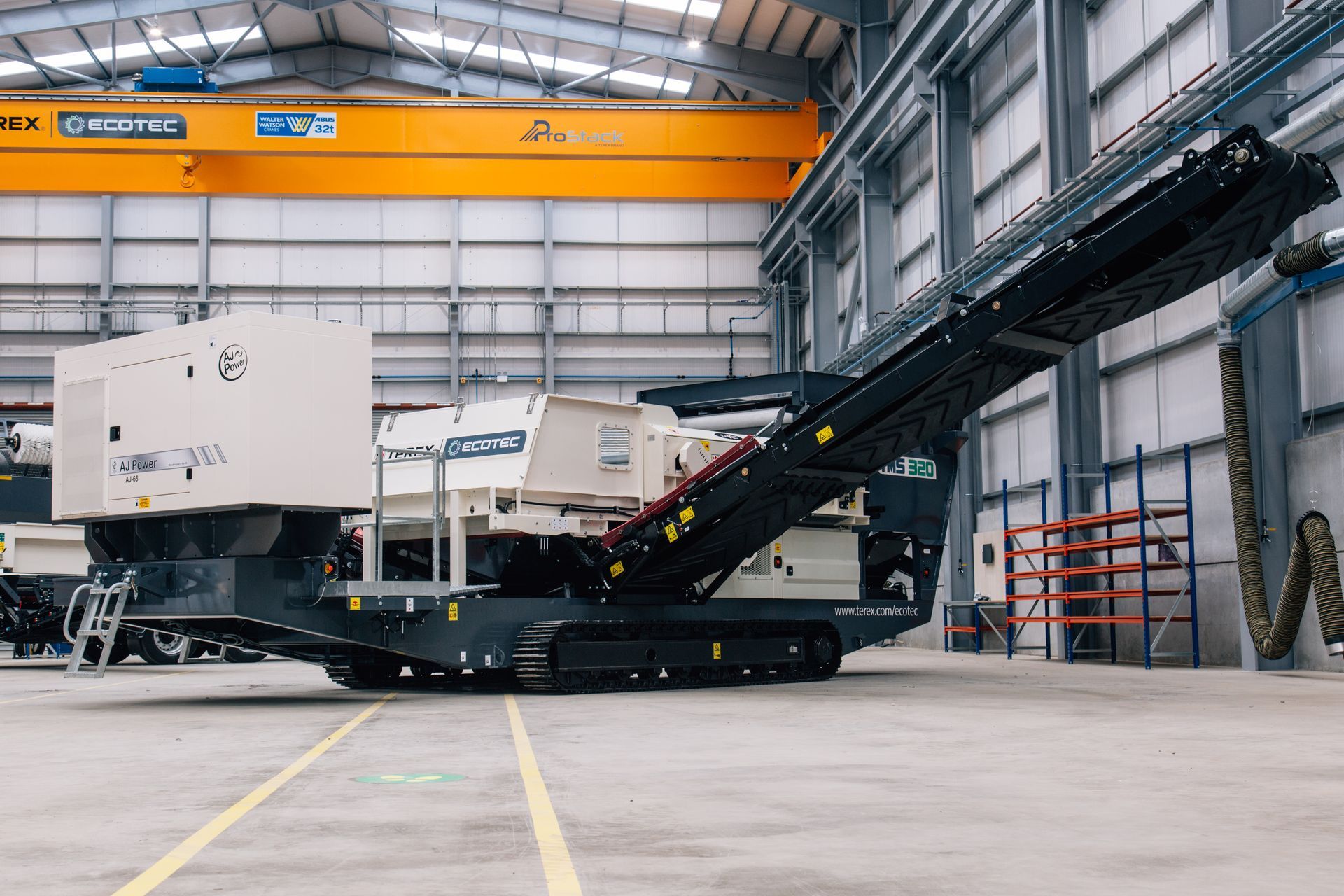

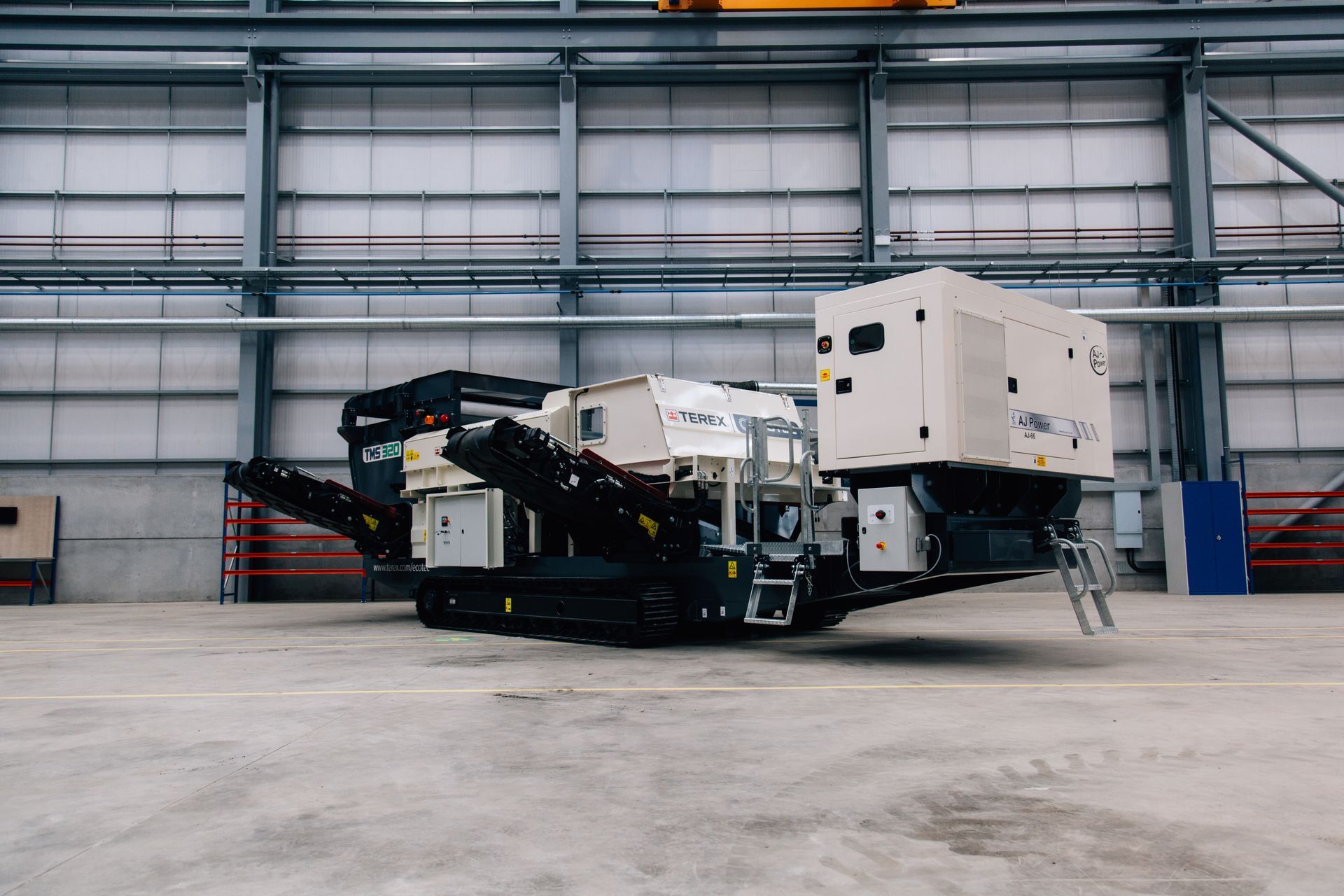

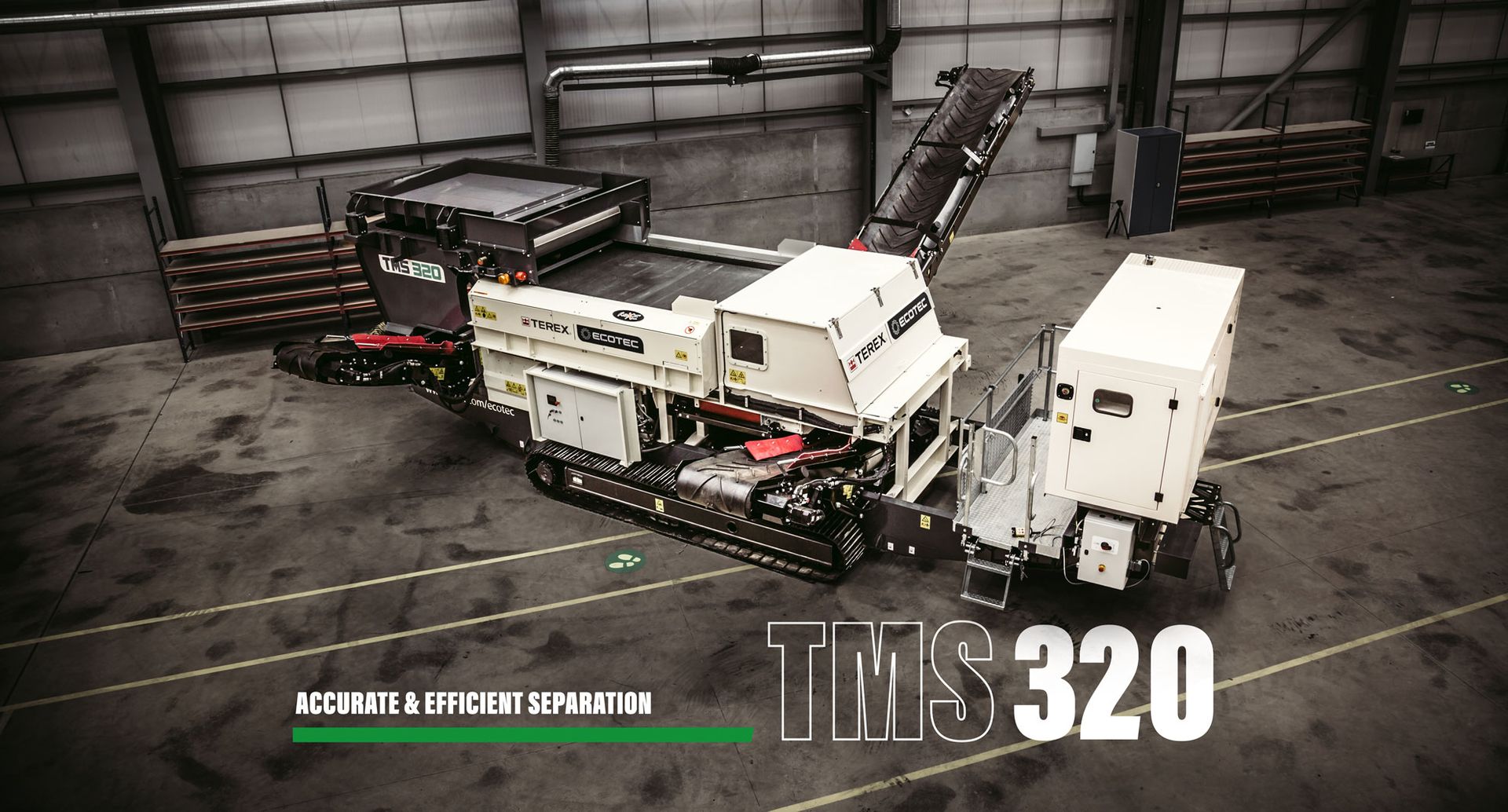

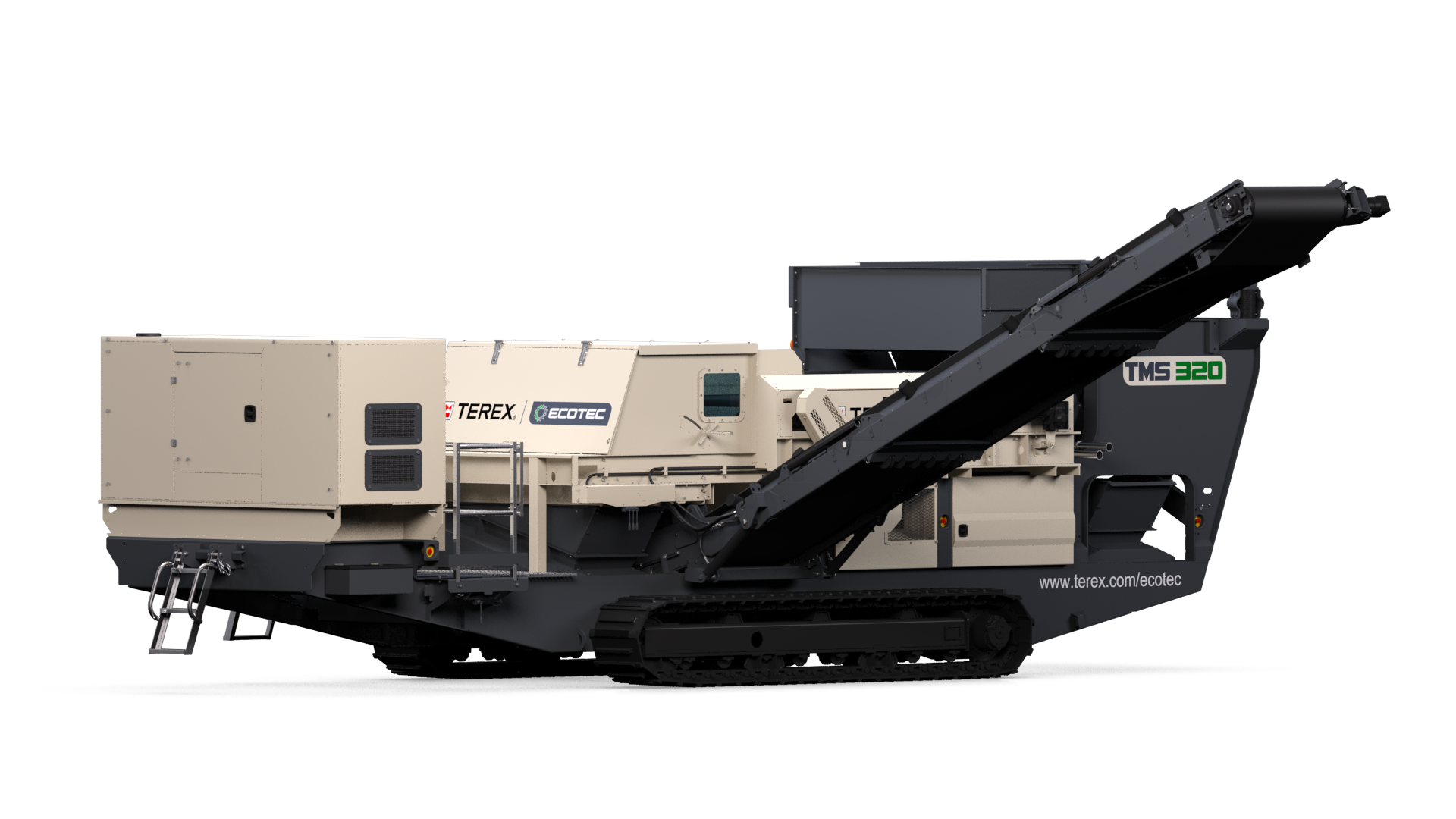

TMS 320 Metal Separator

The TMS 320 is the ultimate in mobile separation, offering operators unrivalled application flexibility, production rates and serviceability. A highly efficient drum magnet and eddy current rotor combined with superior material flow, ensure accurate material separation. The TMS 320 is ideally suited for metal recovery from compost, biomass, IBA (Incinerated Bottom Ash) and waste.

The TMS 320 metal separator offers quick and easy set-up and will be ready to process in minutes with no tools required. An intuitive push button control panel, variable speed drum magnet and eddy current belt, combined with a splitter system that offers accurate real-time adjustment, enables the operator to easily configure the machine to suit a wide range of applications.

In partnering with Eriez, a world authority in magnetic separation technologies, the TMS 320 incorporates the renowned RevX ST22 eddy current separator and rare earth drum magnet. The RevX ST22 eddy current separator has a premium 22-pole neodymium rotor which spins at just 3000 RPM. This rotor is encased in an ultra-thin carbon fibre shell and a thin but durable PVC belt, ensuring that the intense field produced by the ST22 is fully employed to provide the most effective separation results. The 2m wide high-strength neodymium radial pole magnet is utilised for optimum iron recovery.

Designed to provide operators with unrivalled levels of service access, all conveyors are built to a modular design, allowing each one to be removed independently for ease of maintenance. The splitter system can be moved away from the eddy current unit to provide unobstructed access to both the splitter system and eddy current rotor. This innovative feature also enables the TMS 320 to fold within a 3m wide transport width and places it as a market leader.

Being electrically driven, the TMS 320 can be powered by either the onboard gen set or using mains electricity supply. This flexibility provides the end user with reduced operating costs, fuel usage, emissions and noise levels. The TMS 320 is available in both tracked and static variants. The tracked unit is fitted with heavy-duty crawler tracks and offers excellent site mobility, making it a great solution for difficult terrain.

• User friendly colour display offering simple operation and diagnostics
• Customisable settings allow operators to tailor the machine for specific applications
• 1.9m (6' 3") x 2.4m (7' 10") highly aggressive vibrating pan feeder with low throw and high G to maximise material spread and feed
• Variable speed 2m (6' 7") wide high strength neodymium radial pole drum for optimal ferrous metal recovery
• 22 pole neodymium eddy current rotor surrounded with an ultra-thin carbon fibre shell to maximise non-ferrous metal recovery
• Low noise 60kVa generator offering excellent fuel consumption and serviceability
• Change over switch as standard to allow the use of onsite mains power
• Movable splitter box allowing optimal material flow whilst enabling the machine to fold within 3m wide transport width
• Unrivalled maintenance access

• Waste
• Compost
• Biomass
• IBA
