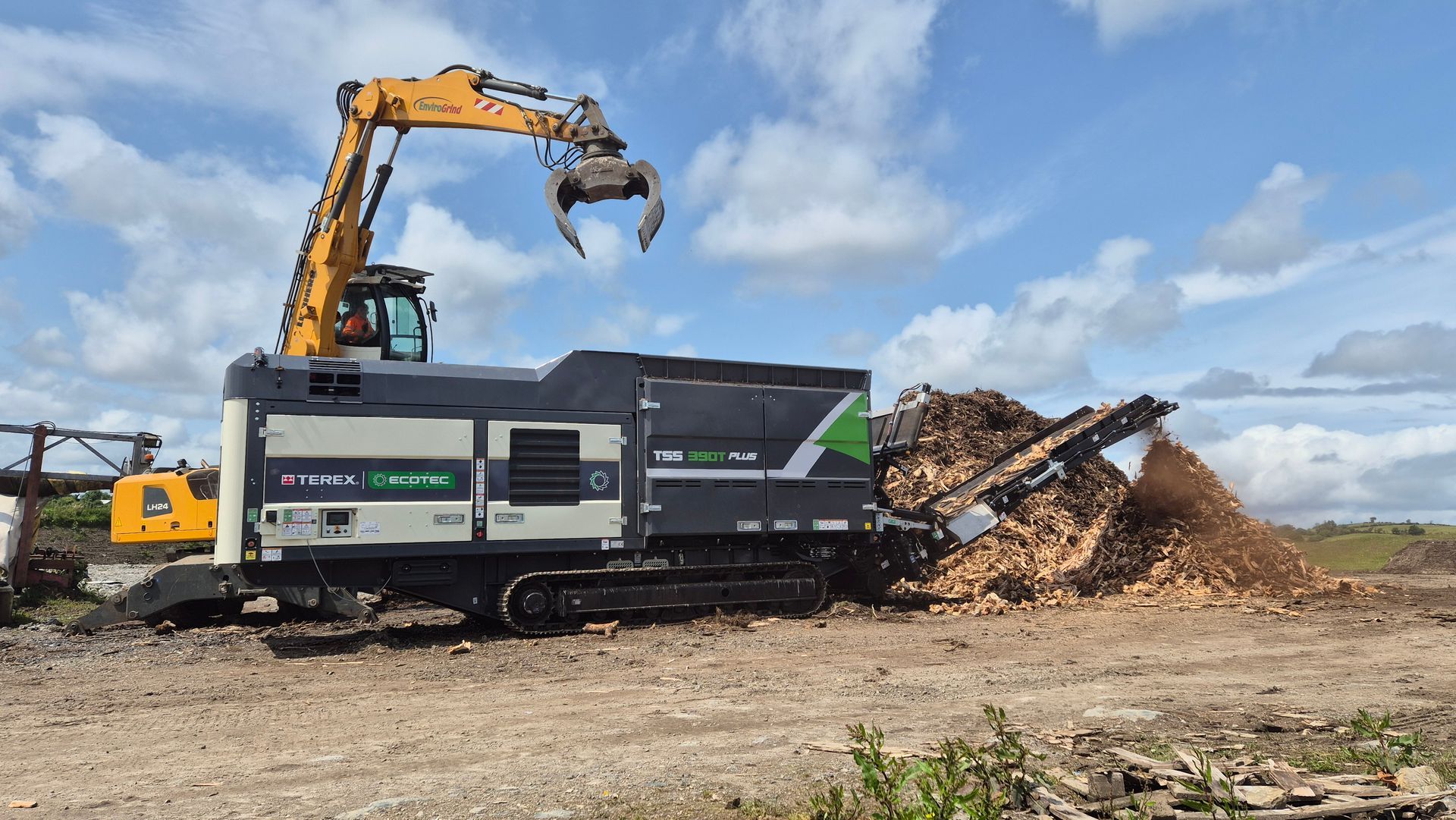

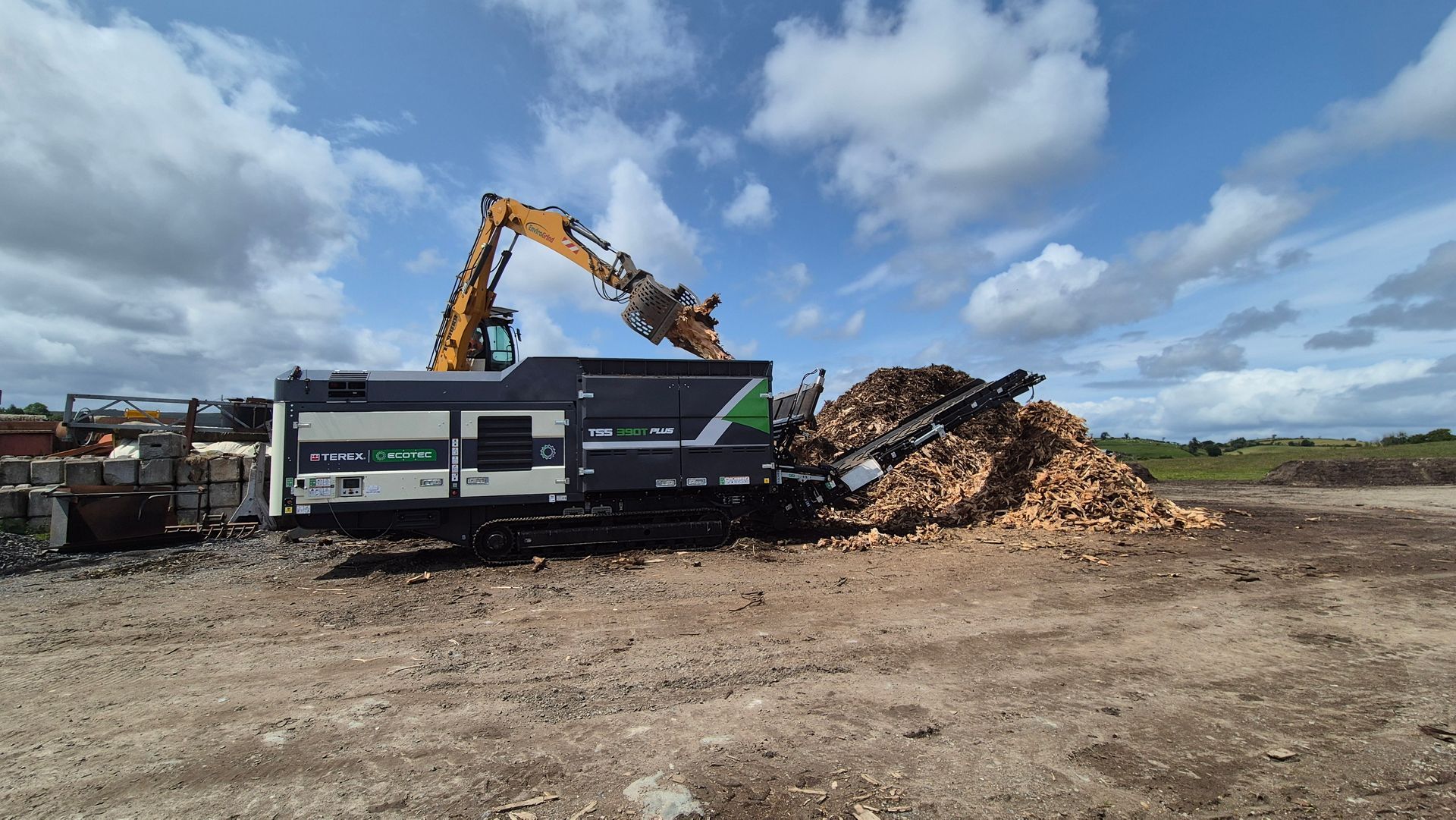

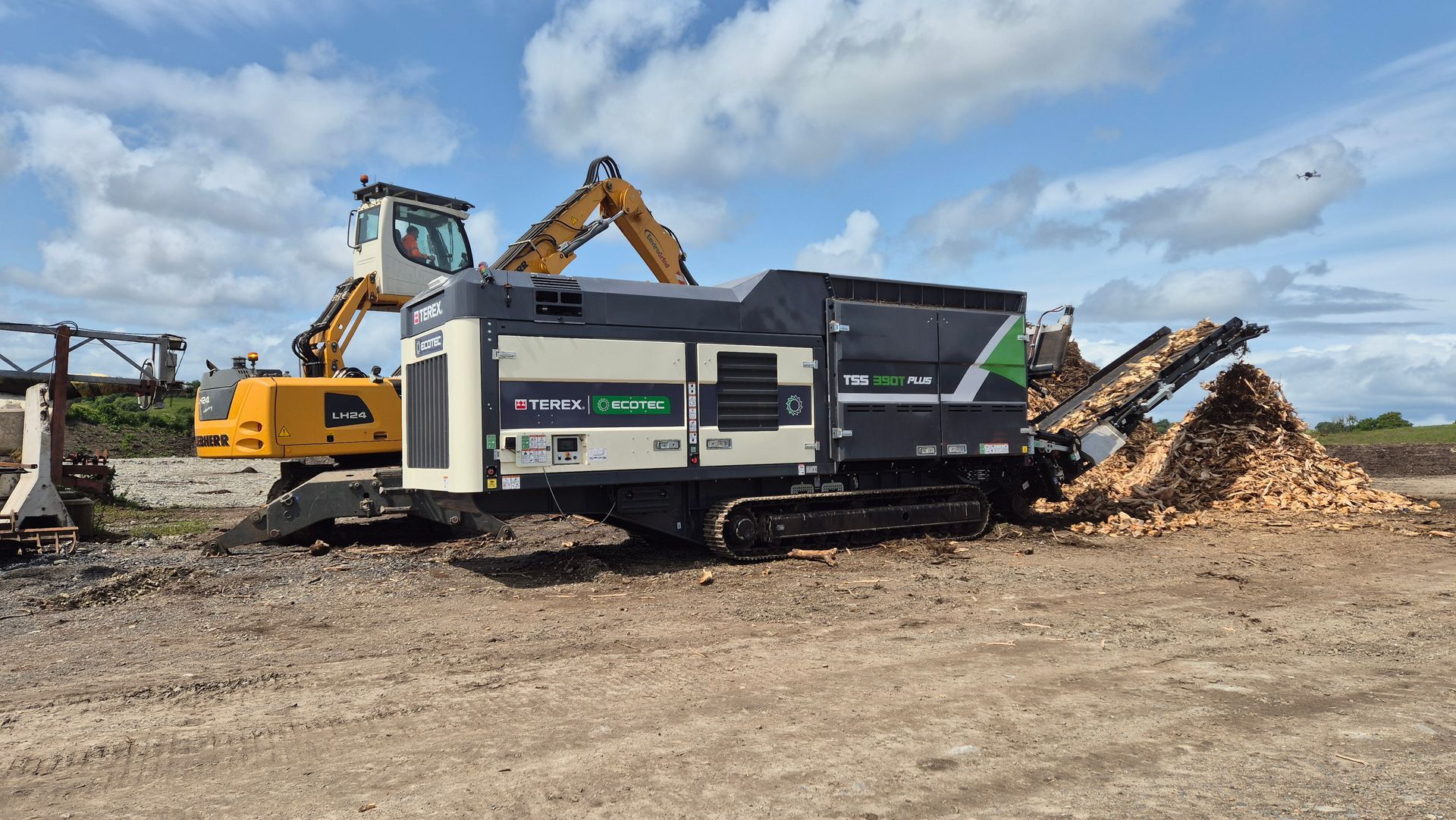

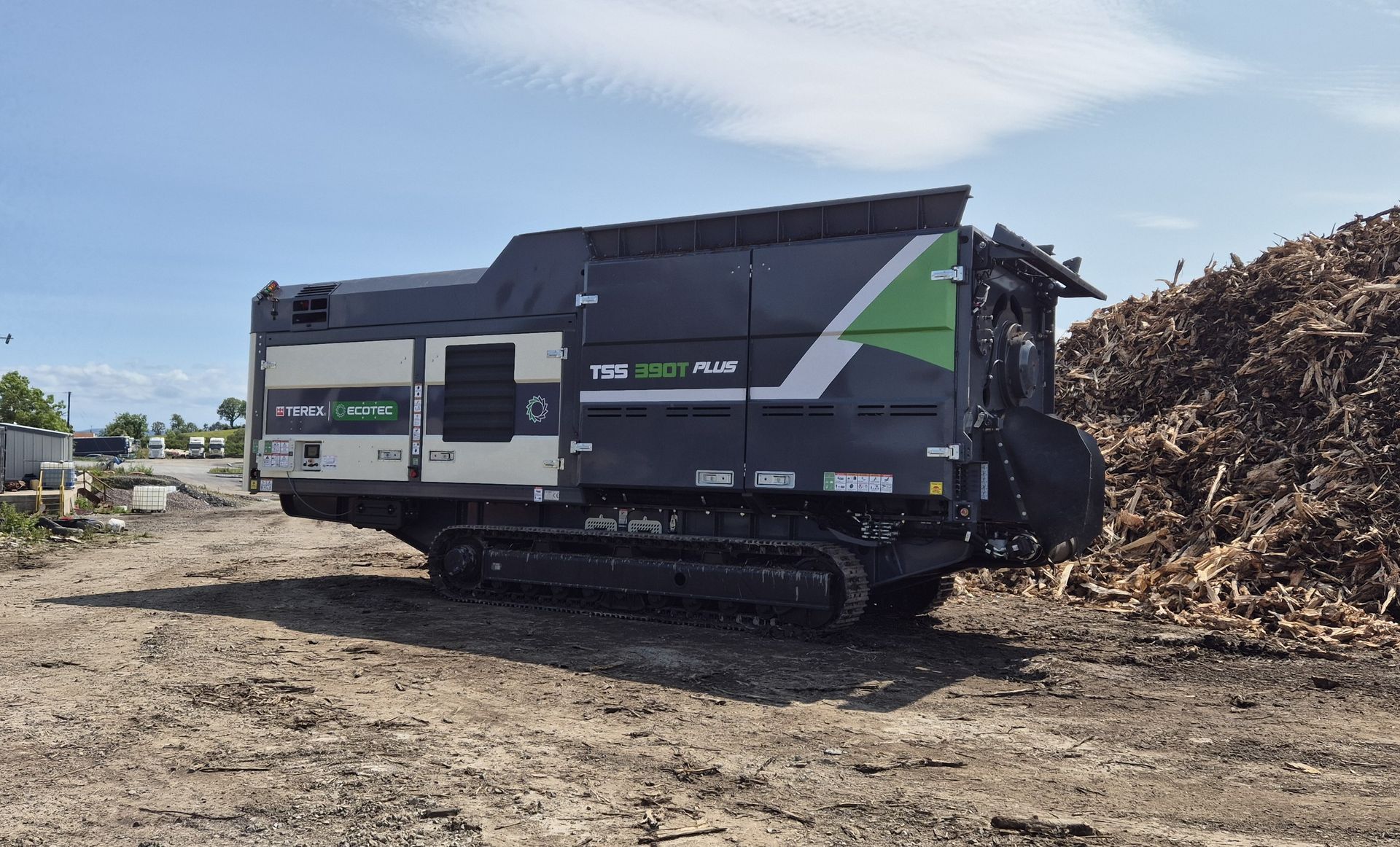

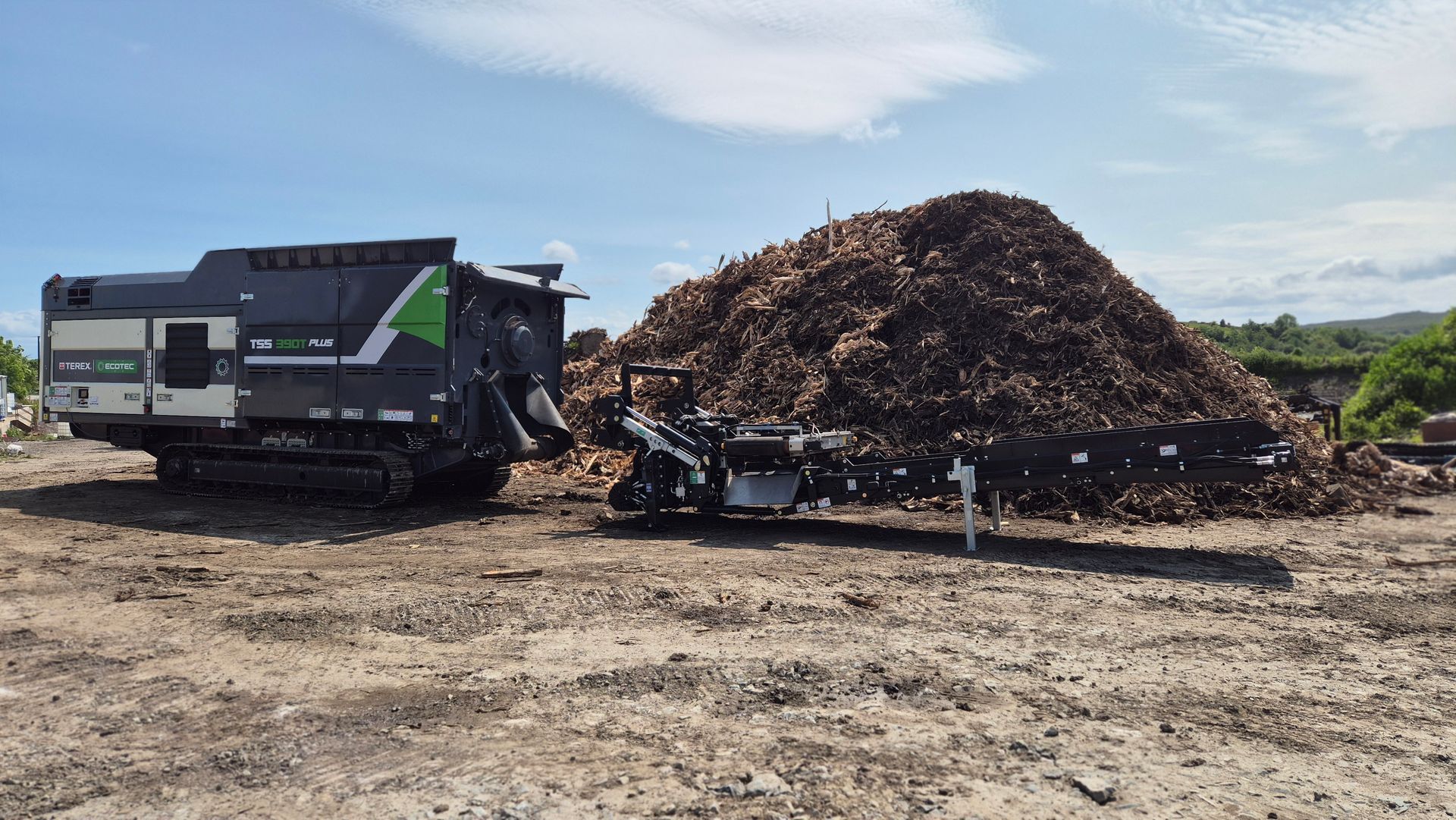

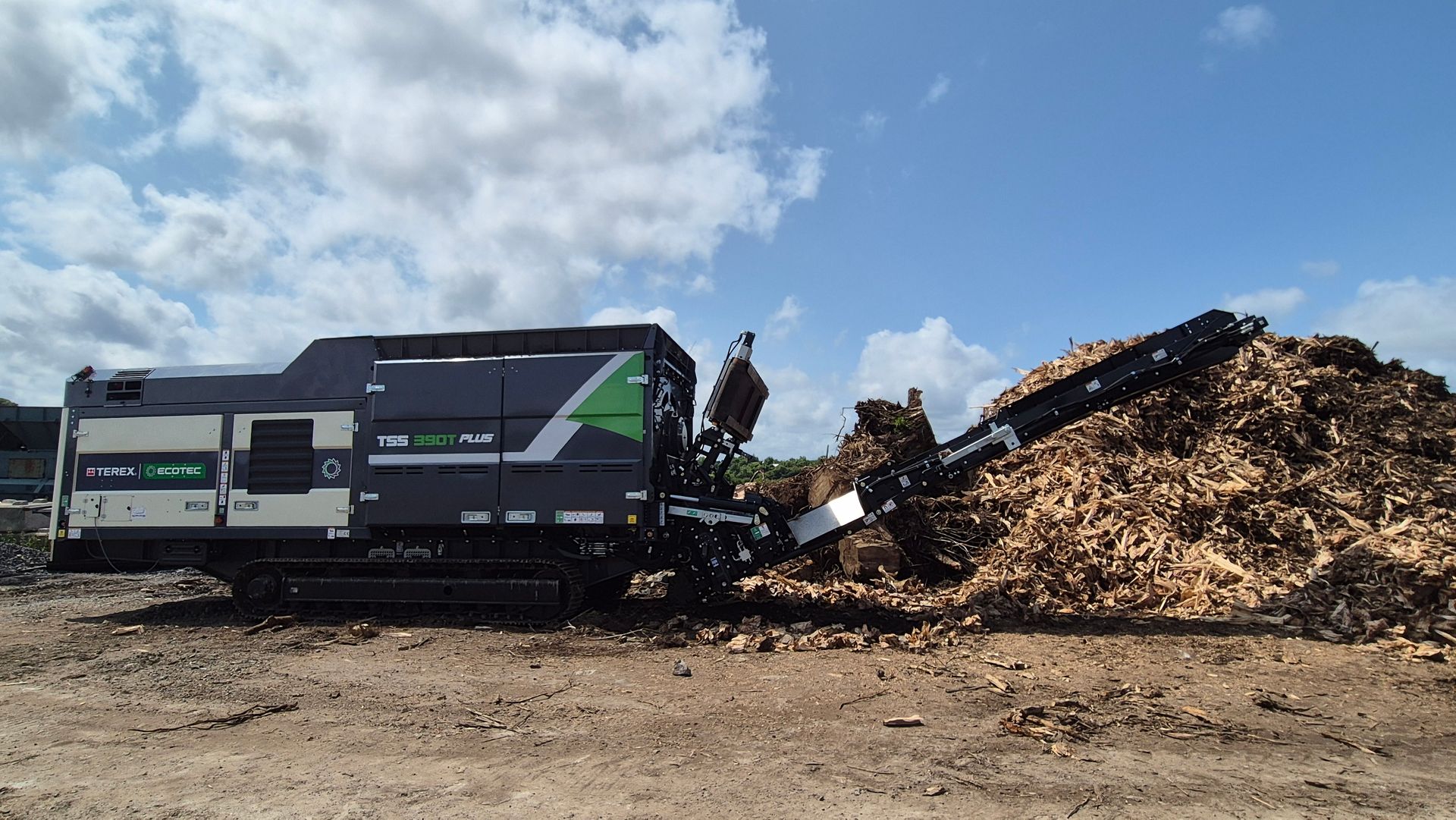

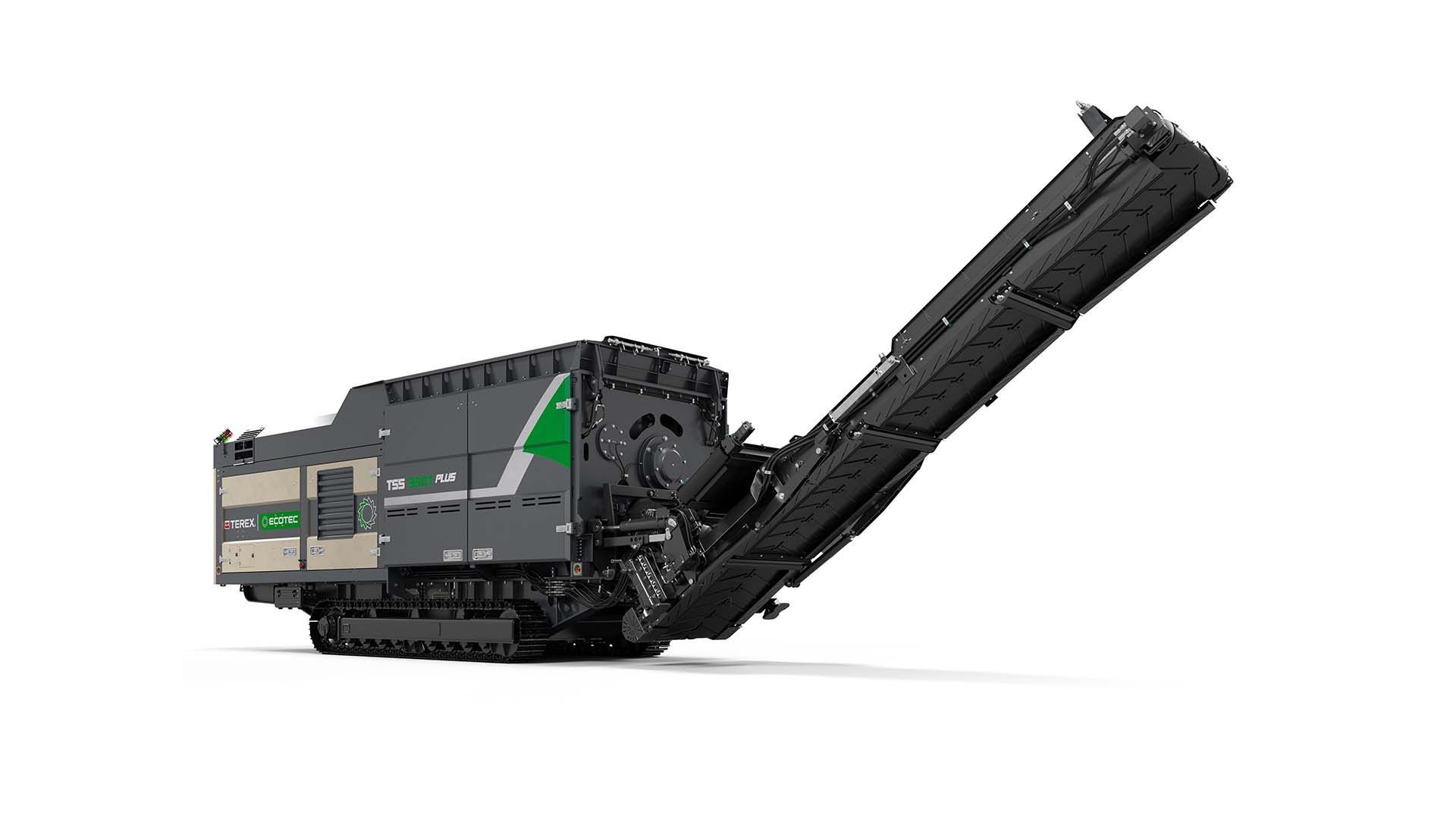

TSS 390 Plus Slow Speed Shredder

TSS 390 Plus Slow Speed Shredder is the latest innovation for the recycling industry. Engineered to retain the core design principals of the TSS 390 and incorporating advanced new features, this single shaft shredder is Built to Handle More, with the ability to process a broader range of materials - delivering greater versatility and more effective shredding. Designed with the operator in mind, the TSS 390 Plus offers the perfect blend of performance, efficiency and serviceability.

The TSS 390 Plus shares all the key features of the TSS 390. These include the in-house-designed shredding chamber with a hydrostatically driven shredding shaft offering full-speed reverse. Combined with customizable shredding programs, this provides improved shaft cleaning in difficult applications, reducing wrappage and optimizing throughput. The chamber also features a hydraulically adjustable counter comb, allowing simple adjustment of piece size. The comb can operate in release mode for uninterrupted shredding or in fixed mode for applications where a precise piece size is critical. With double-sided access, chamber maintenance can be carried out with ease, maximizing uptime.

However, the key design enhancement to the TSS 390 Plus is the increased under-chamber clearance. This higher discharge channel (820 mm) ensures that large, coarse, bulky shredded material can clear the machine with ease. Increased under-chamber clearance results in increased application flexibility, making the TSS 390 Plus suitable for bulk volume reduction while still being able to produce a controlled piece size.

Being designed with bulk volume reduction in mind, the TSS 390 Plus comes as standard with an 18-tooth shaft, providing increased torque per tooth tip, which is particularly beneficial for tough applications and coarse shred. However, the optional 36-tooth shaft can be supplied if required.

With improved hopper capacity and geometry, the TSS 390 Plus can easily accept long, bulky materials into the shredding chamber, improving the material feed process as well as maximizing throughput.

An innovative design feature is the quick-release product conveyor system. The conveyor can be removed within minutes by a single operator, without the need for tools, improving service access.

Designed with the operator in mind, the TSS 390 Plus offers the perfect blend of performance, efficiency and serviceability.

• Excellent service access reduces operator downtime
• User friendly colour display offering simple operation and diagnostics
• Customisable shredding programs allow operators to tailor the machine for specific applications
• A powerful Scania engine with a low operating speed combined with an efficient hydrostatic drive creates a very responsive shredding action with protection against unshreddable contaminants and also offers full speed reverse
• Expertly designed in-house shredding chamber
• 3m long shaft made from heavy duty steel with an AR® lining and bolt on teeth
• Multiple shredding chamber configurations
• Improved hopper geometry enables efficient feeding of long, bulky materials into the shredding chamber
• Hydraulically adjusted counter comb allowing product size to be adjusted/altered to specific requirements
• Comb can be operated in fixed position for specific product size or release mode to allow contaminants to pass
• High strength overband magnet with remote hydraulic raise/lower function
• Quick release product conveyor can be removed within minutes by a single operator, with no tools required, improving service access
• Excellent chamber access on both sides of the machine for servicing and replacement of teeth
• Increased under chamber clearance ensures that large material can clear the machine with ease

• Bulky Waste
• Commercial Waste
• Waste Wood
• Green Waste
• Forestry Waste
• Timber Waste
