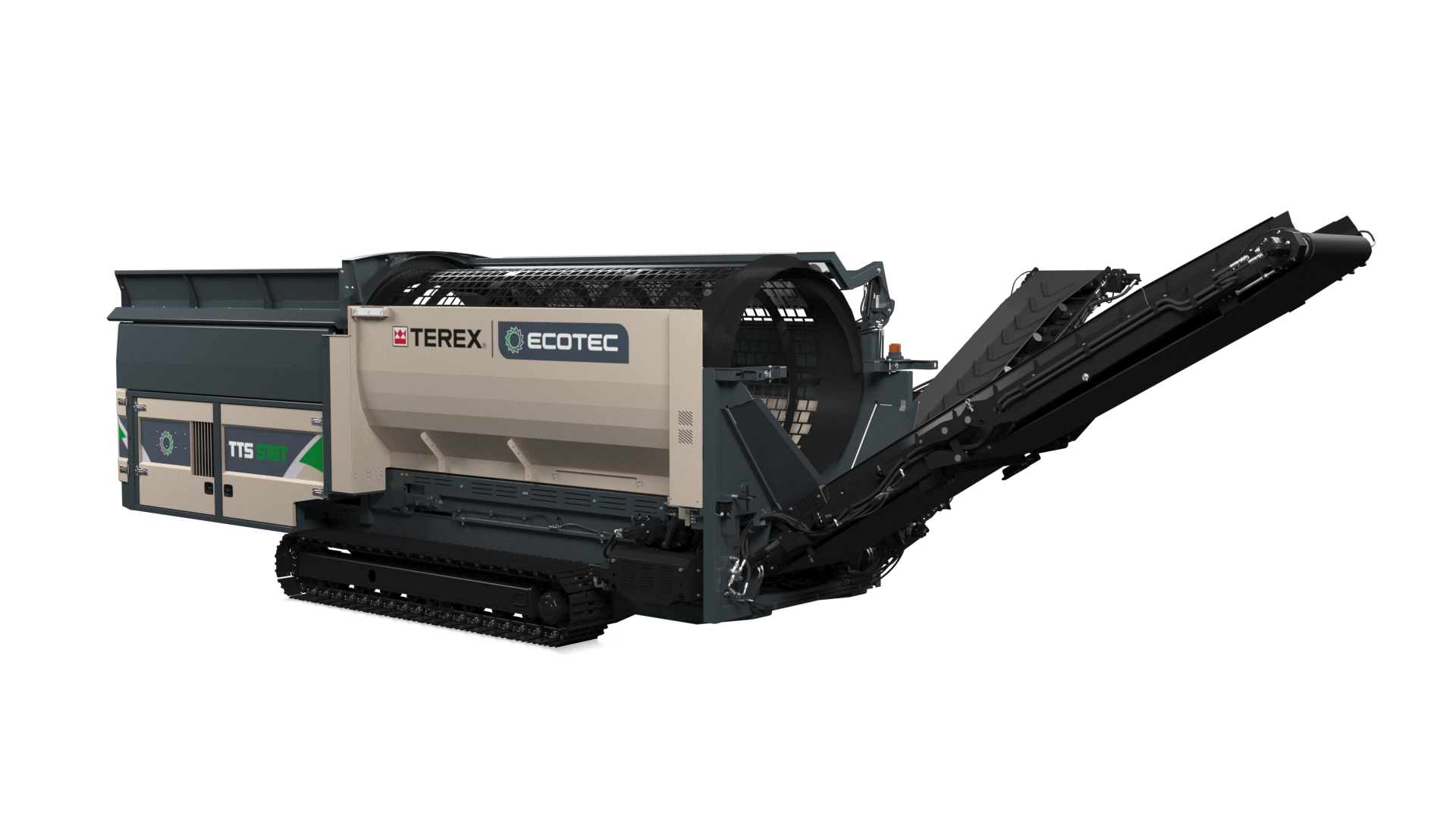

TTS 518 Trommel

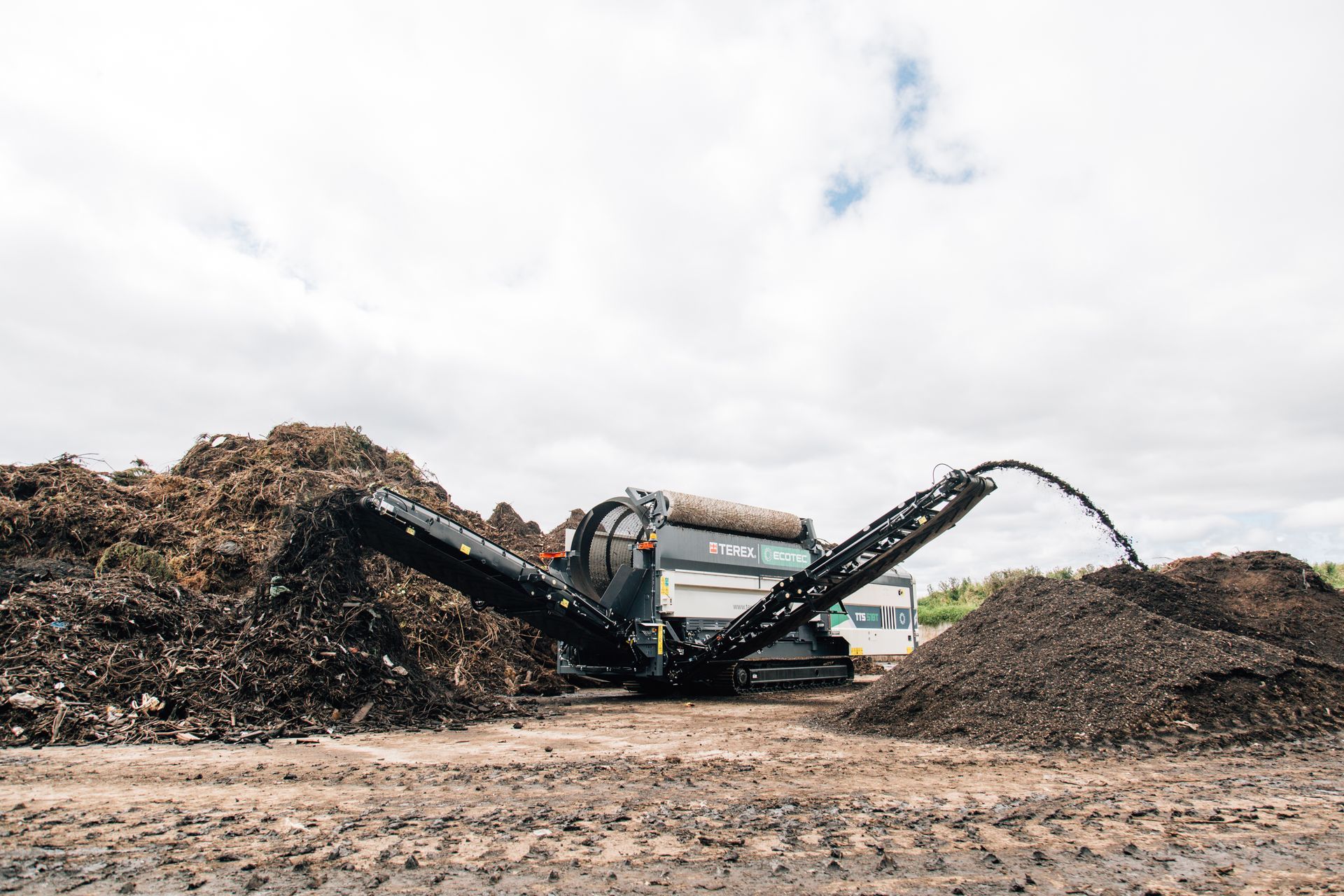

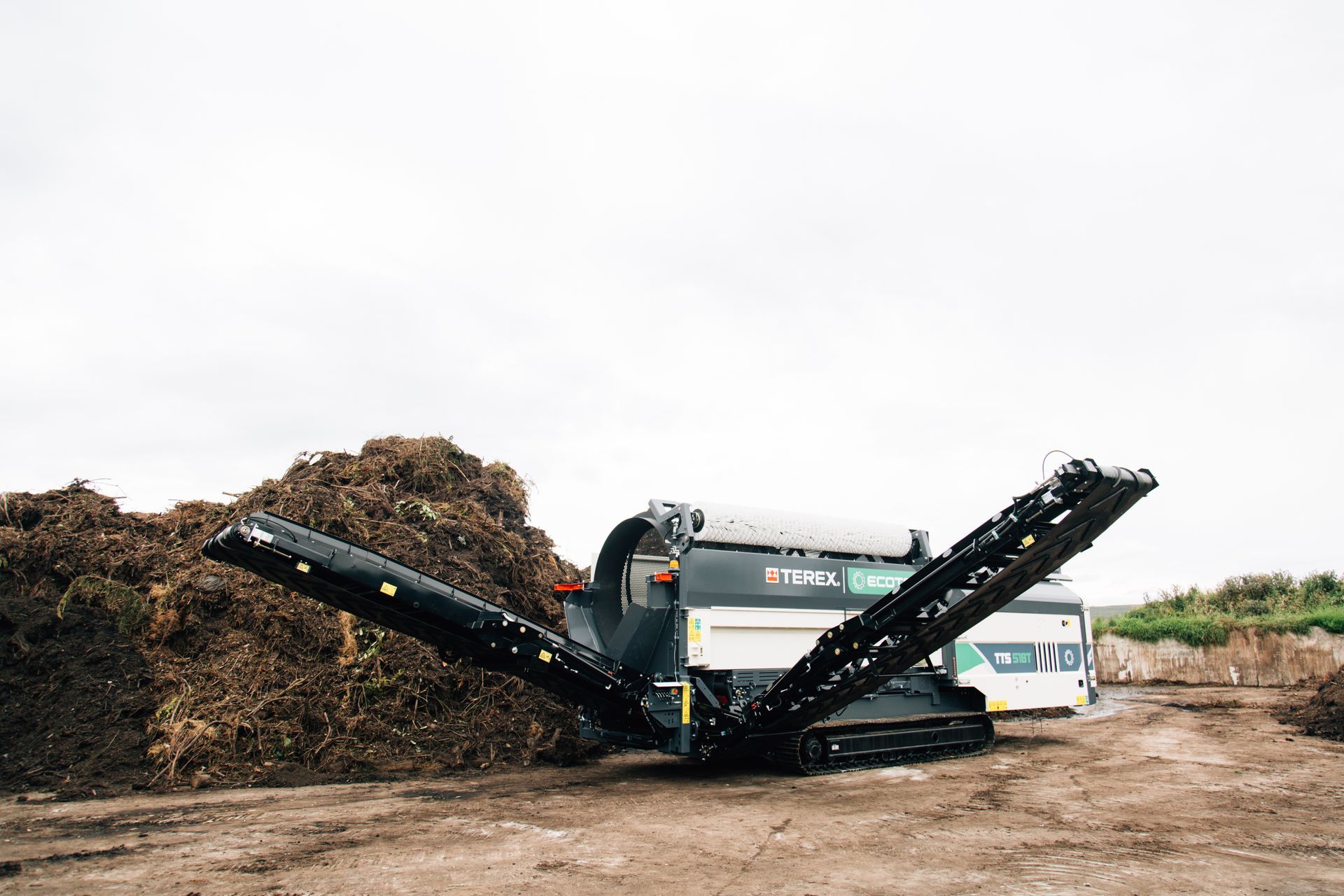

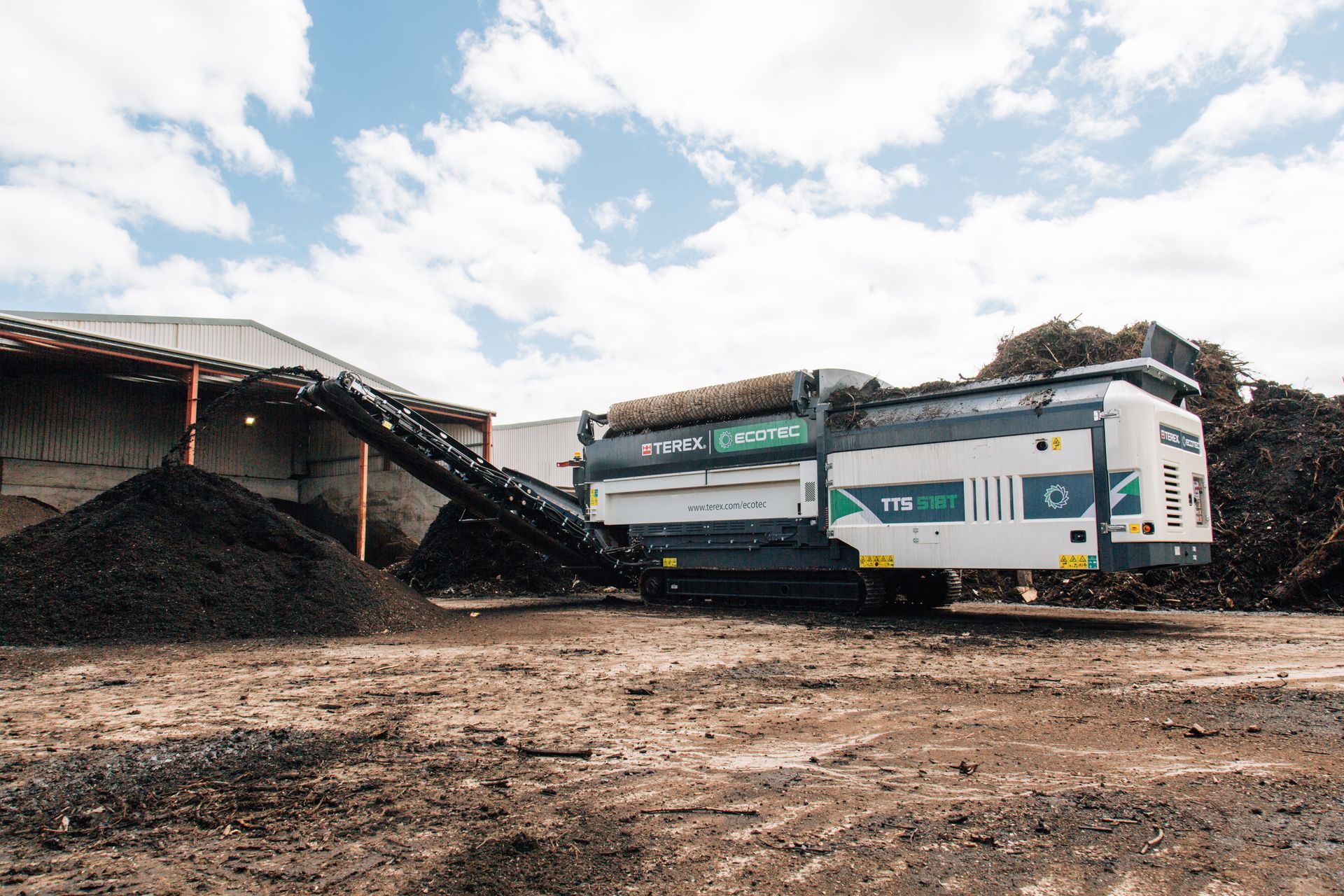

Compact yet uncompromised, the TTS 518 has been intuitively designed offering operators unrivalled application flexibility, production rates and serviceability. Fully equipped with a Stage V/Tier 4 engine (Dual Certified) and the latest intelligent screening technology, the TTS 518 delivers a superior and cost-efficient endproduct. Ideal for small to medium sized operations where space may be limited, the highly versatile TTS 518 is available in both tracked and wheeled variants and can screen a variety of material including compost, biomass, soil, gravel and waste.

The TTS 518 features an intuitive control system and ‘push to start’ buttons allowing the operator to effortlessly configure the machine to suit the required application. The intelligent feed control system continually monitors the machine adjusting the feeder speed to optimise screening performance and throughput. Being driven at the head, the feeder provides an excellent and continuous feed rate, reducing slippage in difficult applications. The feeder has also been designed as a slide out cassette which allows for easy maintenance and quick and simple belt changing. The clear tunnel area underneath the feeder prevents material build up and allows any material in this area to drop directly onto the ground.

Providing a total screening area of 23m² the TTS 518 is fitted with a 1.8m x 4.7m horizontal drum with spiral design. With double-sided drum access via 180 degrees opening side doors, maintenance and drum changes can be carried out with ease. The TTS 518 has been designed to accept a number of other trommel manufacturers’ drums, enabling it to integrate seamlessly into an operators existing fleet.

The TTS 518 is fully equipped with the latest Stage V engine requirements and has been designed to provide excellent fuel efficiency and low operating costs. The swing out engine cradle provides unprecedented service access enabling daily checks and maintenance to be carried out safely from ground level. All the conveyors are fully modular allowing each to be removed independently, with the fines and oversize also lowering to ground level for maintenance.

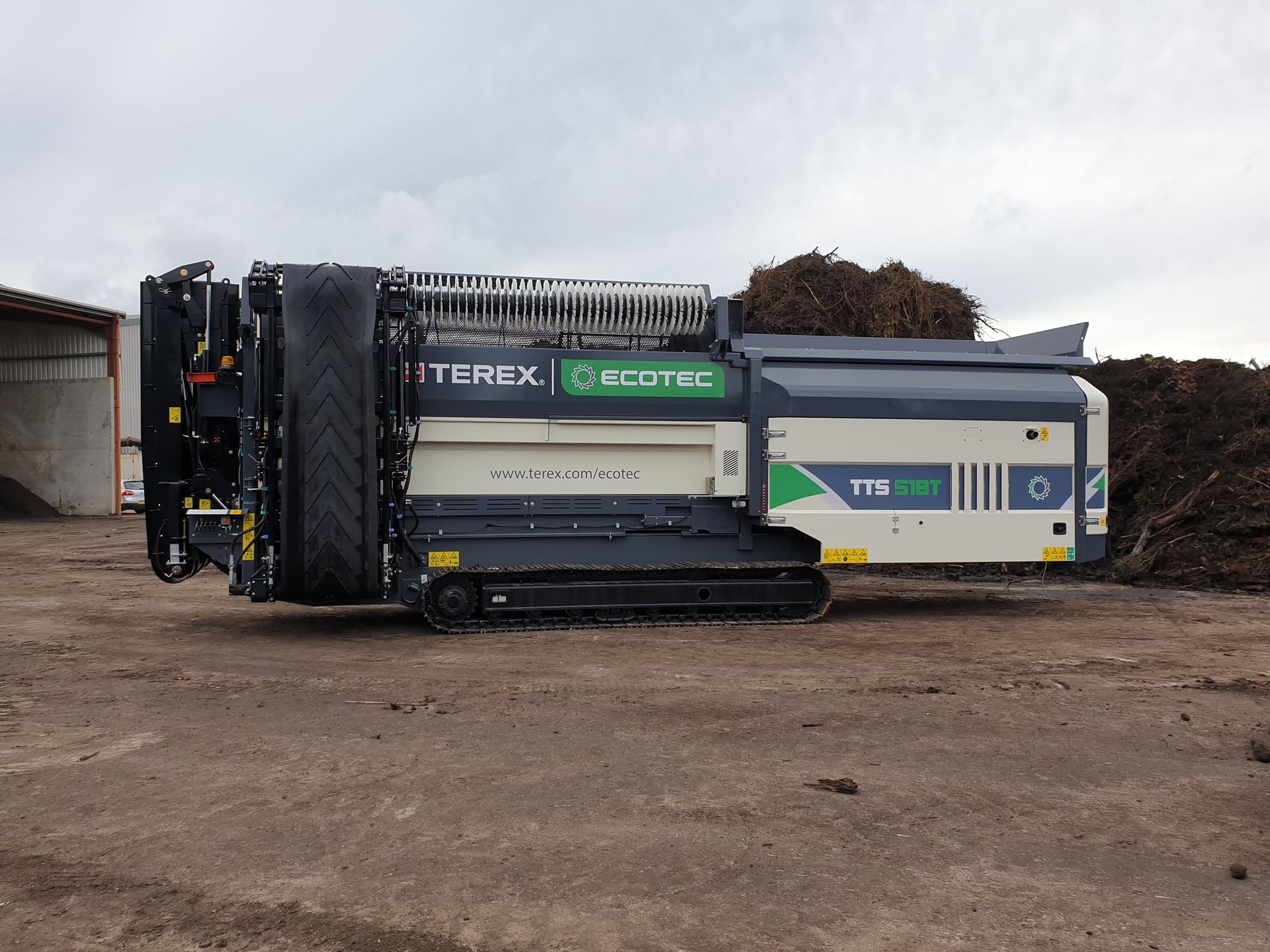

An adaptable trommel suitable for all market conditions, the TTS 518 is available as a full EU Whole Vehicle Type Approved wheeled unit or as a tracked unit where increased site mobility is required.

• All conveyors are built to an individual modular design reducing maintenance downtime
• Fines and oversize conveyors lower to ground level hydraulically
• Advanced sealing and feedboot design ensure smooth material transfer and stockpiling
• Double-sided unrestricted drum access via two large swing-out doors, enabling easy maintenance and cleaning
• Easily replaceable 4.7m (15’5’’) x 1.8m (5’1’’) punch plate drum which is compatible with the Doppstadt SM 518
• Advanced feeder control system offering efficient operation and maximised output
• Fully sealed feeder reducing spillage
• The feeder belt is driven at the head drum via a powerful recessed gearbox and hydraulic motor reducing belt spillage
• Swing out engine cradle providing operators with unrivalled maintenance access
• User-friendly push button control system with Automatic Start / Stop function and Automatic Feeder Mode
• Low engine speed for reduced noise and fuel consumption

• Compost
• Biomass
• Waste Wood Shredded
• Soil, Gravel, Sand
• Bark, Wood Chips
