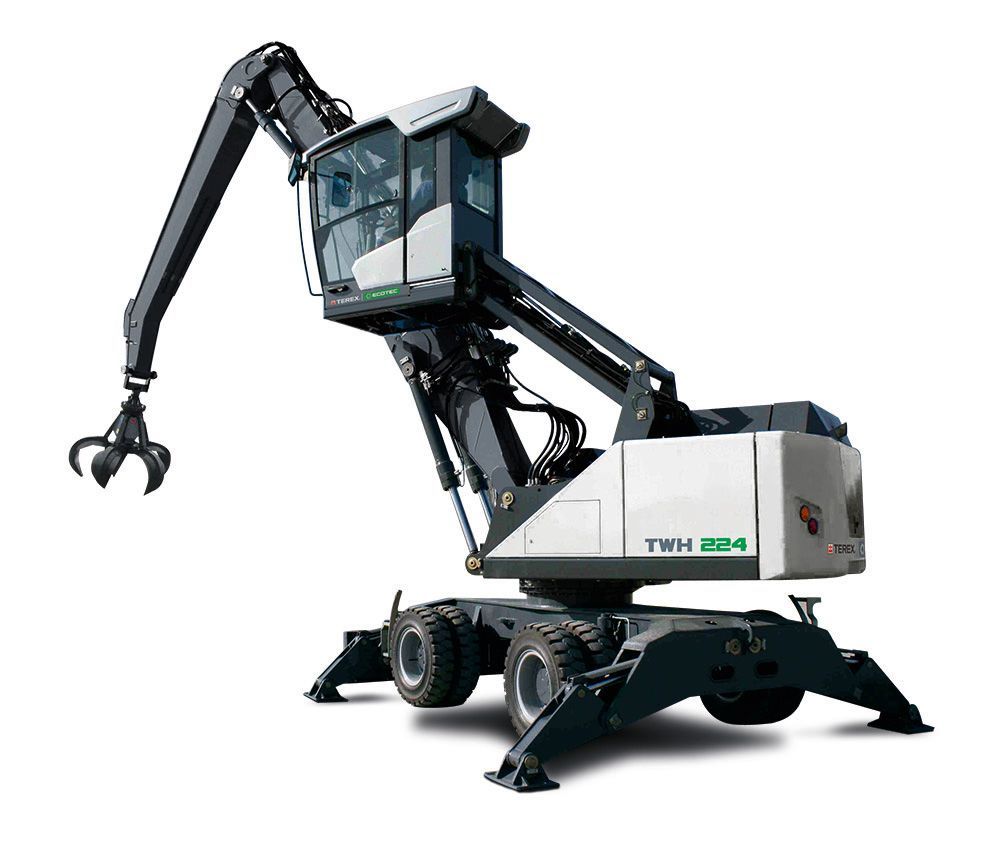

TWH 224 Waste Handler

• Manufacturer and Model: DEUTZ TCD 4.1 L04
• Design: 4-cylinder in-line engine
• Functionality:

ㅤㅤㅤ•EU Stage V / US Tier 4: 4-cycle diesel, common rail direct injection, turbocharged with intercooler, controlled exhaust gas recirculation, diesel particulate filter with continuous regeneration and SCR catalytic converter

ㅤㅤㅤ•EU Stage IIIA / US Tier 3*: 4-cycle diesel, common rail direct injection, turbocharged with intercooler

• Engine Power: 115 kW
• Rated Speed: 2,000 rpm
• Displacement: 4.1 L
• Cooling System: Water and charge-air cooling with temperature-controlled fan speed
• Exhaust Emission Standard:

ㅤㅤㅤ•EU Stage V / US Tier 4

ㅤㅤㅤ•EU Stage IIIA / US Tier 3*

• Fuel Tank: 260 L Diesel
• DEF / Urea Tank:

ㅤㅤㅤ•EU Stage V / US Tier 4: 32 L AdBlue

* for low-regulated markets

• Power: 90 kW
• Total Connected Load: max. 118 kW
• Motor Start: Via soft start
• Optional Cable Reel: Up to 50 metres (other lengths on request)

• Alternator: 28 V / 100 A
• Operating Voltage: 24 V
• Battery: 2 × 12 V / 110 Ah / 750 A (according to EN)
• Lighting System: 2 × LED headlamps, turn indicators, and tail lights

• Hydrostatic travel drive via infinitely variable axial piston motor with directly mounted travel brake valve, two-speed manual gearshift, and 4-wheel drive
• Travel Speed, 1st Gear: Max. 5 kph
• Travel Speed, 2nd Gear: Max. 18 kph
• Gradeability: Max. 40%
• Turning Radius: 7.9 m

• Slewing Ring: Internally geared, double-row ball turning ring
• Drive: 2-stage planetary gear with integrated multi-disc brake
• Uppercarriage Swing Speed: 0–7.5 rpm, variable
• Slewing Lock: Electrically activated

• Front Axle: Planetary drive axle with integrated drum brake, rigidly mounted
• Rear Axle: Oscillating planetary drive rear axle with integrated drum brake and selectable oscillating lock
• Outriggers: 4-point stabilisers / 2-point stabilisers with support blade
• Tyres: 10.00-20 solid rubber with intermediate rings

• Service Brake: Hydraulic single-circuit braking system acting on all four wheel pairs (drum brakes)
• Parking Brake: Electrically operated spring-loaded drum brake at transmission, acting on both front and rear axles

• Maximum Pump Delivery Rate: 380 L/min
• Maximum Operating Pressure: 320 / 360 bar
• Hydraulic Oil Tank: 325 L

• Cab: Infinitely variable hydraulic height-adjustable cabin with sliding door, reinforced steel structure, soundproofed and heat-insulated panoramic windows for best all-round visibility, front window with roller blind, and glass panel in the cabin roof with sliding blind. Heating and air conditioning, separate heat exchangers, fresh and recirculated air filters. Multifunction touch display, bottle holder, paper clip, and multiple storage and mounting options. Digital radio (DAB+, USB, Bluetooth, and hands-free), USB charging station 5V. Vertically Adjustable Cabin: Viewing height of 5.3 m
• Air Conditioning: Automatic air conditioning. Infinitely variable heating with 8-speed fan, 10 adjustable air nozzles, and 3 defroster nozzles
• Operator’s Seat: Air-cushioned comfort seat with swinging armrests / joysticks, safety belt, lumbar support, and headrest. Universal adjustment options for seat position, seat inclination, and seat cushion arrangement in relation to the armrests and joysticks for fatigue-free operation
• Monitoring: Ergonomically arranged, glare-free multifunction display. Automatic monitoring and storage of deviating operating states, including all hydraulic oil filters, hydraulic oil temperature, coolant and charge-air temperature, diesel particulate filter loading, and steering, with visual and audible warnings. Diagnostic option for individual sensors via the multifunction display. Rear-view and right-side-view cameras with separate monitor
• Noise Level (EU Stage V / US Tier 4):

ㅤㅤㅤ•Sound Power Level (Ambience)  acc. to Directive 2000/14/EC

ㅤㅤㅤㅤㅤㅤ•LWA 99 dB(A) (metered)

ㅤㅤㅤㅤㅤㅤ•LWA 100 dB(A) (guaranteed)

ㅤㅤㅤ•Sound Pressure Level (Inside the Cabin) acc. to standard ISO 6396

ㅤㅤㅤㅤㅤㅤ•LpA 72 dB(A)

• Noise Level (EU Stage IIIA / US Tier 3*):

ㅤㅤㅤ•Sound Power Level (Ambience)  acc. to Directive 2000/14/EC

ㅤㅤㅤㅤㅤㅤ•LWA 99.1 dB(A) (metered)

ㅤㅤㅤㅤㅤㅤ•LWA 102 dB(A) (guaranteed)

ㅤㅤㅤ•Sound Pressure Level (Inside the Cabin) acc. to standard ISO 6396

ㅤㅤㅤㅤㅤㅤ•LpA 74 dB(A)

• Vibrations

ㅤㅤㅤ•Weighted RMS Value of Acceleration of Upper Limbs Under 2.5 m/s² (98 in/s²)

ㅤㅤㅤ•Weighted Effective Value of Acceleration for Seat and Feet Under 0.5 m/s² (20 in/s²)

• Certified in accordance with CE regulations

* for low-regulated markets
