Falcon 1630

Overview

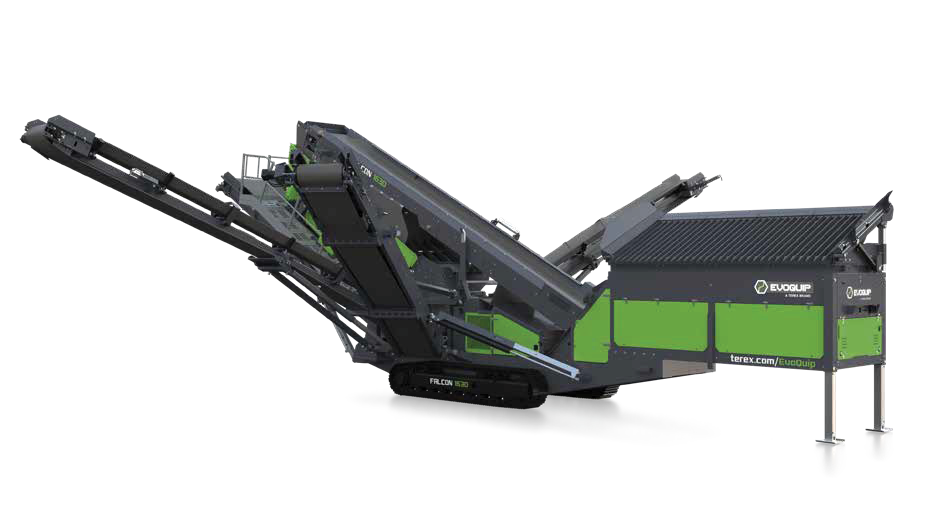

The Falcon 1630 finishing screen is an easily transportable machine that offers operators rapid set up and tear down times.


The screen-box features three decks giving a large screening area of 170ft2 (15.7 m²) to provide efficient screening and high capacity.


The screen-box features quick wedge tensioning, access holes and bottom deck hydraulic tensioning system to reduce time required for mesh changes.


All four discharge conveyors are adjustable and hydraulically fold for transport.


The fourth product ‘oversize’ conveyor has variable tilt and side slew to accurately discharge material for recirculation and stockpiling.

features

  • High capacity up to 500 tph (depending on feed size, mesh size & material type)
  • Maximum feed size 150mm
  • Engine protection shutdown system
  • Powerunit featuring a transverse engine arrangement to aid access & serviceability
  • Heavy duty single shaft incline screenbox with adjustable stroke, angle & speed
  • Hydraulic screen tensioning
  • Screen mesh access system for quicker mesh changes
  • Maximum mobility with heavy duty, low ground pressure crawler tracks
  • Removable heavy duty pendant remote control system
  • Quick set up time
  • High performance hydraulic system - cast iron pumps & motors complete with hydraulic cooler
  • Low profile double deck vibrating grid option with radio remote control tipping grid rams, angle adjustable & fully riveted construction
  • Hydraulically folding conveyors for transport
  • Fines conveyor drop down facility to aid bottom deck mesh access

APPLICATIONS

  • Sand & Gravel
  • Top Soil
  • C&D Waste
  • Processed Minerals
  • River Rock
  • Composted Materials
  • Wood by-products
  • Overburden

TEchnical specifications

  • 4.85m (15' 10") long tipping grid as standard for primary scalping
  • Feed height (to top of tipping grid): 3.7m (12' 2")
  • Radio remote controlled as standard
  • Variable angle
  • Standard 102mm (4")grid aperture with optional 152mm (6") available

  • 4.85m (15' 10") long hopper and belt feeder
  • Feed height: 3.65m (11' 11") (side)
  • 3.33m (10' 11") (rear)
  • 1050mm (42”) wide 3 ply feeder belt
  • Hydraulic Drive via high torque gear box
  • Variable speed
  • Target area: 4.85m (15’ 10”) long x 1.85m (6’) wide
  • Grid aperture: 102mm (4’’)
  • Hopper capacity: 7.5m3 (9.8 cu. yd.)
  • Adjustable angle tipping grid with integral loading and wing plates

Triple deck incline screen:

  • 4.8m x 1.53m (16’ x 5’) 3 deck incline screen
  • 4.8m x 1.53m (16’ x 5’) top & middle deck
  • 4.3m x 1.53m (14’ x 5’) bottom deck
  • Highly aggressive screen drive
  • Grease filled 2 bearing screenbox
  • 4 of media sections (side tension) top/middle deck
  • 2 of media sections (end tension) bottom deck
  • Hydraulic screen angle adjustment 20° - 30°
  • Hydraulic screen tensioning on bottom deck
  • Galvanised walkways on both sides of screen

MAIN CONVEYOR

  • 1050mm (42”) 3 ply plain belt
  • 10.17m (33’ 4”) drum centres
  • 286mm (11”) drum diameter (drive)
  • 270mm (10”) drum diameter (tail)
  • Hydraulically adjustable conveyor, fully skirted & sealed

MID-OVERS & MID-FINES

  • 650mm (26”) wide 3 ply chevron belt
  • 9.67m (31’ 8”) drum centres
  • 286mm (11”) drum diameter (drive)
  • 270mm (10”) drum diameter (tail)
  • 4.72m (15’ 6”) stockpile height (to drum centre)
  • 157m3 (205yd3) stockpile volume
  • Variable speed control
  • Hydraulically folding
  • Fixed angle: 25º

OVERSIZE CONVEYOR

  • 650mm (26”) wide 3 ply chevron belt
  • 3.93m (12’ 11”) stockpile height (to drum centre)
  • 90m3 (118 cu. yd.) stockpile volume
  • Variable speed control
  • Hydraulic folding
  • Fixed angle: 25º

FINES CONVEYOR

  • 1200mm (48”) wide 3 ply plain belt
  • 4.23m (13’ 10’’) stockpile height (to drum centre)
  • 113m3 (148 cu. yd.) stockpile volume
  • Variable speed
  • Hydraulically folding
  • Chevron belt as option
  • Angle adjustment: 0º - 25º

TIER 3

  • CAT C4.4
  • Engine Power: 83kW (111Hp)
  • Engine Speed: 2200rpm

STAGE V

  • CAT C3.6
  • Engine Power: 82kW (110Hp)
  • Engine Speed: 1800rpm

  • User friendly powerunit
  • Access to both sides of the engine
  • Visual Electronic Control
  • Hydraulic Tank: 564 litres / 124 UK gal / 149 US gal
  • Fuel Tank: 336 litres / 72 UK gal / 88 US gal)

  • Shoe Width: 400mm (16")
  • Sprocket Centres: 3.28m (10' 8")
  • Speed: 0.9km/p
  • Gradeability: 27o

  • Custom colour machine
  • Quick release wedge tensioning for top deck
  • Vibrating grid discharge chute
  • Radio controlled tracking
  • Grid aperture: 152mm (6”)
  • Hydraulic oil grade 68
  • Double Deck Vibrating Grid (see page 14)
  • Extended Auxiliary Conveyor

DOUBLE DECK VIBRATING GRID (OPTION)

  • Target area: 3.8m (12’ 6”) long x 2.2m (7’ 3”) wide
  • Bottom deck screen size:2 of 1.9m (6’ 3’’) x 1.5m (4’ 11’’)
  • Working angle: 10º - 20º (hydraulic adjustable)
  • Tip angle: 45º max
  • Feed in height: 3.73m (12’ 2”) (side)
  • Feed in height: 3.93m (12’ 10”) (rear)
  • Transport height: 3.98m (13’)
  • Total weight: 4,000kg (8,818lbs)

WORKING

  • Length: 17.22m (56' 6")
  • Width: 17.32m (56' 10")
  • Height: 5.89m (19' 4")
  • Weight: 29,8000 kgs (65,698lbs)

TRANSPORT

  • Length: 16.53m (54' 3")
  • Width: 3m (9' 10")
  • Height: 3.4m (11' 3")
