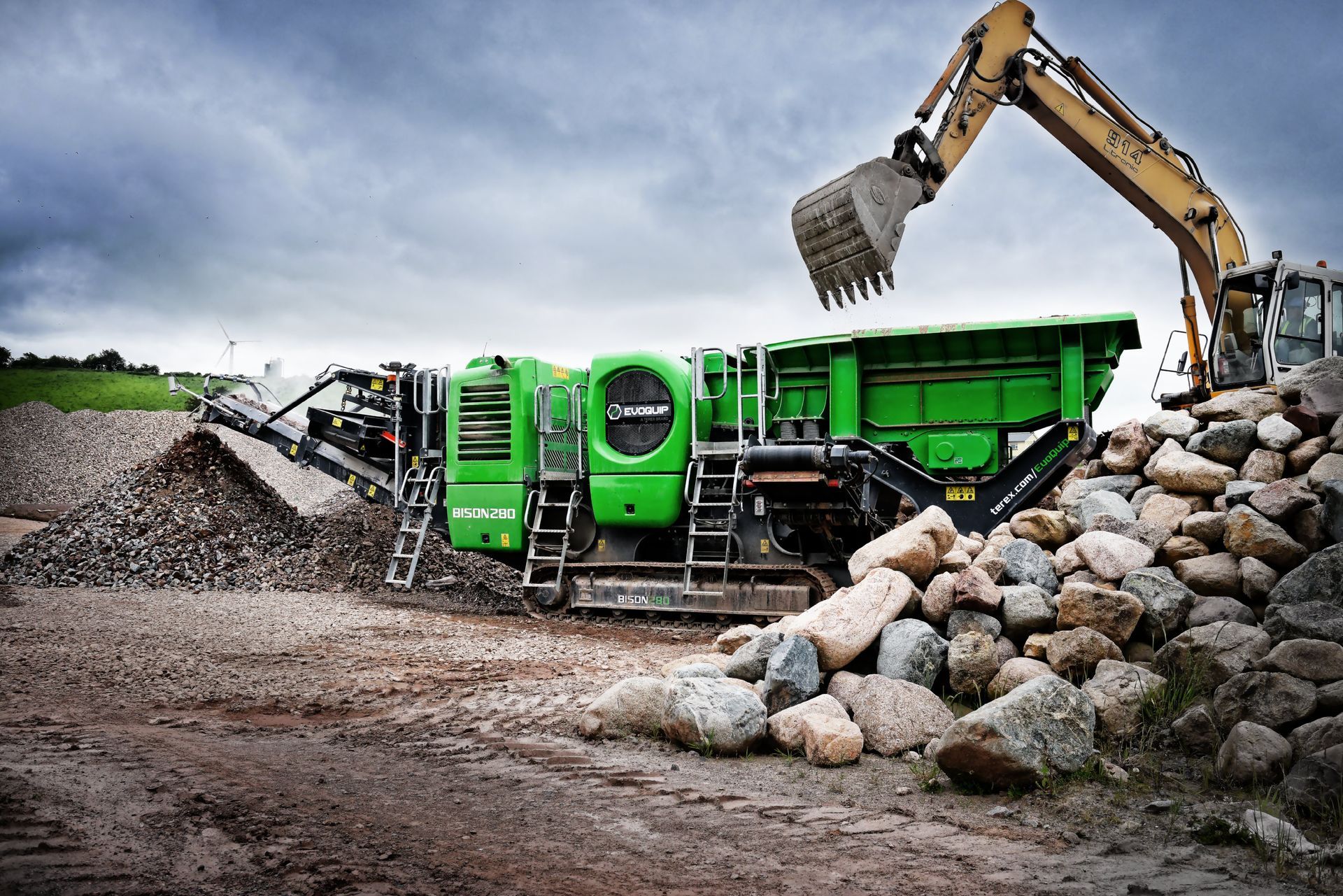

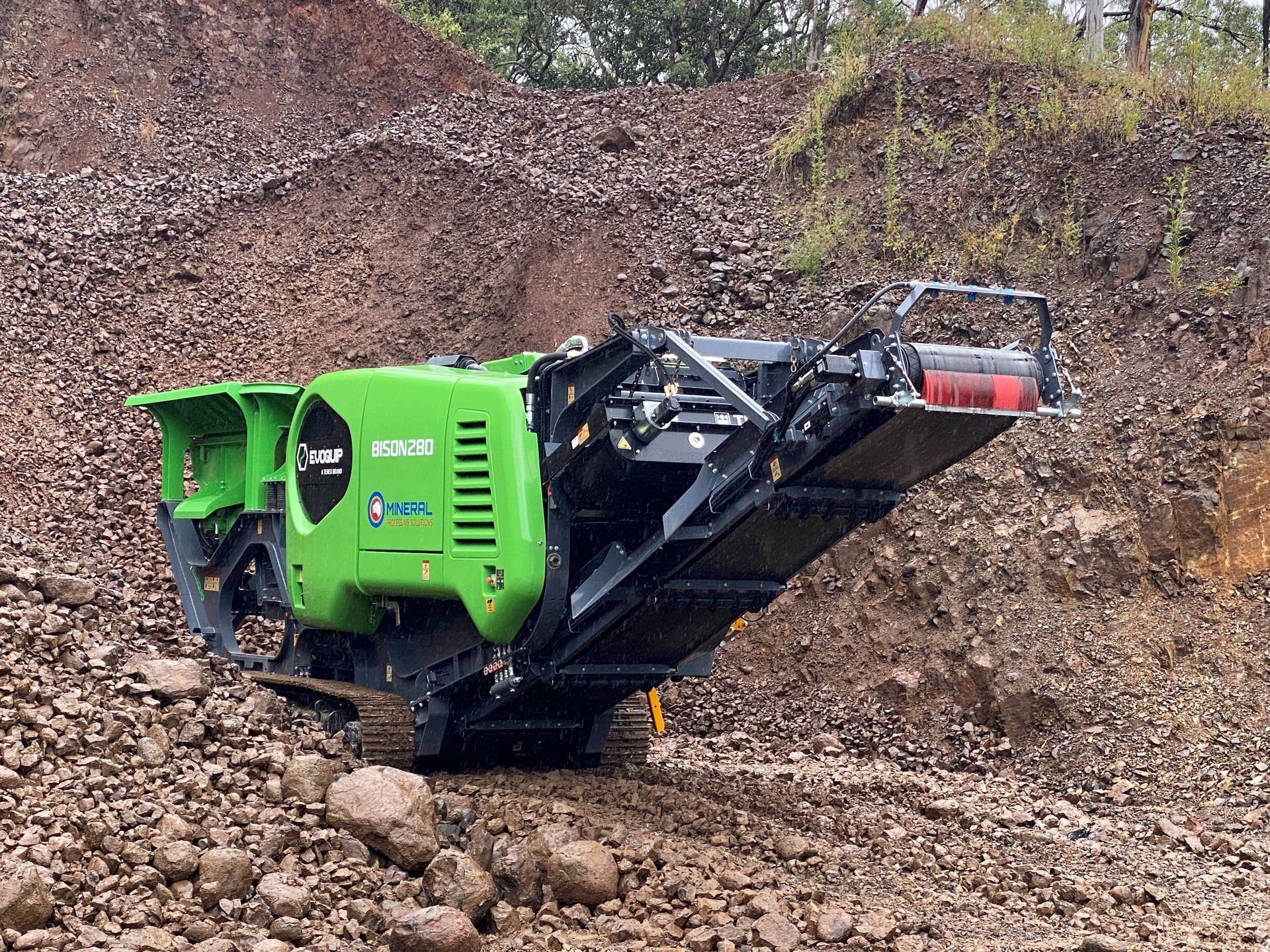

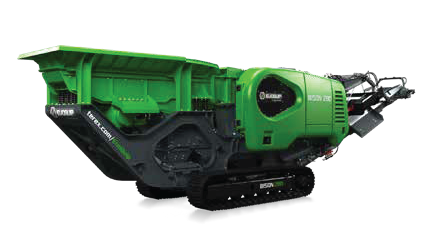

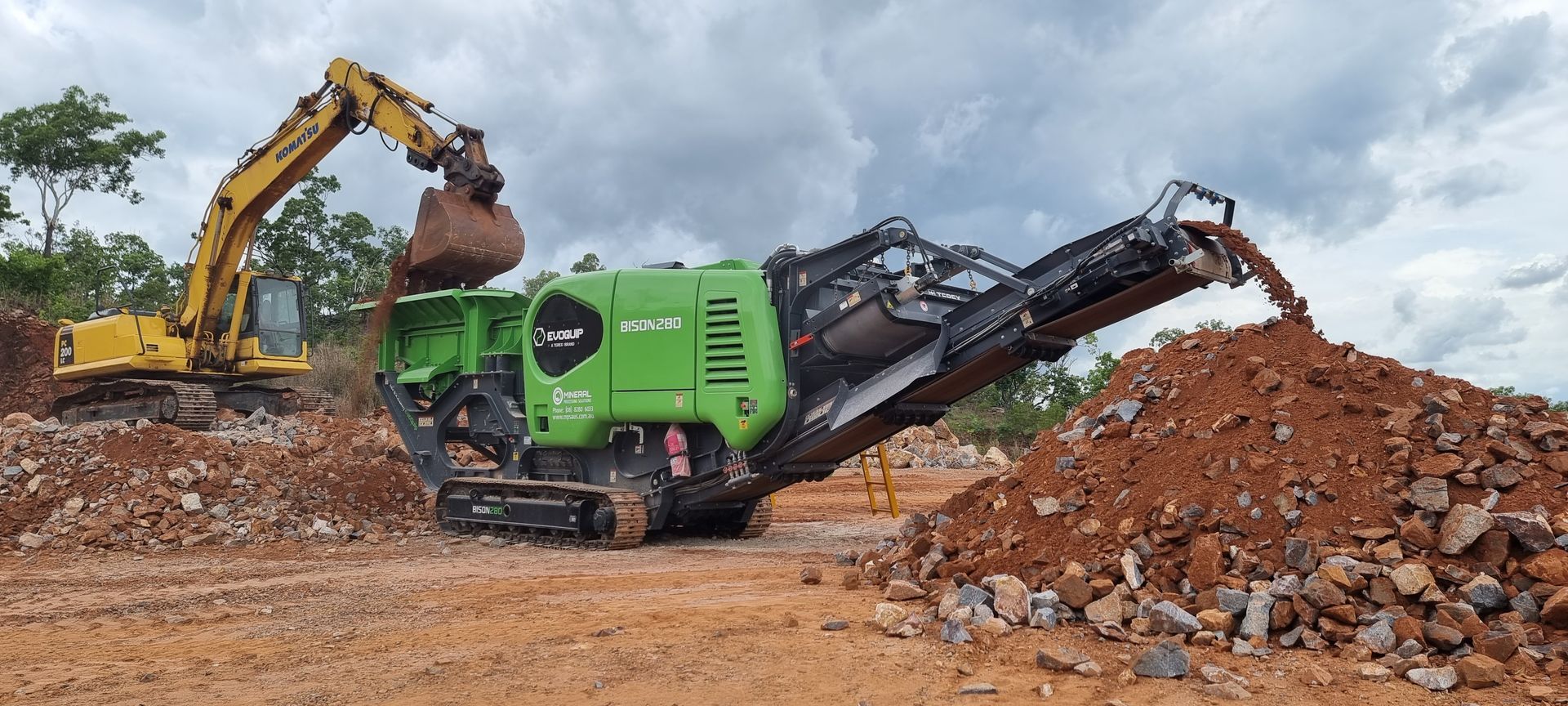

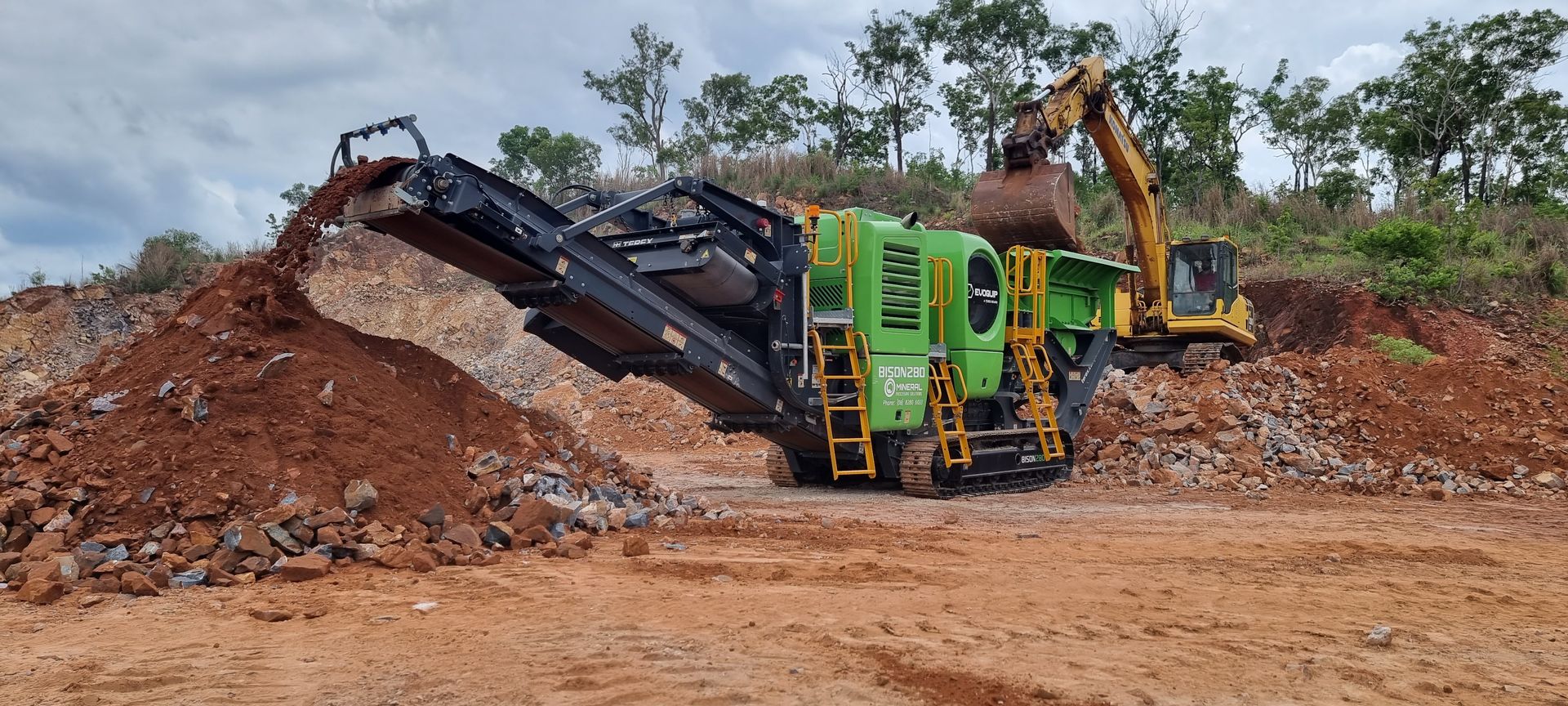

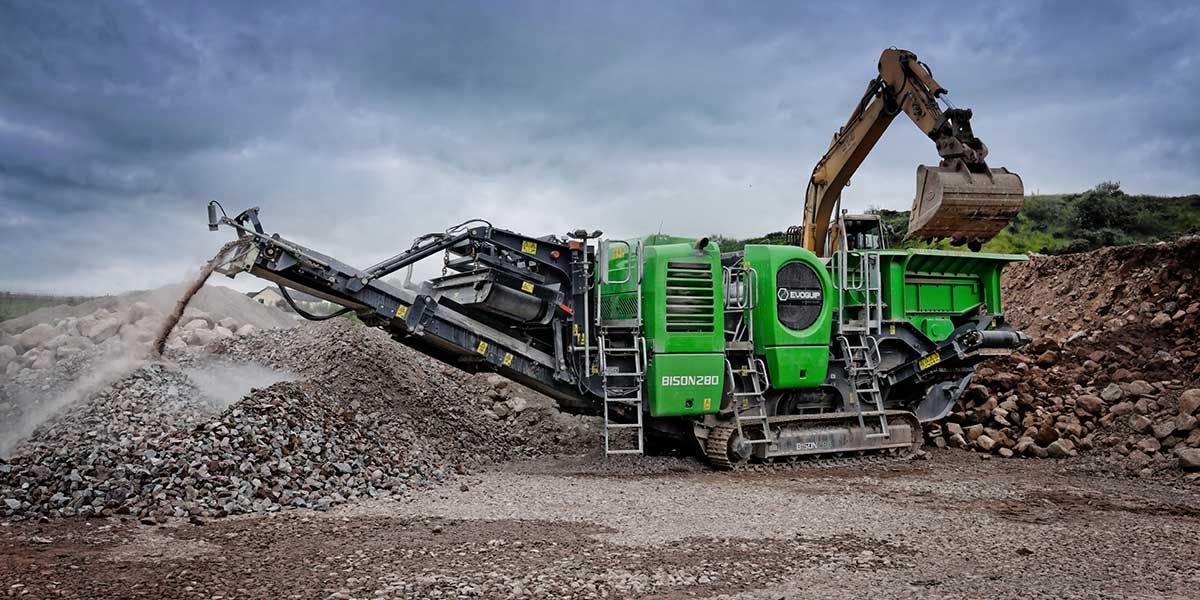

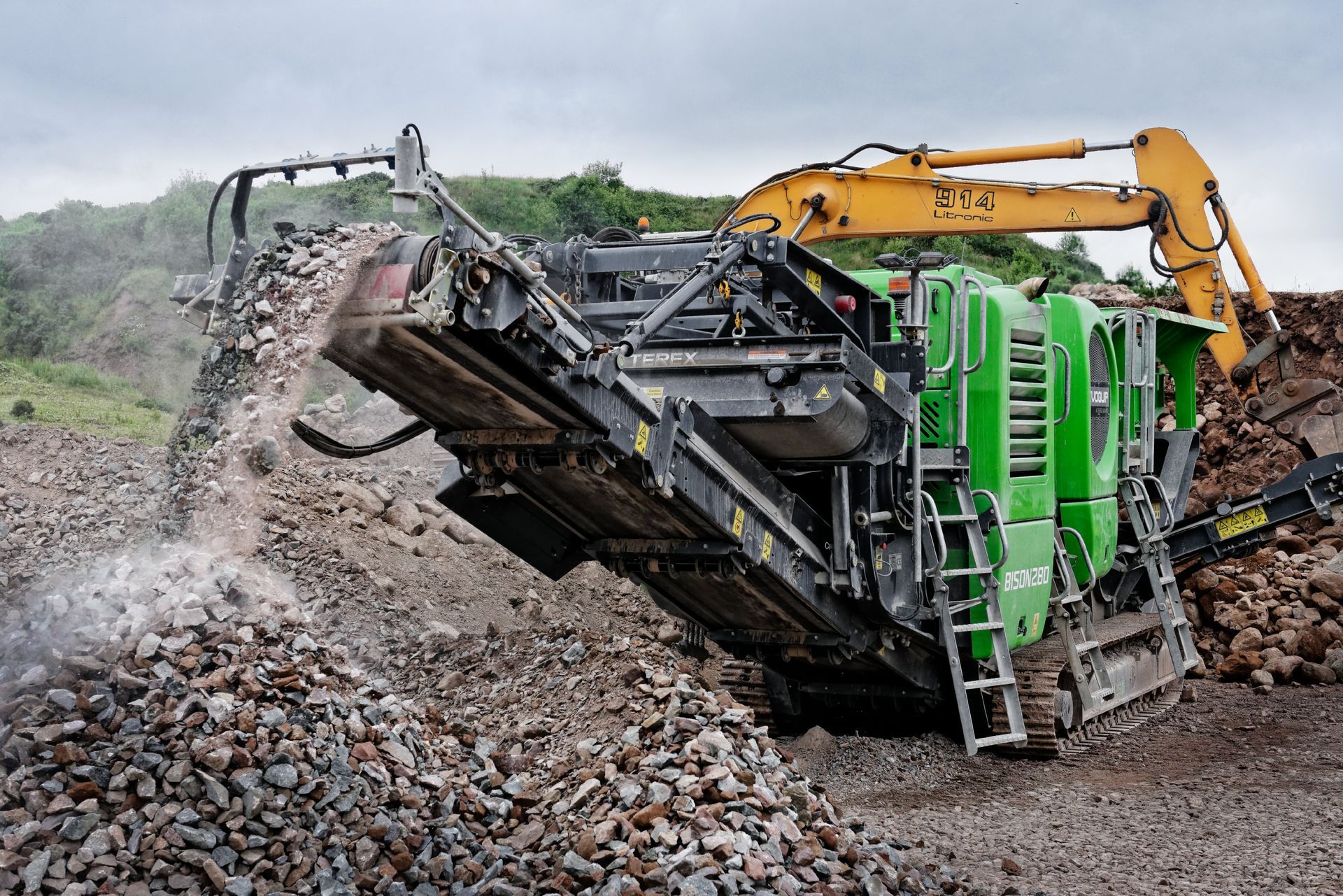

Bison 280 Jaw Crusher

Overview

The Bison 280, a compact and aggressive portable jaw crusher featuring the proven Terex ‘900mm x 600mm’ single toggle jaw crusher. This machine utilizes an extremely fuel efficient and powerful ‘Direct Drive’ system to power the Crusher which provides excellent performance in recycling, contracting and quarrying industries. The Bison 280 jaw crusher is compact in size, has quick set-up times, ease of transport and a user friendly control system which makes the Bison 280 the ideal solution for all small to medium sized operators.

features

  • Jaw Crusher
  • Compact Design for ease of transportation
  • High Output Potential up to 220 US tph / 200 tph
  • Backed with OPS's Aftermarket Services and support

TEchnical specifications

  • 3.6m3 (4.7yd3) Hopper capacity
  • Two stage grizzly feeder as standard
  • 50mm (2”) Nominal spacing grizzly

  • 900mm x 600mm (36”x24”) Jaw inlet
  • Min CSS: 40mm (1.5”) Recycle / 50mm (2”) in natural rock
  • Max CSS: 130mm (5”)
  • Hydraulic jaw adjustment

  • Stage lllA Constant Speed: John Deere 4045 126kW (169hp) (Tier 3
  • regions)
  • Tier 4 Final: Caterpillar C4.4 129kW (173Hp)
  • Stage V: Caterpillar C4.4 129 kW (173hp)
  • Direct drive to crusher via clutch and V belts

  • Up to 200 tph / 220 US tph

  • 800mm (32”) Wide product conveyor
  • Product conveyor discharge height: 2.9m (9’6”)

  • Length: 12.4m (40’ 8”)
  • Width: 2.4m (7’ 10”)
  • Height: 3.2m (10’ 6”)
  • Weight (with Magnet):

ㅤㅤㅤ•Tier 3: 27,700kgs (61,068lbs)

ㅤㅤㅤ•Tier 4F: 27,500kgs (60,627lbs)

*including dirt conveyor and magnet
