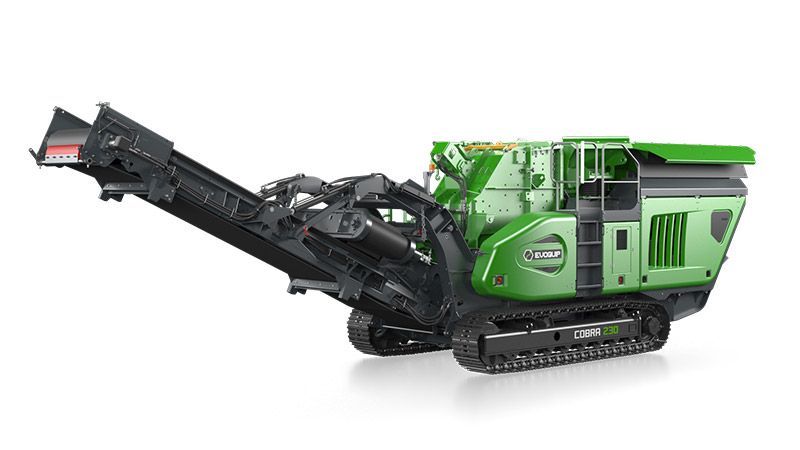

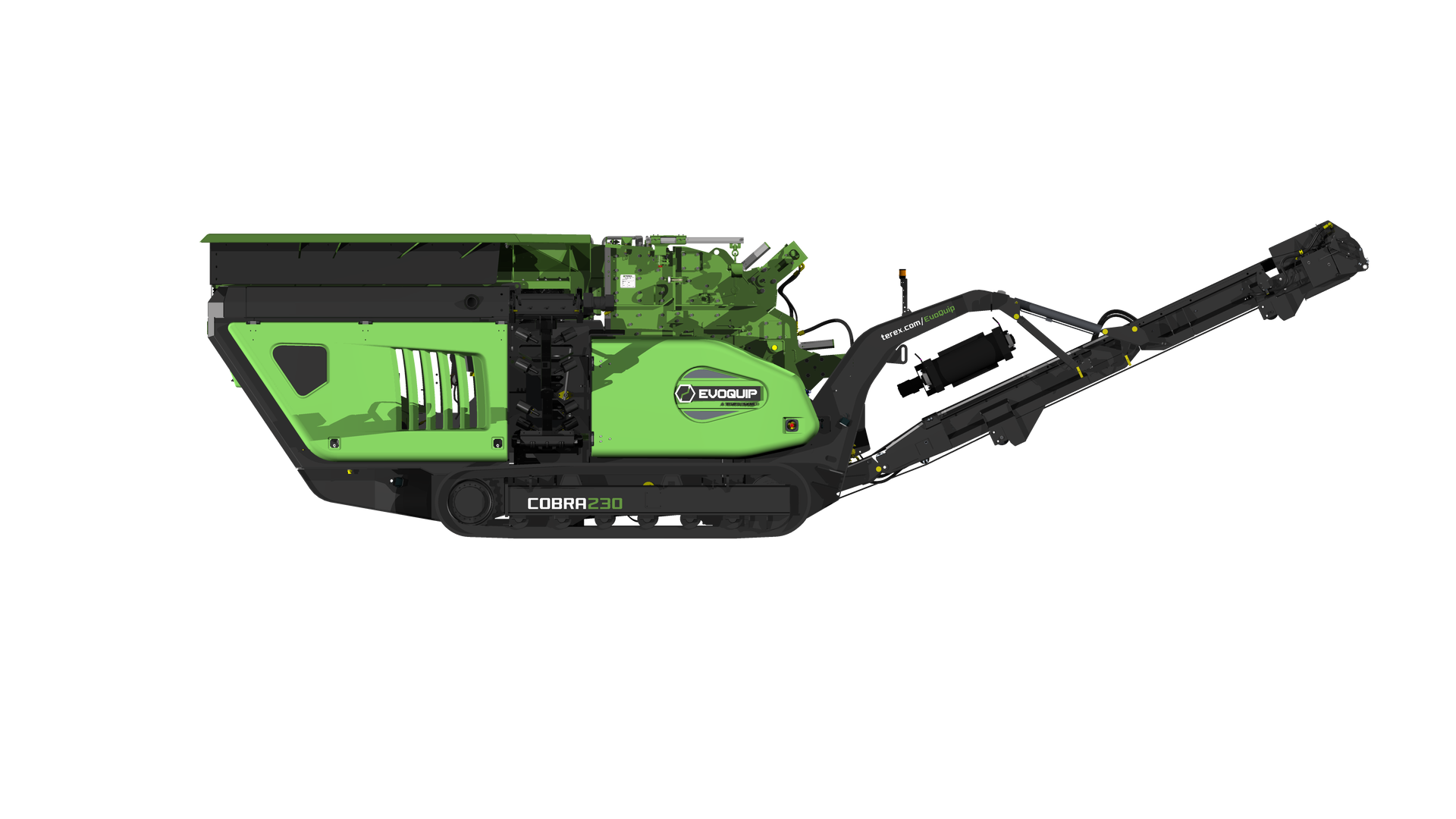

Cobra 230 Impactor

Overview

The Cobra 230 is the new impact crusher from EvoQuip. No matter what line of work you’re in, whether it is Construction & Demolition, Asphalt Recycling, Quarrying or Contract Crushing the Cobra 230 will enhance your profitability. The Cobra 230 Impact Crusher is a machine that provides class leading productivity, unmatched versatility and excellent fuel efficiency. The quick set up times, simple intuitive operation and ease of transport makes this machine an ideal solution for all applications

features

  • Impact Crusher
  • Compact Design for ease of transportation
  • High Output Potential up to 250tph / 275 US tph
  • Backed with OPS's Aftermarket Services and support

applications

  • Construction
  • Demolition
  • Asphalt Recycling
  • Quarrying
  • Contract Crushing

TEchnical specifications

  • 2.6m3 (3.4yd3) Hopper capacity
  • Integrated pre-screen for fines removal
  • Feeder speed auto-regulates depending on crusher load

  • 860mm (34”) x 720mm (28.5”) Crusher Inlet
  • 830mm (33”) Wide x 860mm (34”) diameter rotor
  • 2 High / 2 Low configuration as standard
  • Max OSS – 120mm (4.75”) upper; 55mm (2.25”) lower
  • Min CSS – 40mm (1.5”) upper; 20mm (0.75”) lower
  • Hydraulic adjust and hydraulic overload protection as standard

  • Tier 3 John Deere 6068 194kW (260Hp)
  • Tier 4 Final: Volvo D8 210kW (281Hp)
  • Stage V: Volvo D8 210kW (281Hp)
  • Direct drive to crusher via clutch and V Belts

  • Up to 250tph / 275 US tph

  • 900mm (36”) Wide product conveyor
  • Product conveyor discharge height: 3000mm (9’ 10”)

  • Intuitive ‘Push Button’ Control System

  • Length: 9.32m (30’ 7”)
  • Width: 2.43m (8’)
  • Height: 2.99m (9’ 10”)
  • Weight (with Magnet):

ㅤㅤㅤ•Tier 4F: 24,000kgs (52,911lbs)
