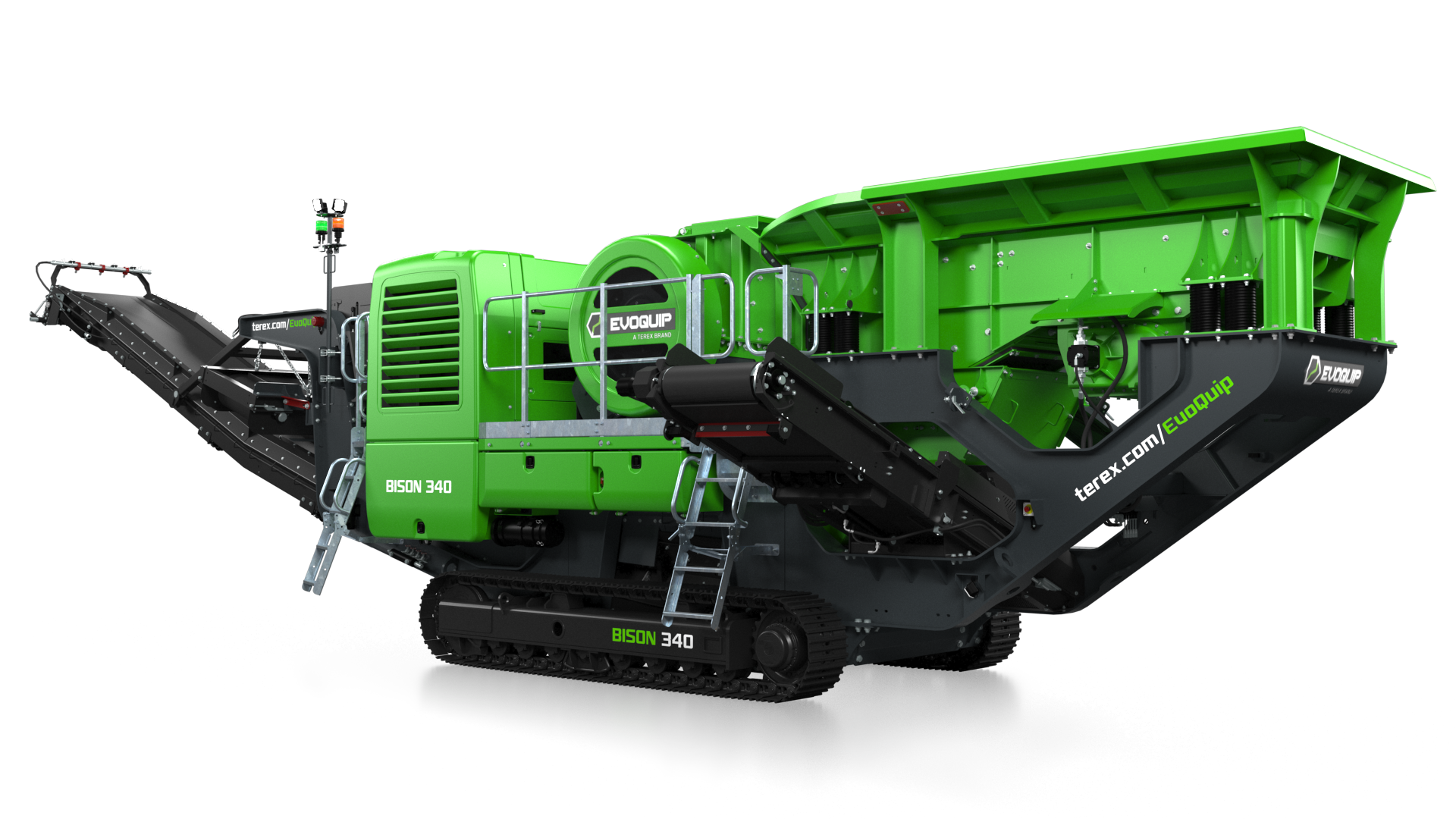

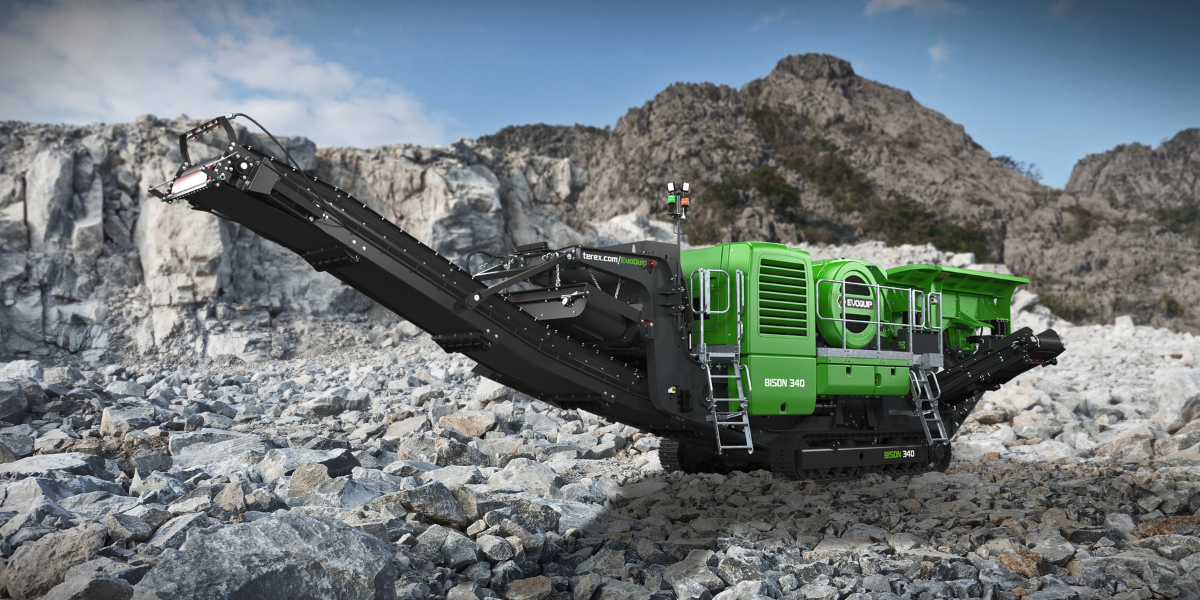

Bison 340 Jaw Crusher

Overview

The Bison 340 is designed for operators in quarrying, demolition, recycling, and mining applications. This versatile jaw crusher boasts a two-piece grizzly feeder allowing better material flow towards the chamber. User benefits include track mobility for a quick set-up time, and variable crusher speed that allows the operator to fine tune the machine and maximize output. A hydrostatic drive system offers versatility and allows the crusher to be operated in reverse, of particular benefit in recycling applications.

features

  • Jaw Crusher
  • Compact Design for ease of transportation
  • High Output Potential up to 280tph (308 US tph)
  • Backed with OPS's Aftermarket Services and support

TEchnical specifications

  • 5m3 (6.5yd3) Hopper capacity
  • Vibrating Pan and grizzly feeder

  • Chamber Size: 1000mm x 600mm (39” x 23.6”)
  • Min CSS: 40mm (1.5”)*
  • Max CSS: 125mm (5”)*

  • Tier 3/Stage 3A:
  • John Deere 6068 212 kW (284hp)
  • Tier 4F/Stage V:
  • CAT C7.1 205kW (275hp)

  • Up to 280 tph / 308 US tph

  • 900mm (35”) Wide product conveyor
  • Product conveyor discharge height: 3.5m (11’ 5”)

  • Length: 15.7m (51’ 6”)
  • Width: 2.6m (8’ 9”)
  • Height: 3.4m (11’ 2”)
  • Weight: 34,860kg (76,853lbs)

*including single pole magnet, hopper extensions &

bypass conveyor
