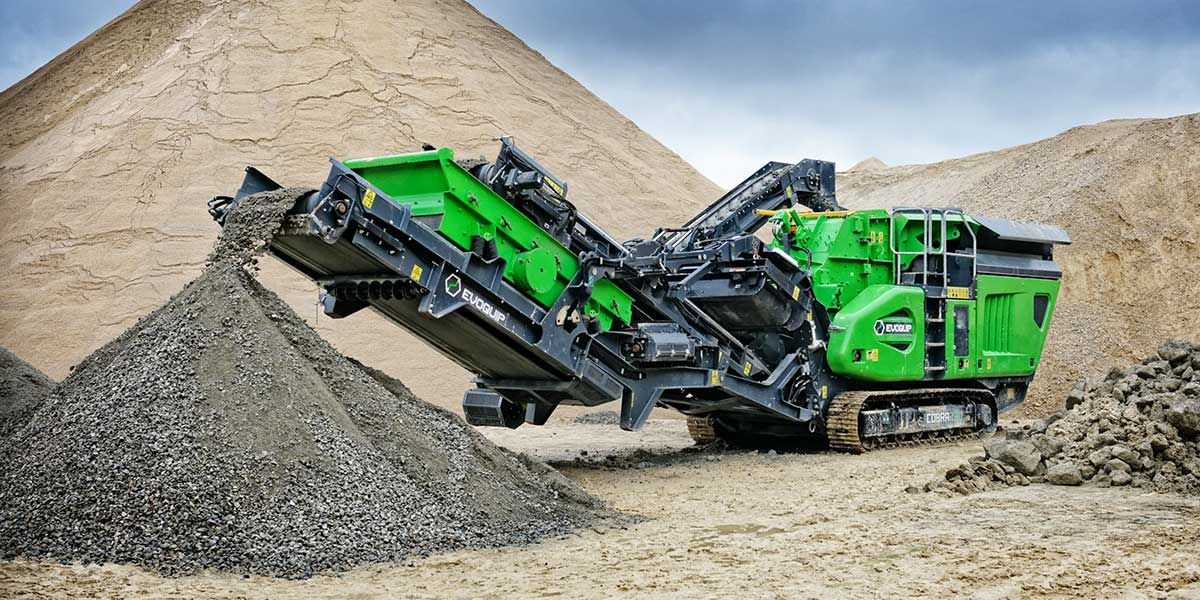

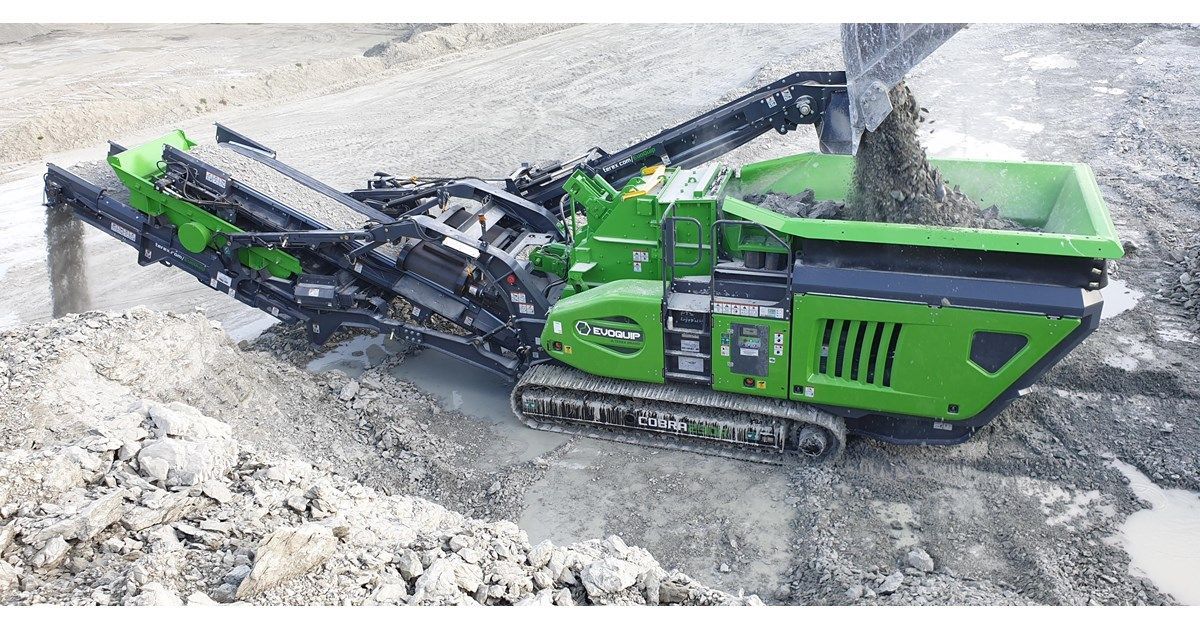

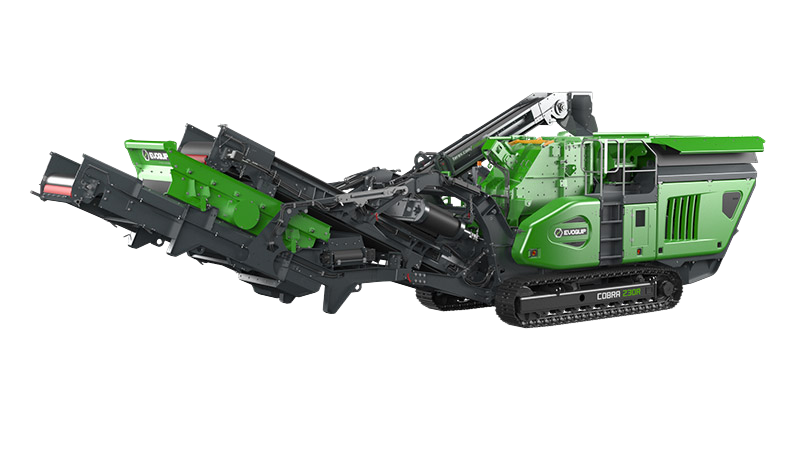

Cobra 230R Impactor

Overview

The Cobra 230R is a versatile and easy to use Small Impact Crusher that can operate in the most demanding of applications such as Reinforced Concrete, Recycled Asphalt, Construction and Demolition waste and Natural Rock. The integrated Afterscreen system on the Cobra 230R ensures the required product specification is achieved with oversize material either being recirculated back to the Crusher or else stockpiled.

features

  • Impact Crusher
  • Compact Design for ease of transportation
  • High Output Potential up to 250tph / 275 US tph
  • Backed with OPS's Aftermarket Services and support

applications

  • Reinforced Concrete
  • Recycled Asphalt
  • Construction Waste
  • Demolition Waste
  • Natural Rock

TEchnical specifications

  • 2.6m3 (3.4yd3) Hopper capacity
  • Integrated pre-screen for fines removal
  • Feeder speed auto-regulates depending on crusher load

  • 860mm (34”) x 720mm (28.5”) Crusher Inlet
  • 830mm (33”) Wide x 860mm (34”) diameter rotor
  • 2 High / 2 Low configuration as standard
  • Max OSS – 120mm (4.75”) upper; 55mm (2.25”) lower
  • Min CSS – 40mm (1.5”) upper; 20mm (0.75”) lower
  • Hydraulic adjust and hydraulic overload protection as standard

  • 2.44m x 1.2m (8’ x 4’) single deck mesh
  • Side tensioned
  • Screen can be lowered to horizontal to ease mesh change and maintenance

  • Tier 3 John Deere 6068 194kW (260Hp)
  • Tier 4 Final: Volvo D8 210kW (281Hp)
  • Stage V: Volvo D8 210kW (281Hp)
  • Direct drive to crusher via clutch and V Belts

  • Belt width: 1.3m (52”)
  • Piped for overband magnet
  • Hydraulic raise/ lower for magnet

  • 900mm (36”) Wide product conveyor
  • 500mm (20’’) Transfer conveyor
  • 500mm (20’’) Oversize conveyor with Recirc & Stockpile
  • 1000mm (48’’) Fines conveyor with 2.5m (8’2’’) discharge

  • Afterscreen system is quick to detach
  • Intuitive ‘Push Button’ Control System

  • Length: 13.3m (43’ 7’’)
  • Width: 2.5m (8’ 3’’)
  • Height: 3m (9’ 10’’)
  • Weight (with Magnet):

ㅤㅤㅤ•Tier 3: 29,100kgs (64,155lbs)

ㅤㅤㅤ•Tier 4F: 29,300kgs (64,595lbs)
