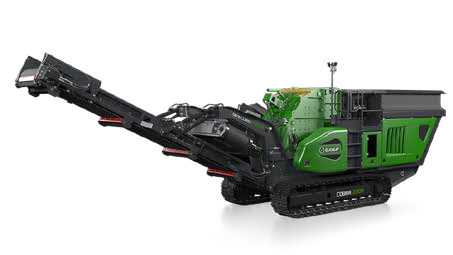

Cobra 290 Impactor

Overview

The Cobra 290 Tracked Impact Crusher is a machine that provides class leading productivity, unmatched versatility and excellent fuel efficiency. This Impact Crusher has quick set up times, simple intuitive operation and ease of transport which makes this machine an ideal solution for all applications.


features

  • Impact Crusher
  • Compact Design for ease of transportation
  • High Output Potential up to 290tph / 320 US tph
  • Backed with OPS's Aftermarket Services and support

TEchnical specifications

  • 3.3m3 (4.3yd3) Hopper capacity
  • Integrated pre-screen for fines removal
  • Feeder speed auto-regulates depending on crusher load

  • 1030mm (41”) x 790mm (31”) Crusher Inlet
  • 1000mm (40”) Wide x 1034mm (41.5”) diameter rotor
  • 2 High / 2 Low configuration as standard
  • Max OSS – 150mm (6”) upper; 75mm (3”) lower
  • Min CSS – 50mm (2”) upper; 20mm (0.75”) lower
  • Hydraulic adjust and hydraulic overload protection as standard
  • Hinged crusher inlet lid as standard

  • Tier 3 Equivalent: Volvo D8 235 kW (315hp)
  • Tier 4 Final: Volvo D8 235kW (315Hp)
  • Stage V: Volvo D8 235kW (315Hp)
  • Direct drive to crusher via Clutch and V Belts

  • Up to 290tph / 320 US tph

  • 1000mm (40”) Wide product conveyor
  • Product conveyor discharge height: 3.42m (11’ 3”)

  • Intuitive ‘Push Button’ Control System

  • Length: 9.92m (32’ 6”)
  • Width: 2.55m (8’ 4”)
  • Height: 3.16m (10’ 4”)
  • Weight (with Magnet):

ㅤㅤㅤ•Tier 3: 28,700kgs (63,273lbs)

ㅤㅤㅤ•Tier 4F: 28,700kgs (63,273lbs)
