Colt 1000

Download Brochure Technical Specifcations Case Studies Talk to an Expert

Overview

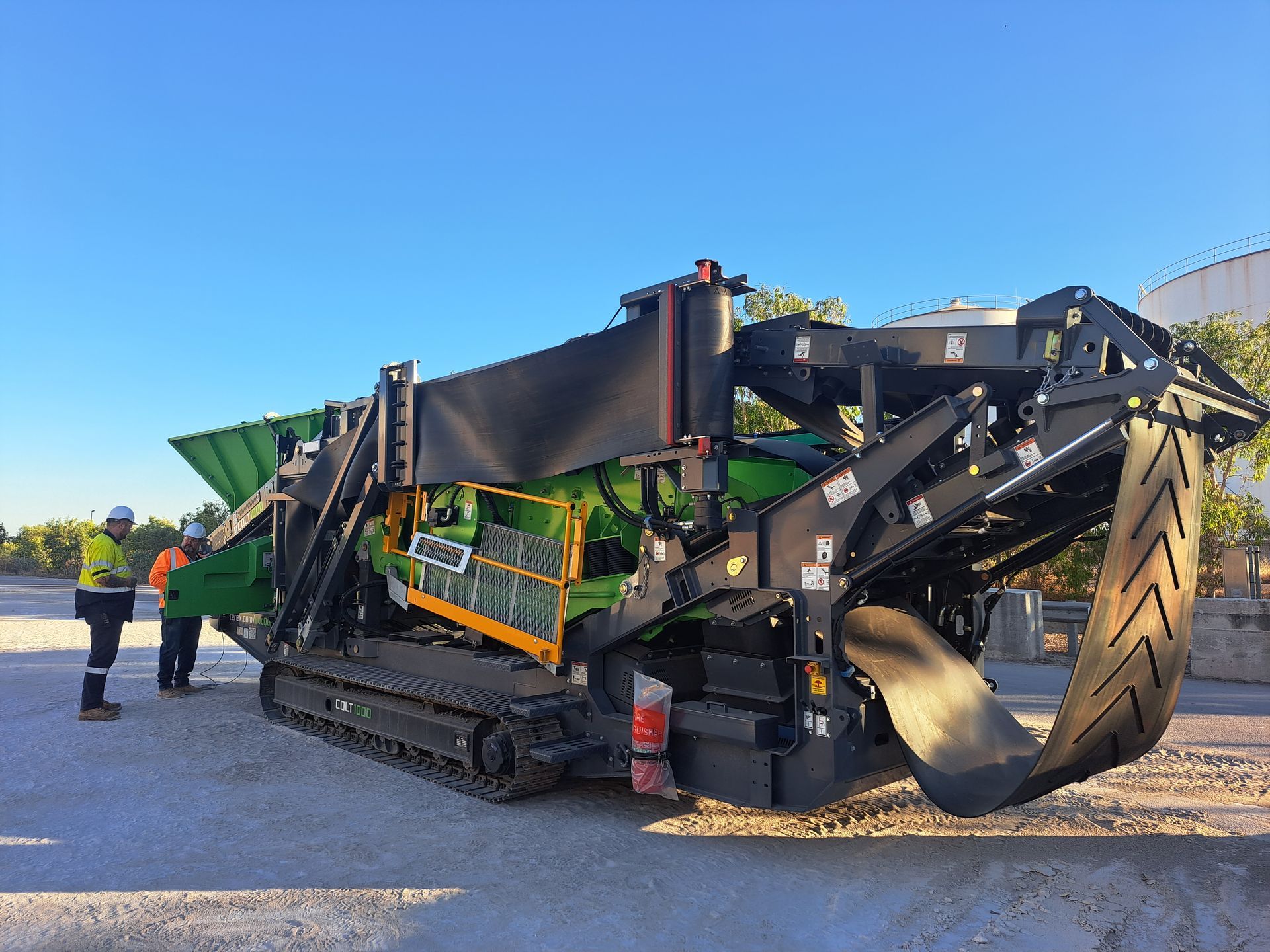

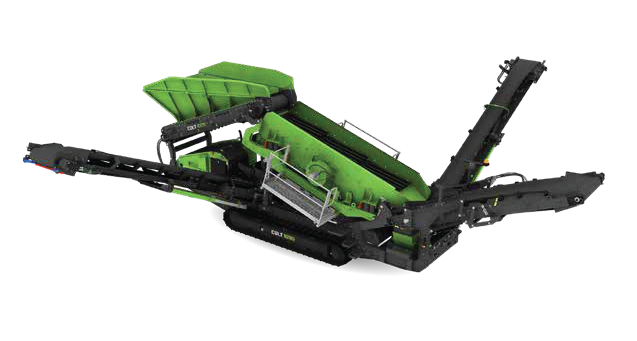

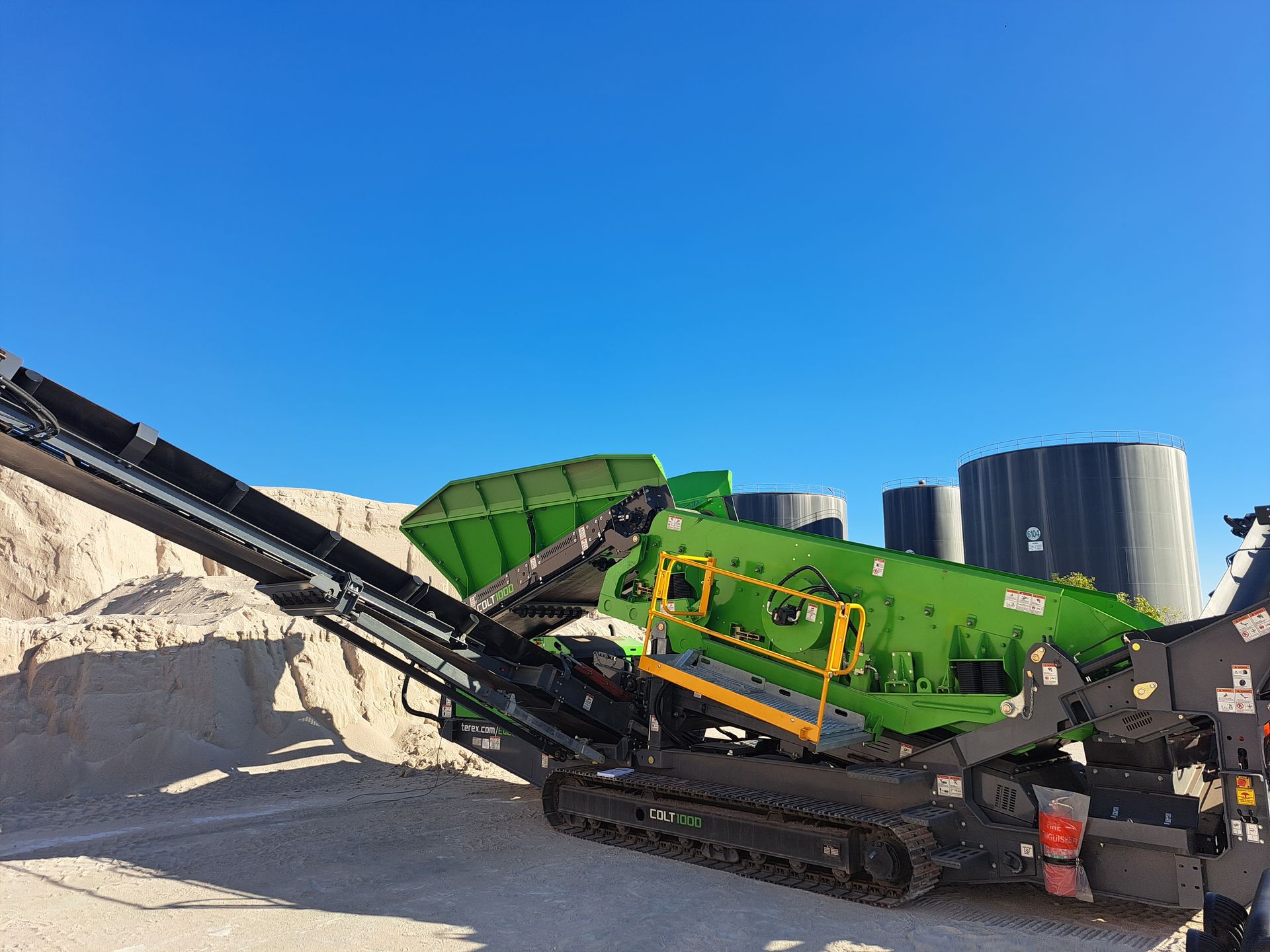

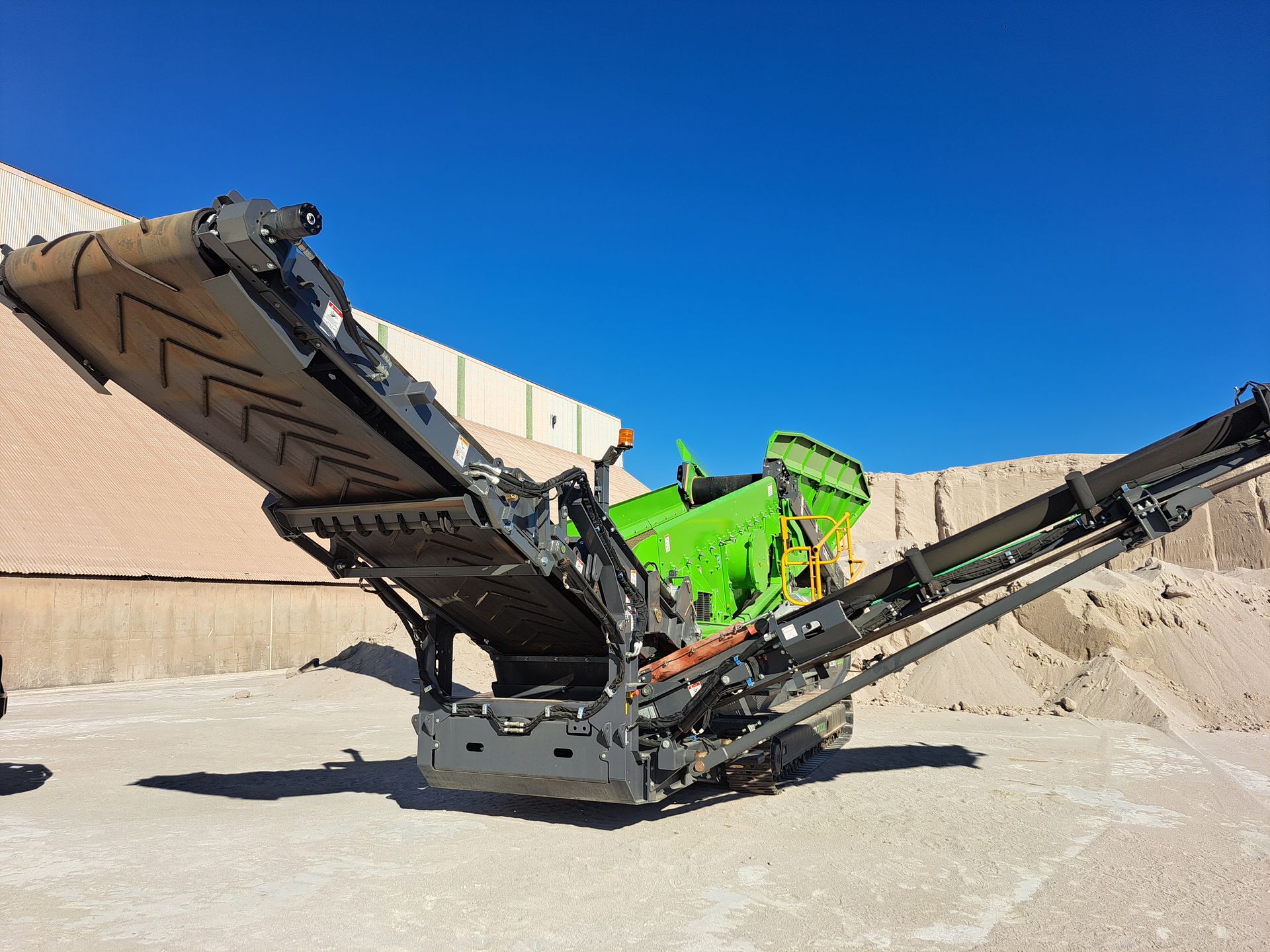

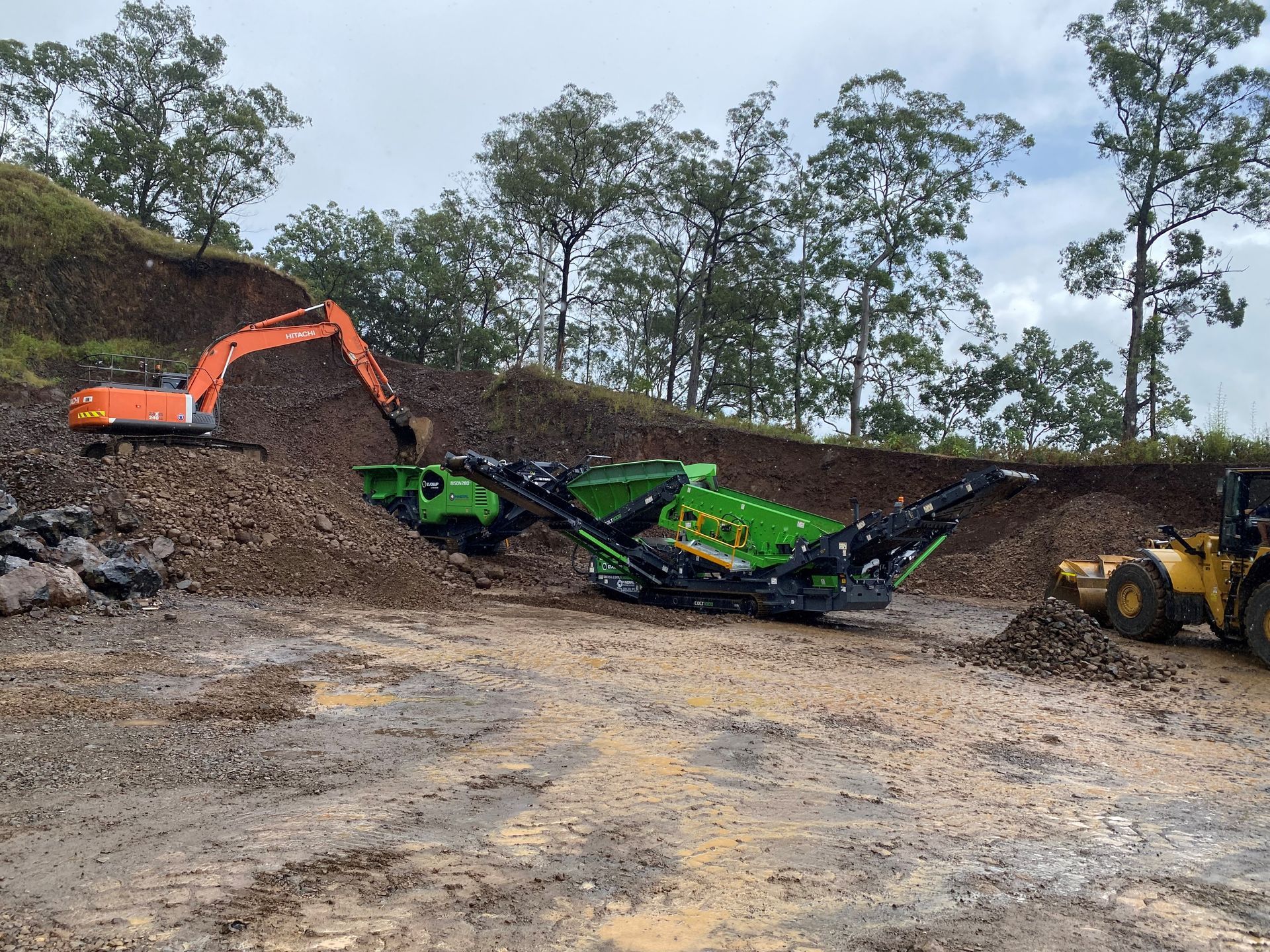

The highly adaptable Colt 1000 Scalping screen is able to operate in both heavy duty scalping and precision screening applications and will manage the most difficult of materials. The Colt 1000 achieves a compact footprint maintaining the ethos of the EvoQuip range while achieving versatility and mobility. Flexibility is enhanced with configurable conveyor options and two way split conversion. Featuring an aggressive double deck screen, variable screening angle with numerous screen media options, broad fines conveyor, quick set up time and tall discharge heights ensures the Colt 1000 distinguishes itself amongst its competition.

features

Screen
Compact Design for ease of transportation
High Output Potential up to 396 US tph / 360tph
Backed with OPS's Aftermarket Services and support

applications

This is paragraph text.

TEchnical specifications

5m3 (6.5yd3 ) Hopper capacity
1100mm (44”) wide
Variable speed

4.1m (13’6”) x 1.22m (4’) Double deck screen
Variable screen angle
Wide range of screen media
Top Deck - Bofor Deck, Fingers, Punch Plate, 3D Punch Plate & Mesh
Bottom Deck – Mesh & Fingers

Tier 4 Final/ Stage lllB: CAT C3.4 engine (55kW / 74hp @ 2300rpm)
Tier 3: Cat C4.4 62Kw
Stage V: Cat C2.2 55Kw

1000mm (40”) Wide collection conveyor with scraper
800mm (31”) Wide fines conveyor with 3.9m (12’8”) discharge
650mm (26”) Wide midgrade conveyor with 3.7m (12’2”) discharge
1050mm (41”) Wide oversize conveyor with 3.2m (10’4”) discharge Configurable layout and ability to convert to 2 way split
Variable speed on fines, midgrade and oversize as standard

Length: 11.0m (35’ 11”)
Width: 2.50m (8’ 2”)
Height: 3.10m (10’ 4”)
Weight (standard machine): Tier 4F: 20,750kgs (45,745lbs)
