Colt 800

Overview

The Finlay I-140RS shapes the future through innovation. This new generation impact crusher features a redefined design and advanced technological engineering, delivering improved material flow and production capabilities across quarrying, mining, demolition, and recycling applications.

features

  • Versatile Screen
  • Compact Design for ease of transportation
  • High Output Potential up to 280 tph / 308 US tph
  • Backed with OPS's Aftermarket Services and support

TEchnical specifications

  • 2.9m3 (3.8yd3 ) Standard hopper capacity
  • 4.7m3 (6.1yd3 ) Extended hopper capacity (Option)
  • 1050mm (42”) wide
  • Variable speed

  • 2.77m x 1.22m (9’ x 4’) Double deck screen
  • Wide range of screen media
  • Top Deck - Bofor Deck, Fingers, Punch Plate &
  • Mesh Bottom Deck – Mesh & Fingers

  • Tier 3: Deutz TD2011 L04I - 49.4kW (66Hp) @ 2300rpm
  • Tier 4F / Stage lV: Cat C3.4 - 55kW (74Hp) @ 2300rpm
  • Stage 5: Cat C2.2 – 55Kw (74Hp) @ 2300rpm
  • Simple to operate

  • 1050mm (42”) Wide collection conveyor with scraper

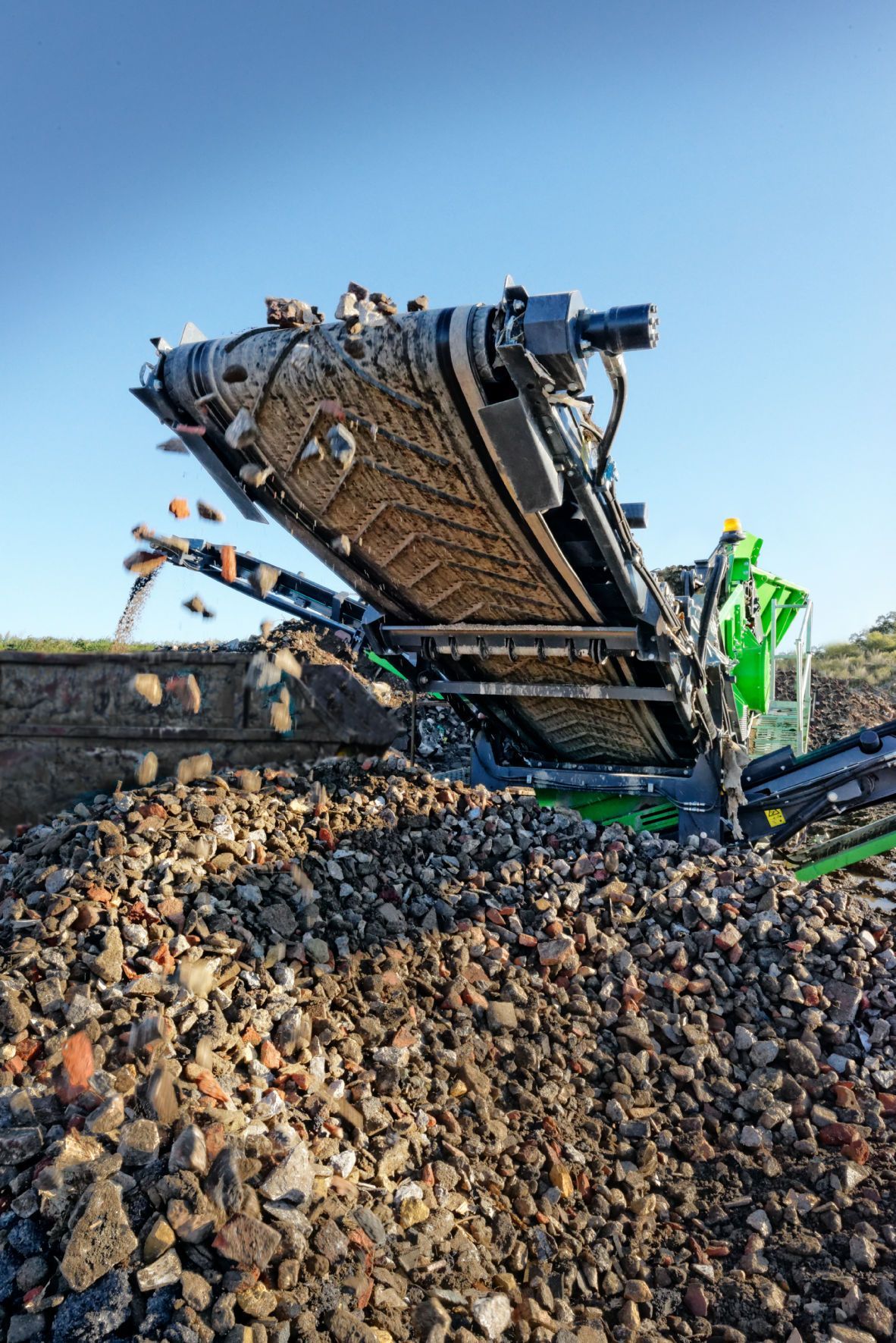

  • 650mm (26”) Wide fines conveyor with 3.82m (12’7”) discharge
  • 650mm (26”) Wide midgrade conveyor with 3.64m (11’11”) discharge
  • 1050mm (42”) Wide oversize conveyor with 3.03m (9’11”) discharge
  • Hydraulic combined slide out and fold mechanism
  • Variable speed on fines, midgrade and oversize as standard

  • Length: 9.22m (30’ 3”)
  • Width: 2.5m (8’ 2”)
  • Height: 3.09m (10’ 1”)
  • Weight: 16,700kgs (3,6817lbs)
