Falcon 1230 Inclined Screen

Overview

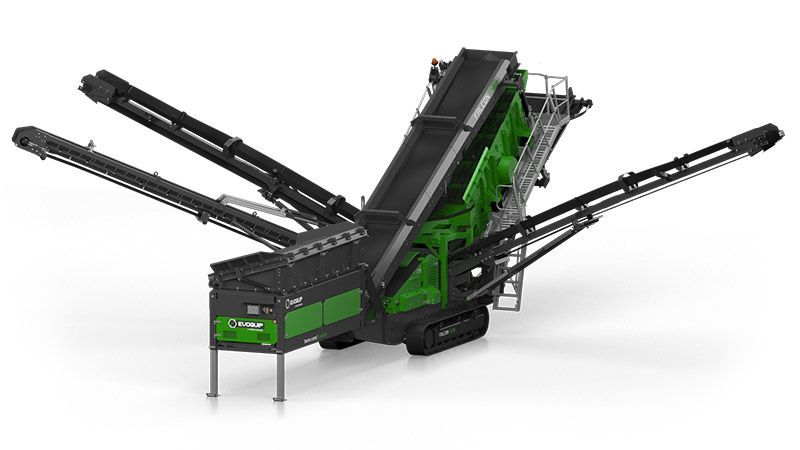

The Falcon 1230 Portable Inclined Screen, a solution for scalping, screening and stockpiling in a self-contained unit. A compact easily transportable machine that offers operators rapid set up and tear down times

features

  • Versatile Screen

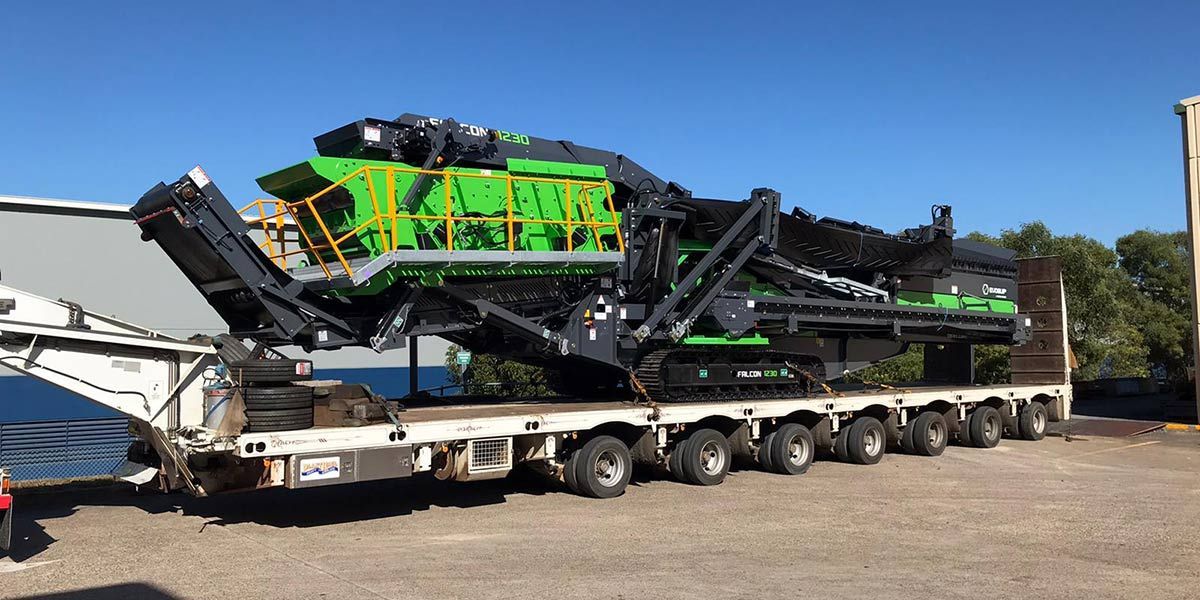

  • Compact Design for ease of transportation
  • High Output Potential up to 600 tph / 672 US tph
  • Backed with OPS's Aftermarket Services and support

TEchnical specifications

  • 8m 3 (10.5yd 3 ) hopper capacity 4.2m
  • (14ft) long hopper and belt feeder
  • 1050mm (42”) wide feeder belt

  • Versatile and configurable 3 deck screen
  • 3.66m x 1.52m (12’ x 5’) top & middle deck screen
  • 3.00m x 1.52m (10’ x 5’) bottom deck screen
  • Total screening area: 15.7m² (170ft²)
  • 3 deck screen speed: 1120rpm max

  • Tier 3: CAT C4.4 Engine Power: 77kW (103Hp) Engine Speed: 1800rpm

  • 1m (40”) wide main conveyor
  • 1.2m (48”) wide fines conveyor with 4.4m (14’ 4”)discharge
  • 650mm (26”) wide mid -overs with 4.76m (15’ 7”) discharge
  • 650mm (26”) wide mid-fines with 4.76m (15’ 7”) discharge
  • 500mm (20”) wide over size conveyor with max discharge height
  • 4.48m (14’ 8”)

  • 500mm (20”) wide over size conveyor with max discharge height
  • 4.48m (14’ 8”)

  • Length: 16.8m (55’)
  • Width: 2.60m (8’ 5”)
  • Height: 3.40m (11’ 3”)
  • Weight: 28,500kgs (62,832lbs)
