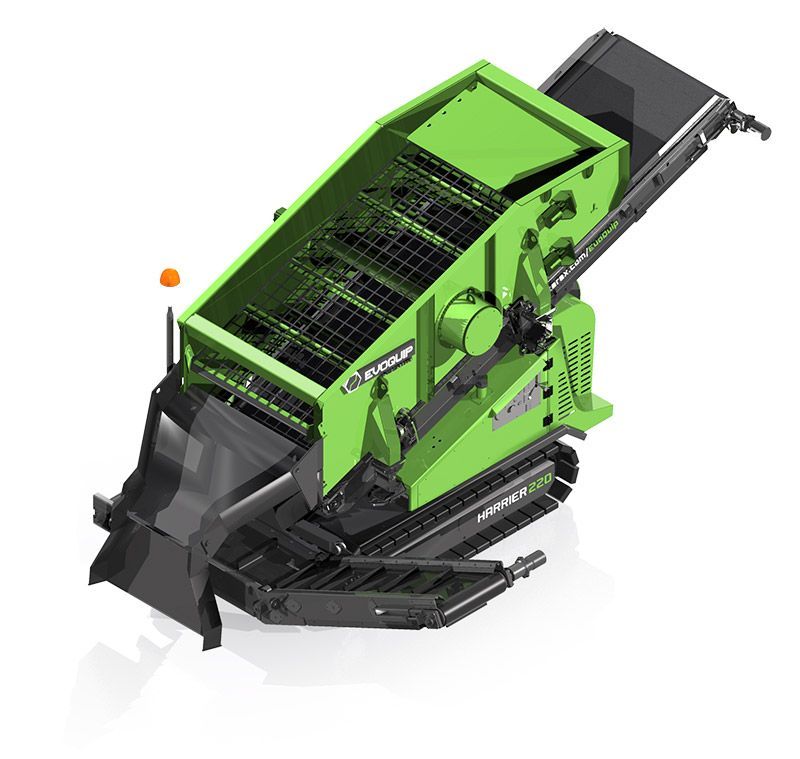

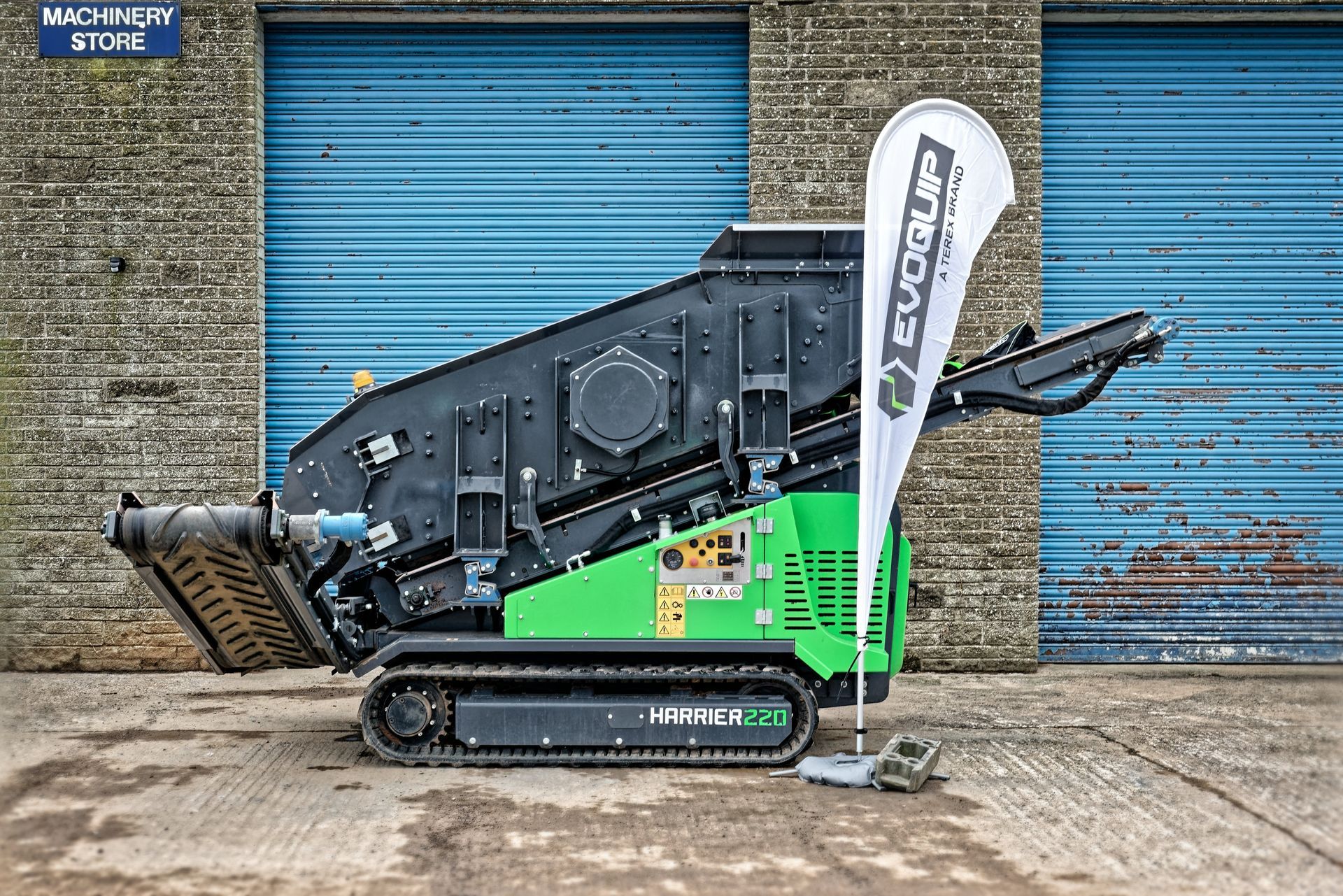

Harrier 220 Screener

Overview

The Harrier 220 Compact Scalping Screen is a small yet robust machine designed for recycling, composting, topsoil, landscaping, and contract building industries. Its compact size, quick set-up times, ease of transport and ease of operation makes the Harrier 220 the ideal solution for smaller scale operations.

features

  • Screen
  • Compact Design for ease of transportation
  • High Output Potential up to 80tph / 90 US tph
  • Backed with OPS's Aftermarket Services and support

TEchnical specifications

  • 2.1m (6’9”) x 1.1m (3’6”) Double deck screen
  • 600mm x 1.1m (2’ x 3’6”) Feed in area
  • End tensioned as standard

  • 4.1m (13’6”) x 1.22m (4’) Double deck screen
  • Variable screen angle
  • Wide range of screen media
  • Top Deck - Bofor Deck, Fingers, Punch Plate, 3D Punch Plate & Mesh
  • Bottom Deck – Mesh & Fingers

  • Isuzu engine (21kW / 28.5hp) Simple to operate Stage V: Kubota V 1505

  • 1000mm (40”) Wide collection conveyor with 1.93m
  • (6’ 4”) discharge
  • 500mm (20”) Wide midgrade conveyor with 1.18m (3’10”) discharge

  • Length: 4.36m (14’ 4”)
  • Width: 1.8m (5’ 11”)
  • Height: 2.23m (7’ 4”)
  • Weight: 3,300kgs (7,275lbs)
