TC424X Tracked Conveyor

Download Brochure Technical Specifcations Case Studies Talk to an Expert

Overview

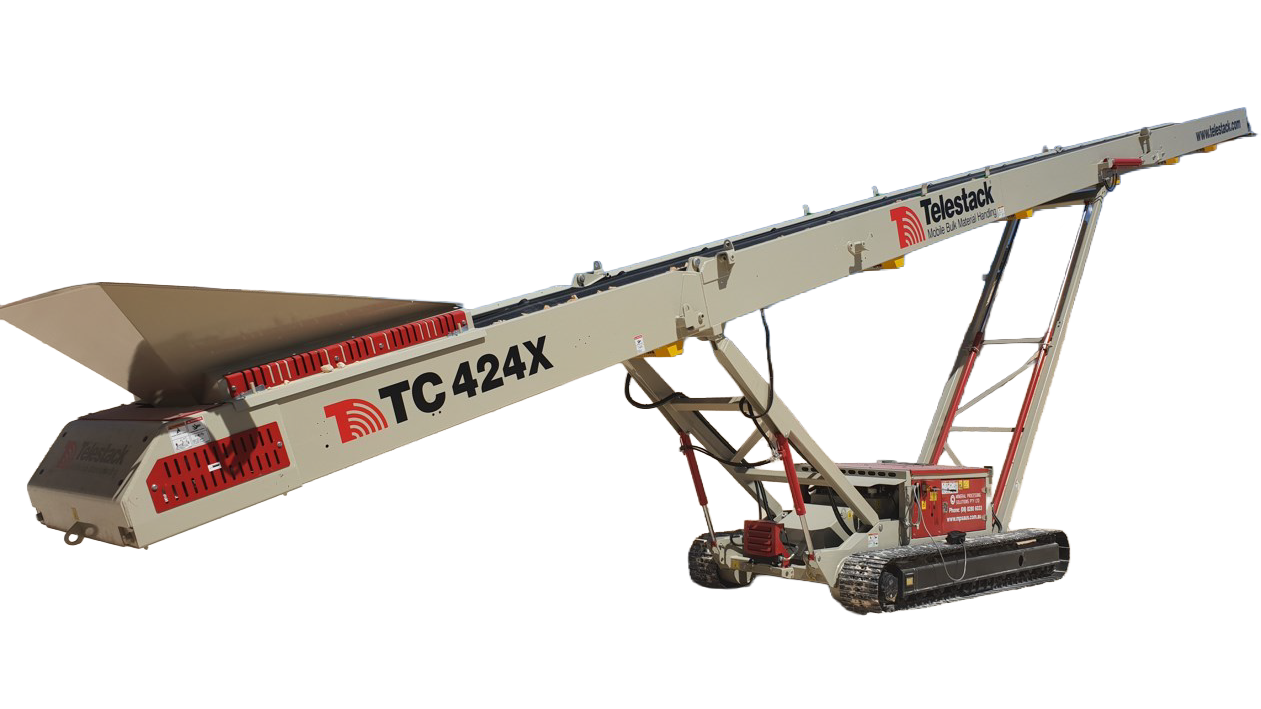

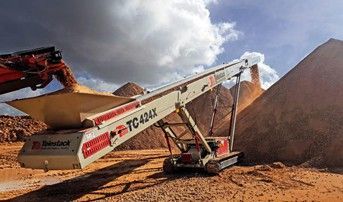

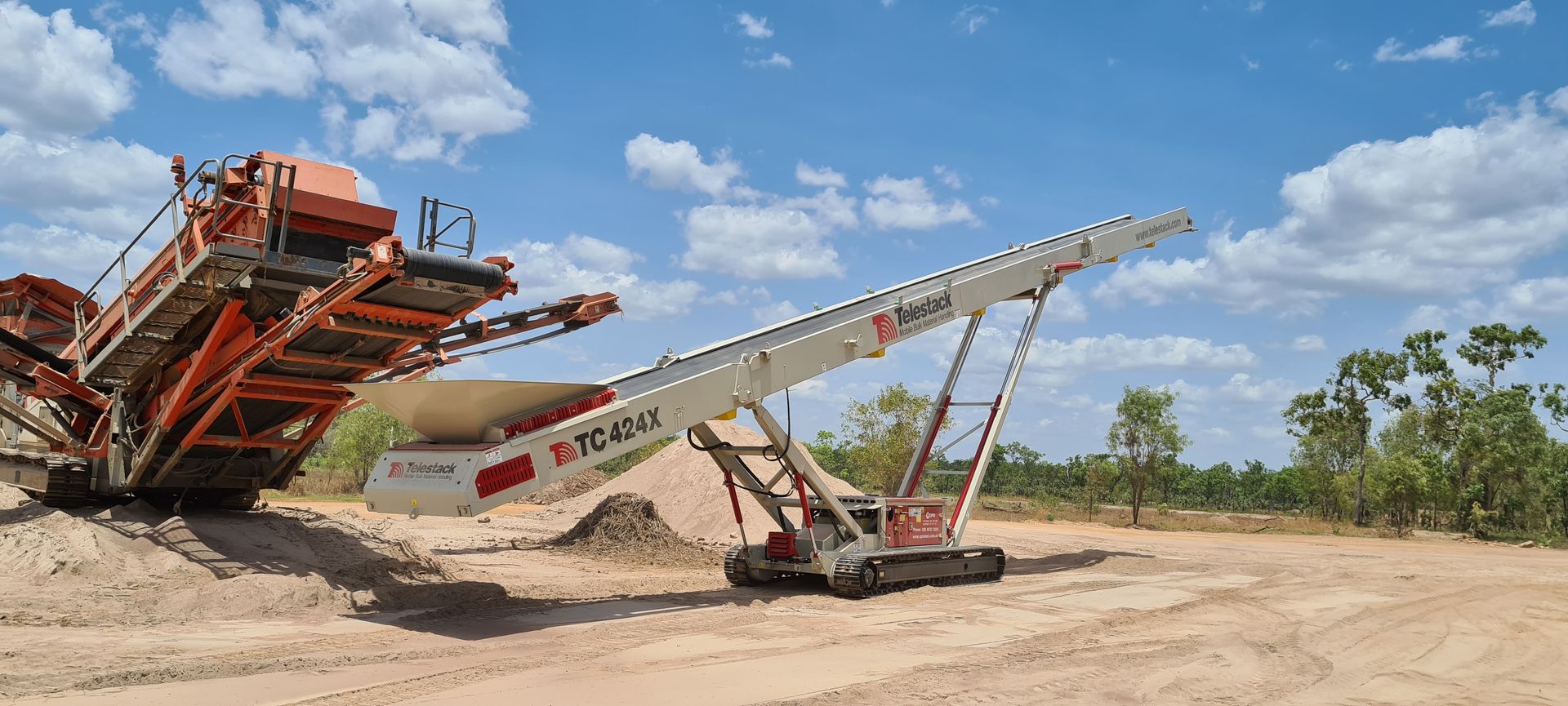

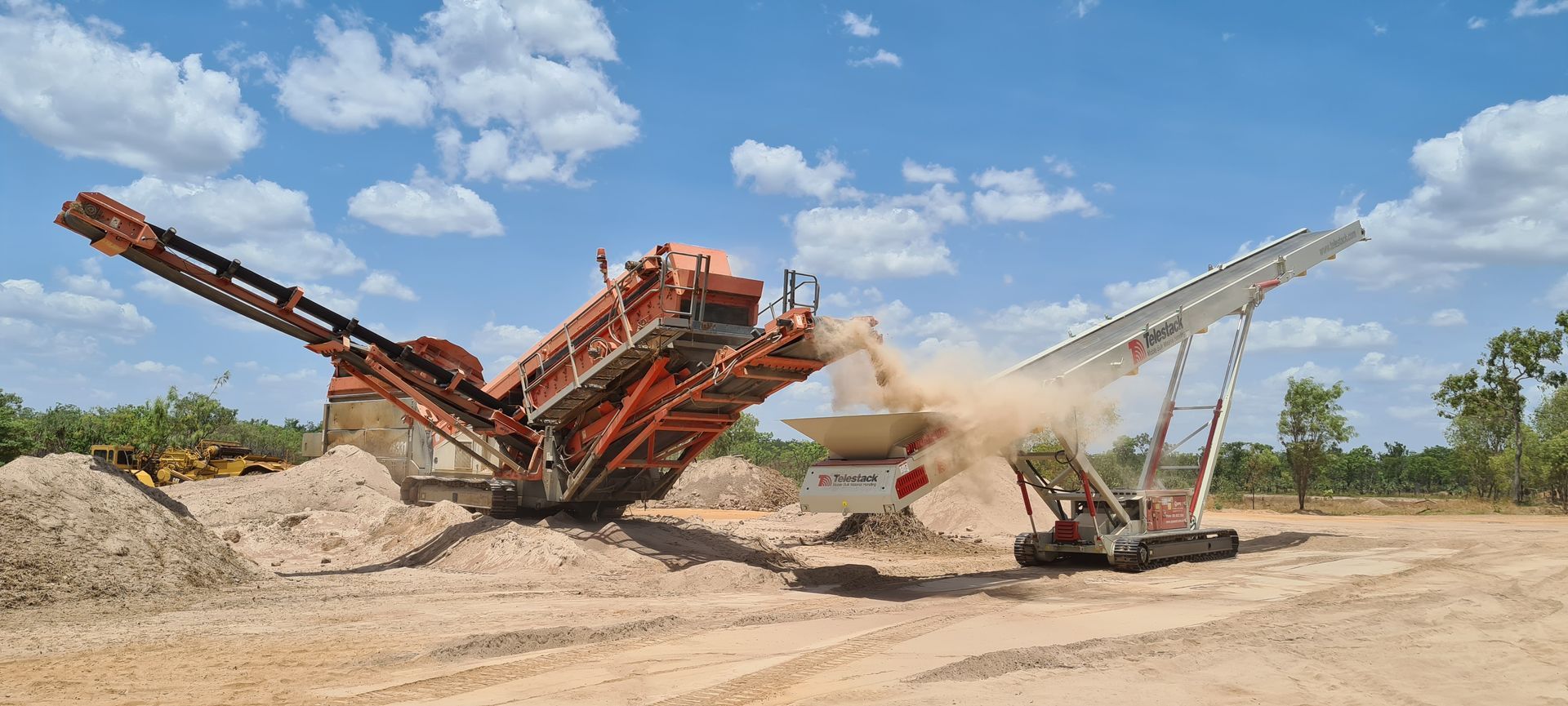

The TC 424X is a track mounted fully mobile conveyor designed to work at production rates of up to 400tph. As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their on board conveyors to increase in size and length to cope with higher tonnages. Track conveyors fulfil this need by providing much larger stockpile capacity and at the same time improve plant mobility by removing material from the processing equipment.

features

Tracked Conveyor
Output Potential 400 tph (440 Ton / hr)
Backed with OPS's Aftermarket Services and support

applications

This is paragraph text.

TEchnical specifications

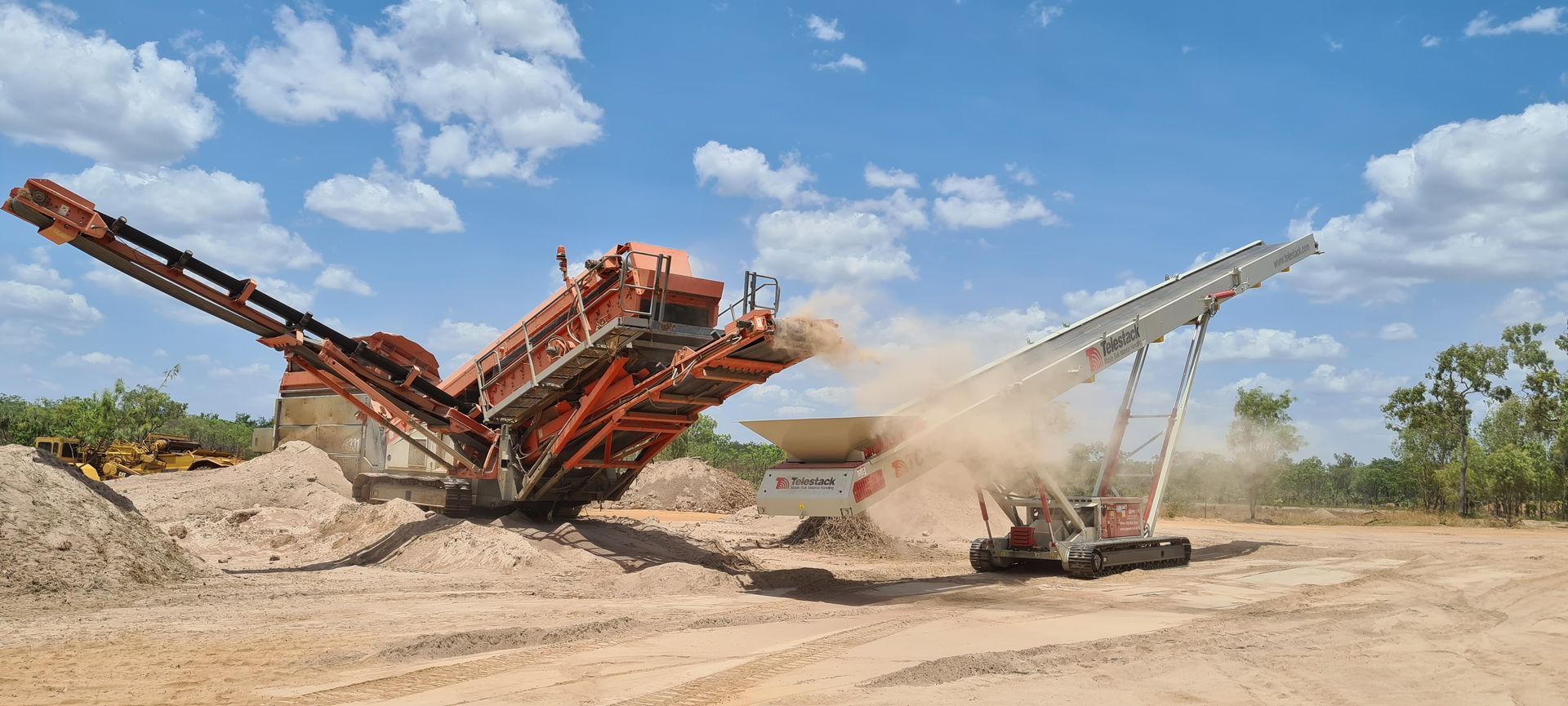

Stockpiling from secondary crushers, screens and shredders.
Stockpiling crushed stone, sand and gravel, mineral ores, mulch, woodchip/biomass.
Stockpiling construction and demolition waste, top soil, coal, grain etc.
Receiving crushed material and stockpiling safely over a quarry face/bench.
Working as part of a mobile system on short to medium term projects.
Ship and truck loading.

High throughput of up to 400 tph (440 Ton / hr)
Maximum distance between tracks and head drum, for optimum stockpiling capacity
Maximum lump feed size of up to 75mm (3")
Front and rear adjustable telescopic to obtain desired discharge or feed in height
Engine protection shutdown system
Counter weight built into feed boot area to give integral strength and stability in working position.

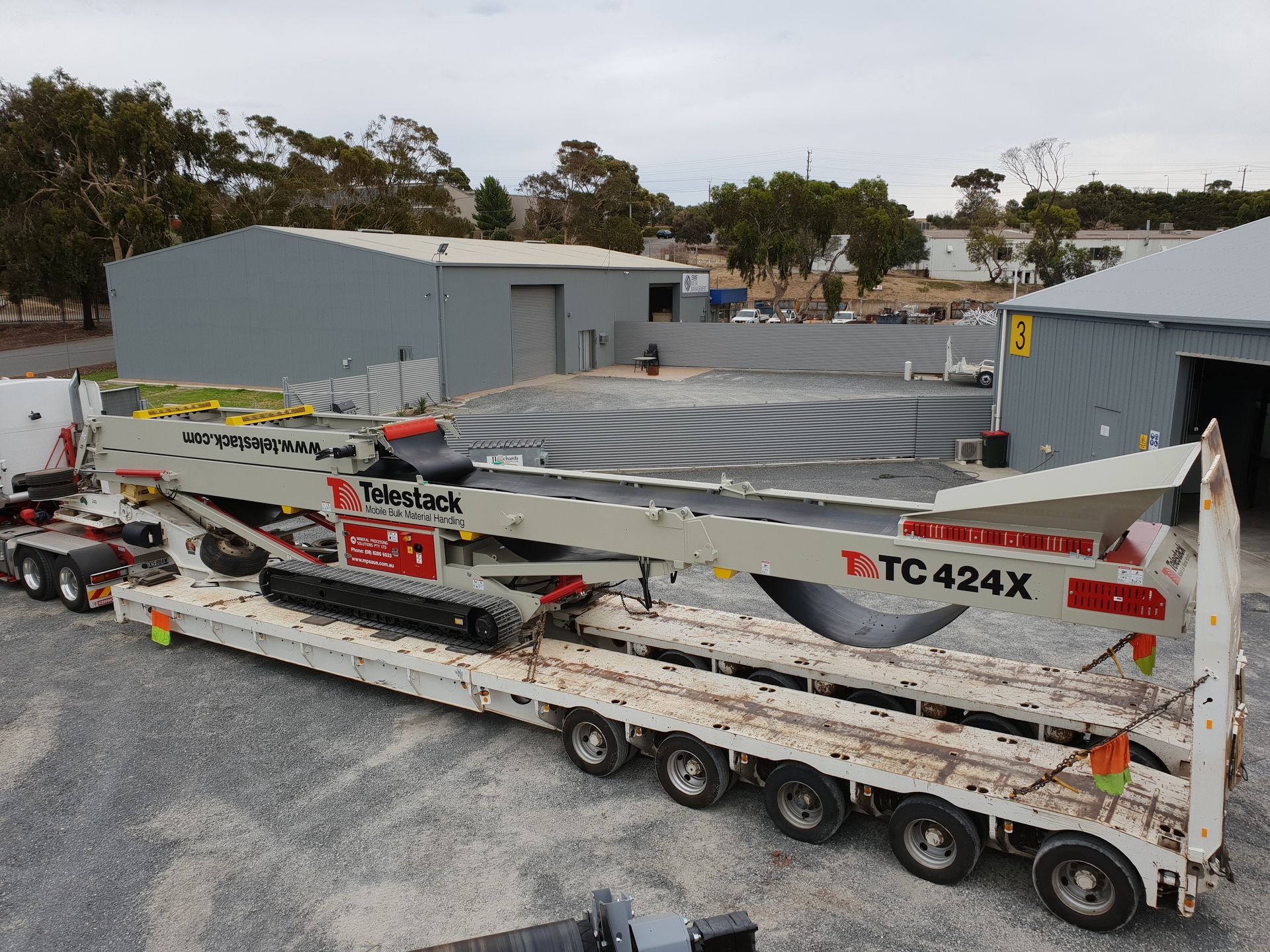

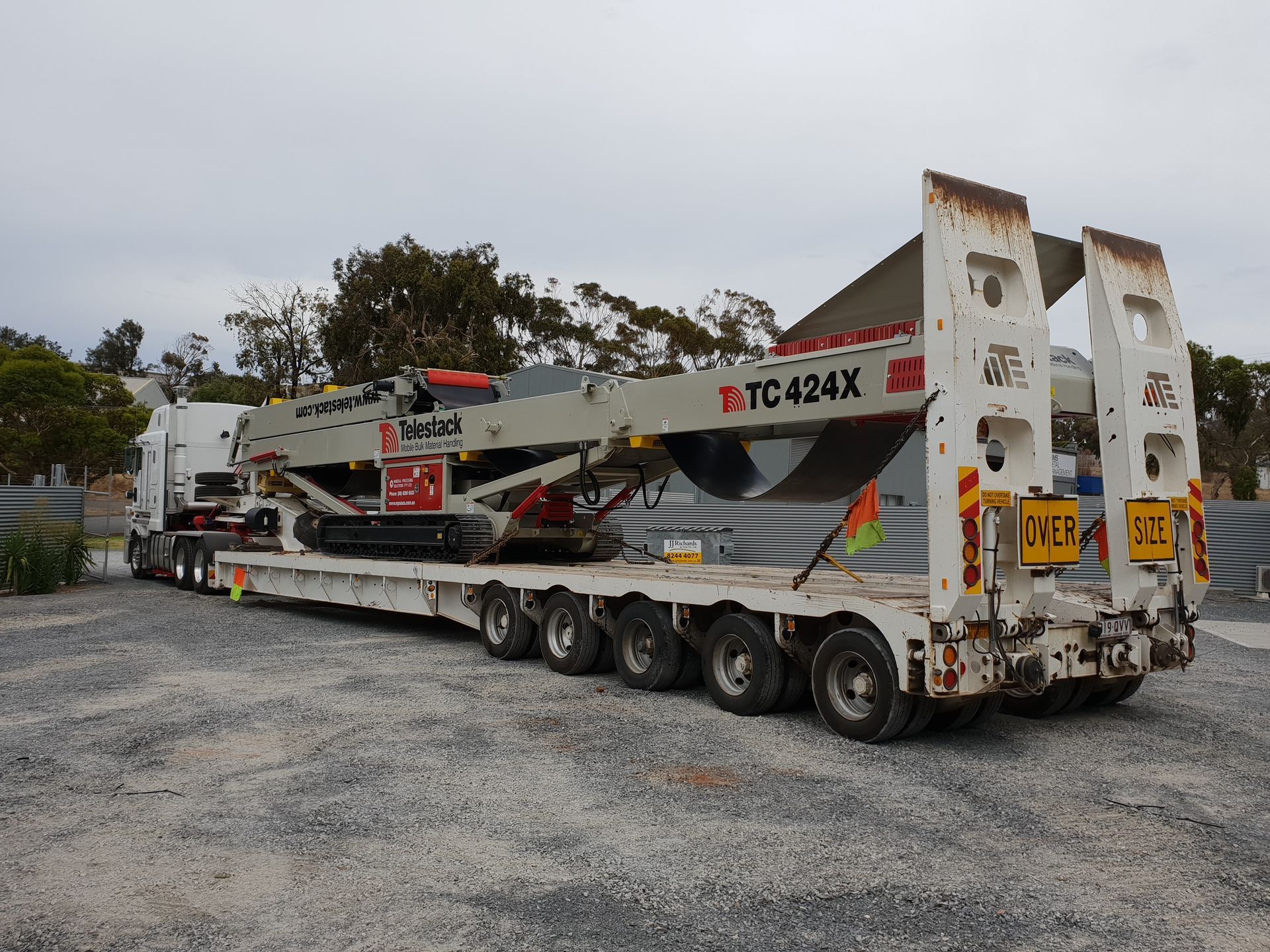

Folding head and tail section for ease of transport
Paint specification, Cream: RAL 7032, Red: RAL 3001
Options available

Removes the need for a dedicated wheel loader to constantly remove material from the crusher, screen or shredder.
Reduces fuel cost by up to 75%
Reduces operating cost by up to 70%
Removing / reducing loading shovel movements reducing operating cost.
Reduces screener idle time increasing production.
Reduces face excavator idle time increasing production.
Production rates of up to 400tph.
Hydraulic folding head section allowing for compact road transportation.
Typical set up time of under 10minutes.
Hydraulic tail section height adjustment whilst at the same time maintaining head drum height ensuring maximum stockpile capacity.
High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion.
