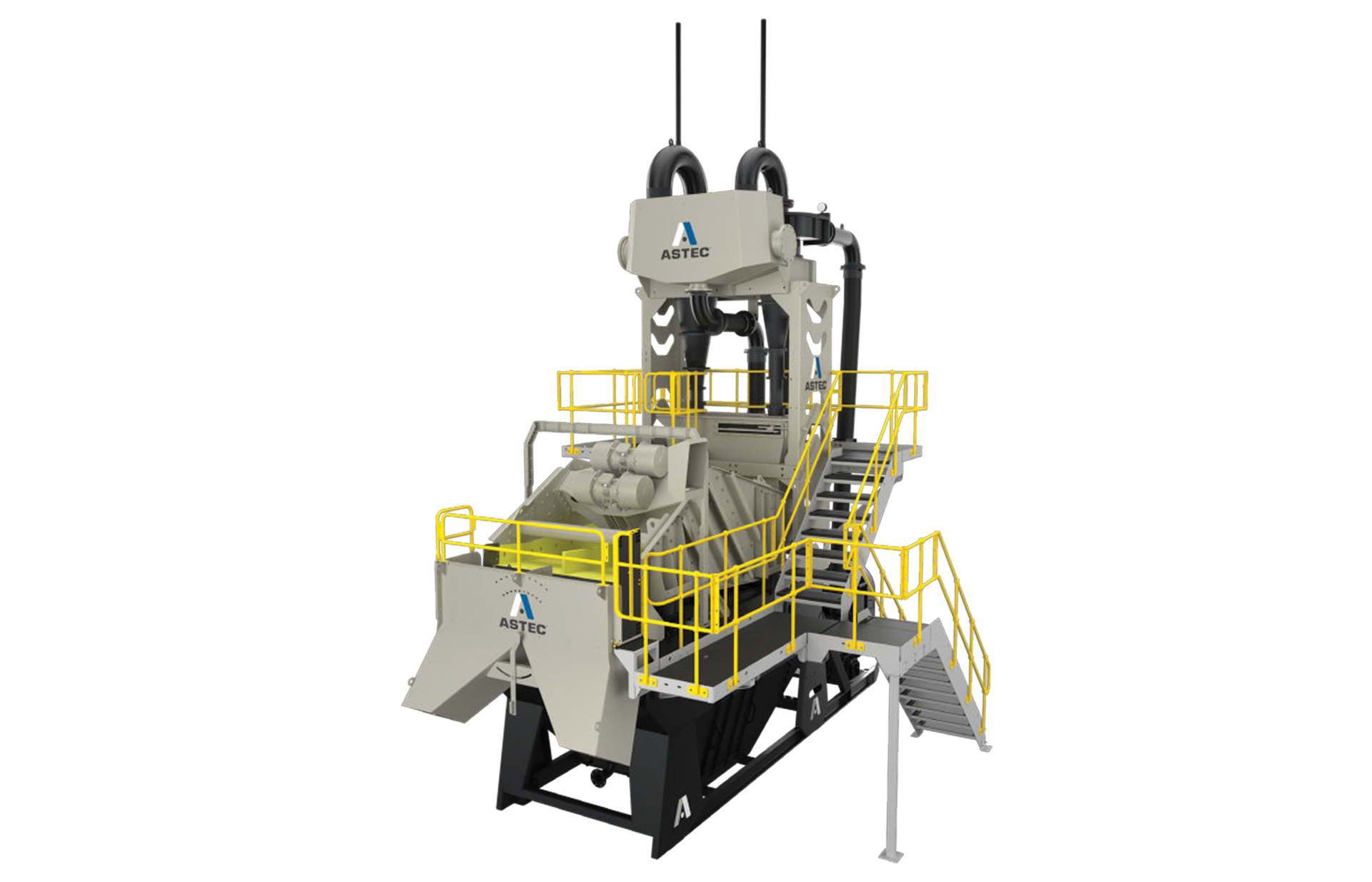

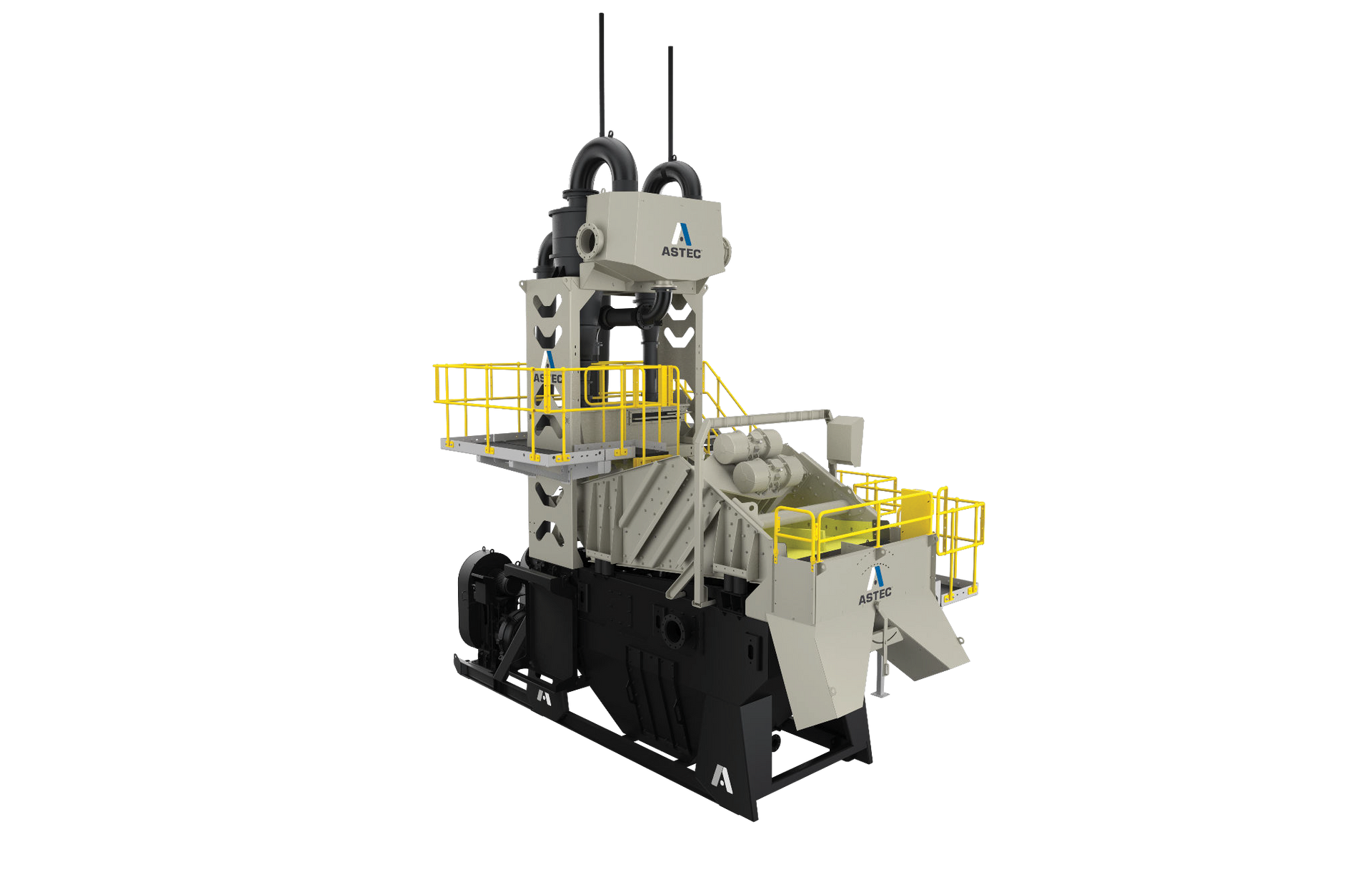

KOLBERG 9225-2G Sand Processing Plant

Astec 9200 Series Sand Plants are engineered for efficient,

high-capacity sand processing, delivering improved classification accuracy and consistent high-specification final products. Designed for medium to large-scale aggregate operations, they are well suited to producing manufactured or natural sand for use in concrete, asphalt, and construction applications.

The system uses a modular wet processing design incorporating cyclones, dewatering screens, slurry pumps, and classification equipment to wash, separate, and recover sand fractions. This removes excess fines, clays, and contaminants while maximising usable material recovery and improving overall product quality.

The Astec 9225 configuration can be supplied in portable,

semi-portable, or stationary layouts, providing flexibility to match site requirements and production demands.

Overall, the 9200 Series delivers reliable sand washing, classification, and dewatering performance, helping operators achieve consistent product quality, reduced waste, and efficient plant operation.

• High capacity production up to 200 mtph (220 US tph) (application dependent)
• Single Grade model also available (9225-1G)
• Safe and easy access to all critical components for service and maintenance
• Screen walkway with handrails and access stairs
• Urethane mesh panel system for high abrasion resistance and longevity

• MANUFACTURED SANDS
• QUARRYING
• NATURAL SAND
• RECYCLING
