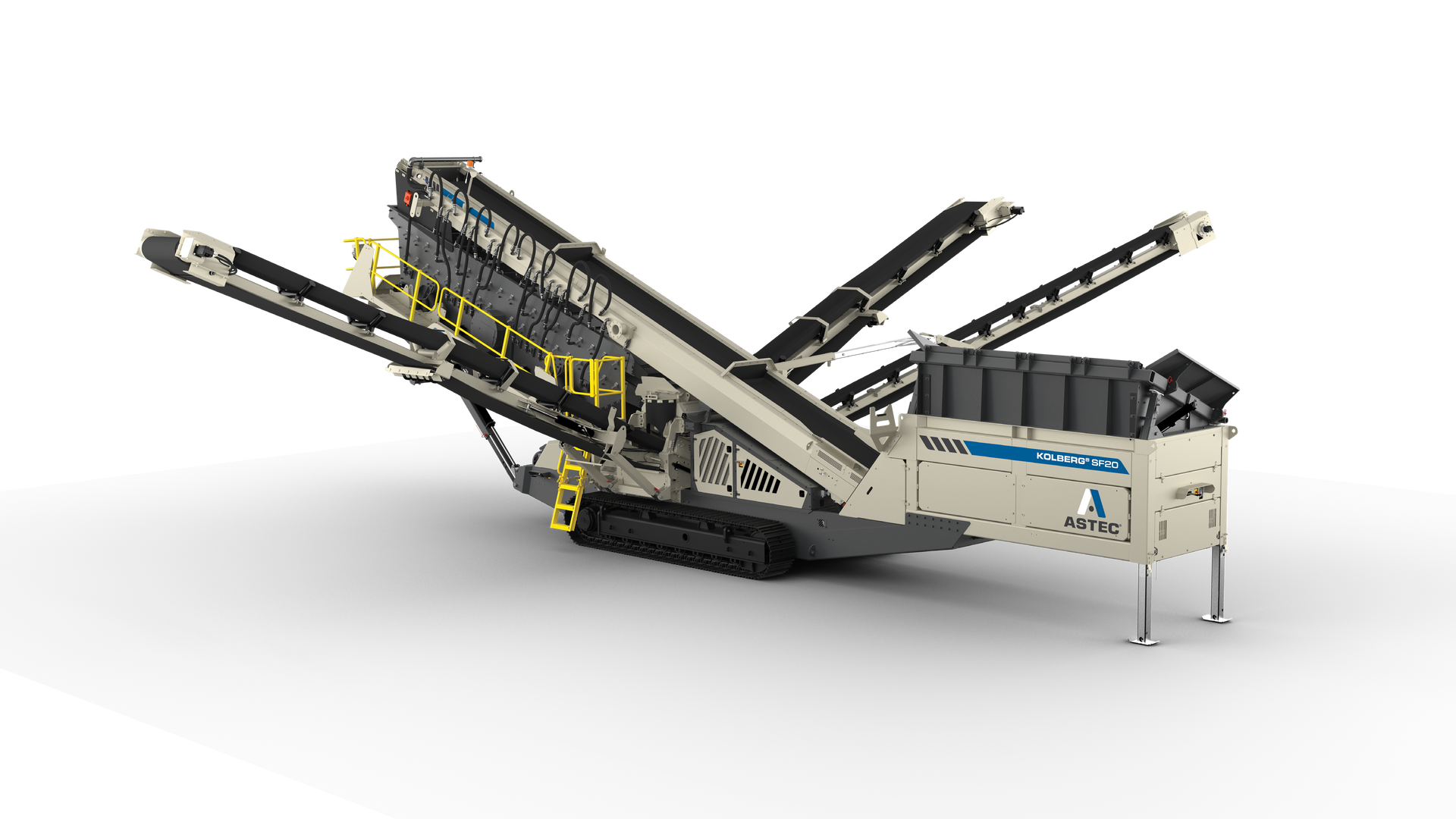

KOLBERG SF20 3D Mobile Incline Rinser Screen

The Kolberg SF20 3D delivers powerful, high capacity washing performance in a flexible, mobile platform built to grow with your operation. Engineered for demanding applications, it features hydraulically folding onboard conveyors and produces up to four premium washed products.

Ideal for medium to large operations, the SF20 3D combines Astec engineered durability, superior throughput, and precise sizing to consistently deliver high spec material and maximize return on investment.

• High capacity up to 600 mtph (661 US tph) (application dependent)
• Maximum feed size 150 mm (6”)
• Class leading power unit output: 100 kW (134 Hp)
• Spare parts commonality across numerous other mobile screen models
• Safe and easy access to all critical components for service and maintenance
• More uptime with class leading fuel tank capacity: 643 L (170 gal)
• Radio controlled tipping grid and belt feeder
• Heavy duty incline screen box with adjustable stroke, angle and speed
• Class leading screen box bearing size
• Screen walkway with handrails and access ladder
• Hydraulically folding and adjustable conveyors with maximized stockpile capacity
• Reversible cross (transfer) conveyor
• Hydraulic raise/lower of head section for mesh access
• Telematics system provided as standard
• Dual sand capabilities with adjustable blending flaps to make in-spec sand
• Sand underpan lined with 5mm rubber for less wear and longer life.

• CRUSHED STONE
• SAND & GRAVEL
• RECYCLING
